Firmware Backup and Upload: Allows for the firmware to be saved,
or for an existing firmware file to be uploaded to the Switch.

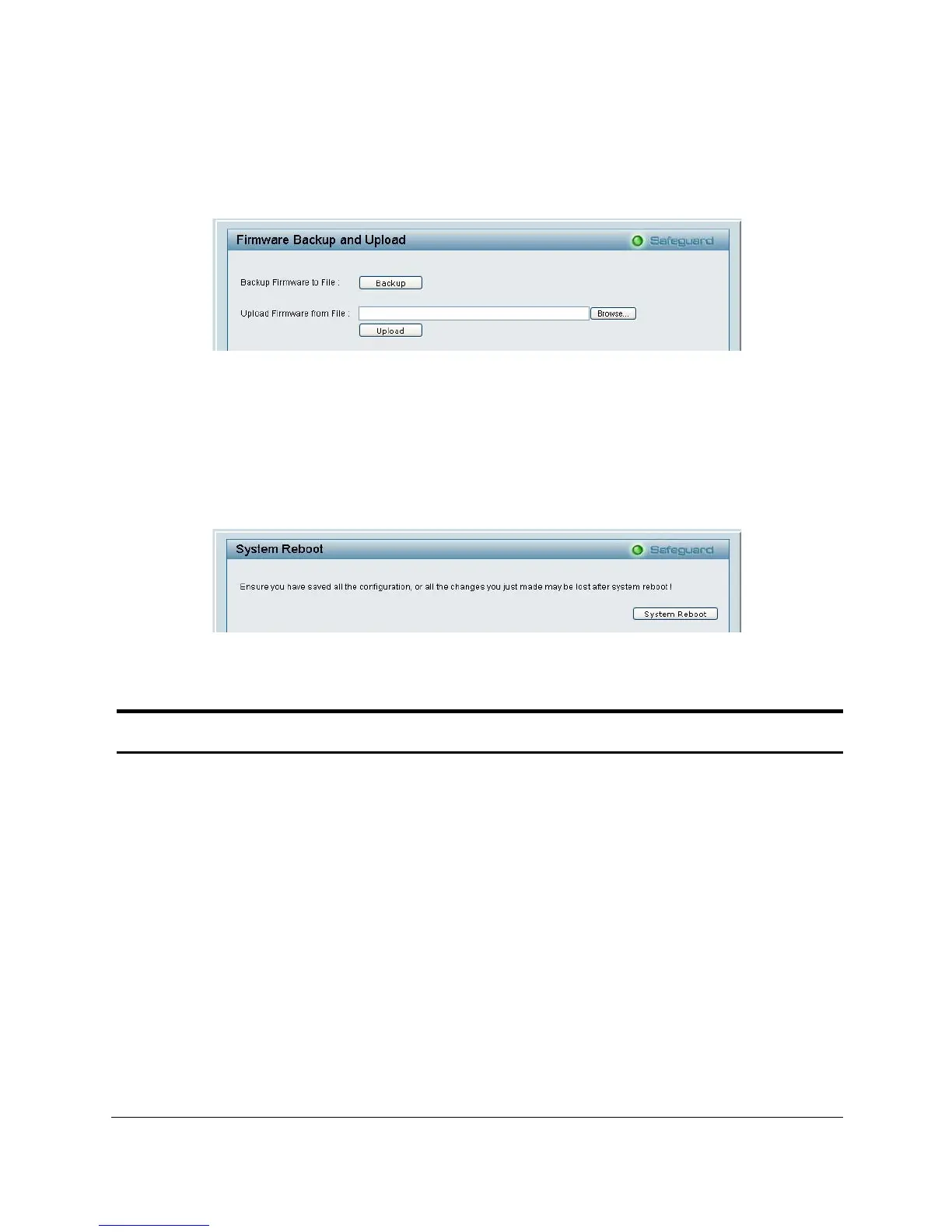

Figure 20 – Tool Menu > Firmware Backup and Upload
System Reboot: Provides a safe way to reboot the system. Ensure the
configuration has been saved, or all the changes you just made may be
lost after system reboot.
Figure 21 – Tool Menu > System Reboot
Setup Menu
All configuration options on the switch are accessed through the Setup
menu on the left side of the screen (Figure 24). Click on the setup item
that you want to configure. The following sections describe in more
detail each of the features and functions.
