D-Link DGS-1510 Series Getting Started Guide

3
ENGLISH

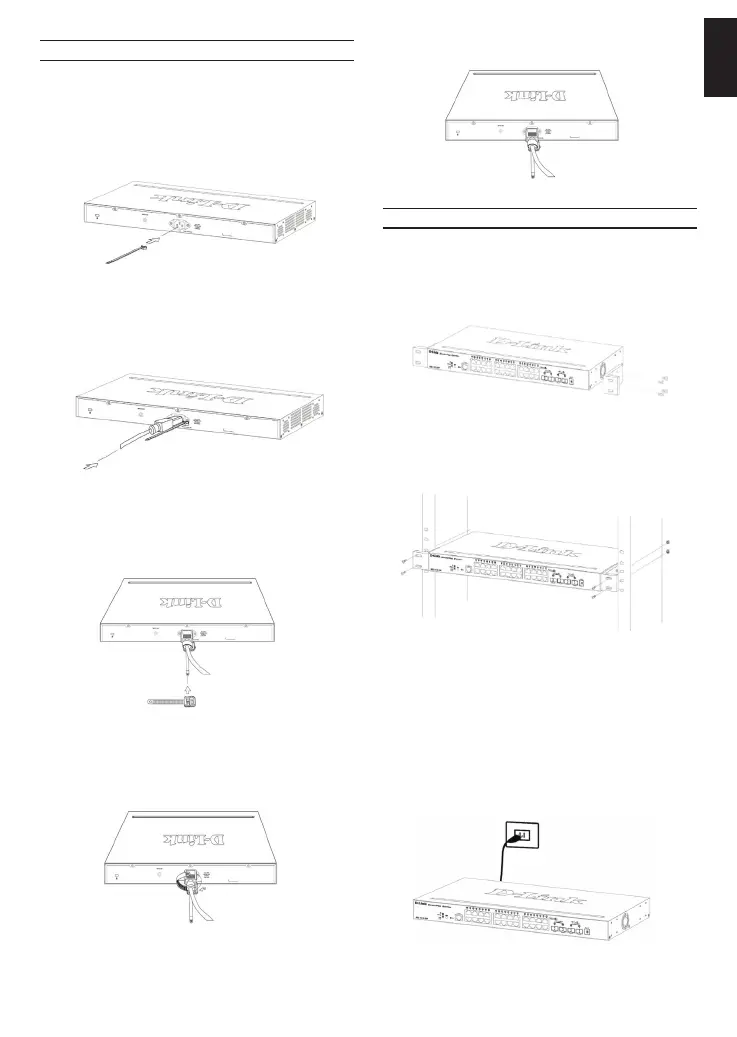

5. Fasten the tie of the Retainer until the power cord is
secured.
Figure 3-5. Secure the power cord
Rack Installation
The switch can be mounted in an EIA standard size
19-inch rack, which can be placed in a wiring closet with
other equipment. To install, attach the mounting brackets
to the switch’s side panels (one on each side) and
secure them with the screws provided.
Figure 4. Attaching the mounting brackets
Then, use the screws provided with the equipment rack
to mount the switch in the rack.
Figure 5. Installing the switch in a standard-sized
equipment rack
Step 3 – Plugging in the AC
Power Cord
You can now connect the AC power cord into the rear of
the switch and to an electrical outlet (preferably one that
is grounded and surge protected).
Figure 6. Plugging the switch into an outlet
Installing Power Cord Retainer
To prevent accidental removal of the AC power cord, it is
recommended to install the power cord retainer together
with the power cord.
1. With the rough side facing down, insert the Tie Wrap
into the hole below the power socket.
Figure 3-1. Insert Tie Wrap to the Switch
2. Plug the AC power cord into the power socket of the
Switch.
Figure 3-2. Connect the power cord to the Switch
3. Slide the Retainer through the Tie Wrap until the end
of the cord.
Figure 3-3. Slide the Retainer through the Tie Wrap
4. Circle the tie of the Retainer around the power cord
and into the locker of the Retainer.
Figure 3-4. Circle around the power cord

D-Link DGS-1510 Series Specifications

General

Layer	Layer 2+
IGMP Snooping	Yes
Static Routing	Yes
Humidity	10% to 90% non-condensing
Series	DGS-1510
Type	Smart Managed Switch
VLAN Support	Yes
QoS	Yes
Management	Web-based, CLI, SNMP
Power Supply	Internal
MAC Address Table	16K entries
802.3ad Link Aggregation	Yes
Spanning Tree Protocol (STP)	Yes, STP/RSTP/MSTP
Jumbo Frame Support	Yes, up to 9KB
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
