D-Link DPR-1020 User Manual

Unix/Linux Printing
D-Link DPR-1020 - User Manual 152

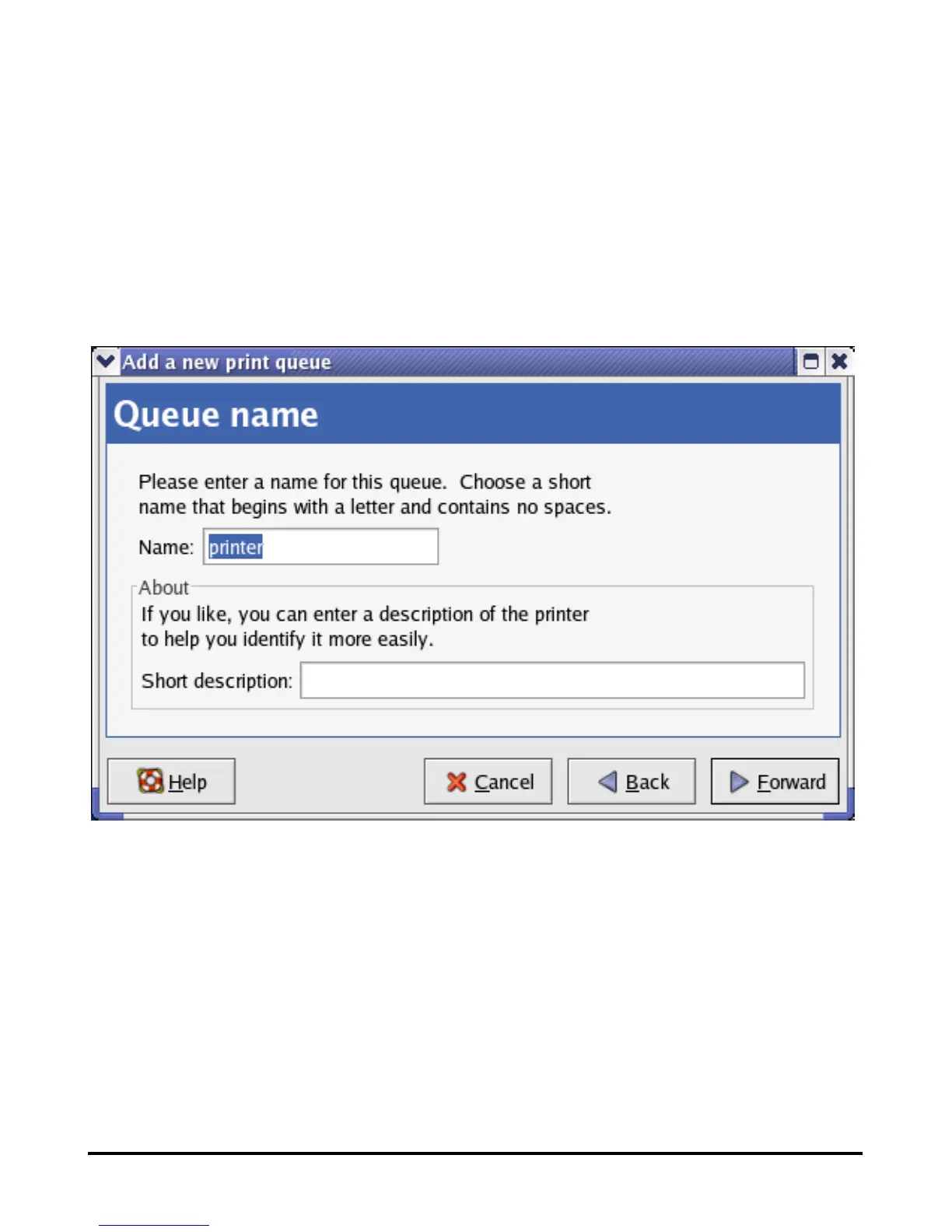

6. Enter a unique name for the printer in the Name text field. The printer name
cannot contain spaces and must begin with a letter. The printer name may contain
letters, numbers, dashes (-), and underscores (_). Optionally, enter a short
description for the printer, which can contain spaces. Then click Forward to enter
Queue type window.
7. Select Networked UNIX (LPD) in the Select a queue type drop-down list, enter
the IP address of the print server to which the printer is attached in the Server field,
and type the port name in Queue field. Click Forward to select the type of printer.

D-Link DPR-1020 Specifications

General

Networking standards	IEEE 802.3, IEEE 802.3u
Network connection type	Ethernet LAN
Dimensions (WxDxH)	67 x 106 x 25 mm
Power requirements	5.0V DC/2.5A
Compatible operating systems	Windows Vista/XP/2000/NT4/ME/98SE/95 Apple Mac OS 9.x - MAC OS X 10.4.x Linux UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) NetWare 5.x
DC-in jack	Yes
USB 2.0 ports quantity	1
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Certification	FCC Class B, CE, C-Tick, IC, CSA
Package depth	225 mm
Package width	150 mm
Package height	75 mm
Package weight	520 g

Weight and Dimensions

Depth	106 mm
Width	67 mm
Height	25 mm
Weight	77 g
