D-Link DPR-1020 User Manual

Setting up Printing in Mac OS X Tiger (10.4.9)
D-Link DPR-1020 - User Manual 161

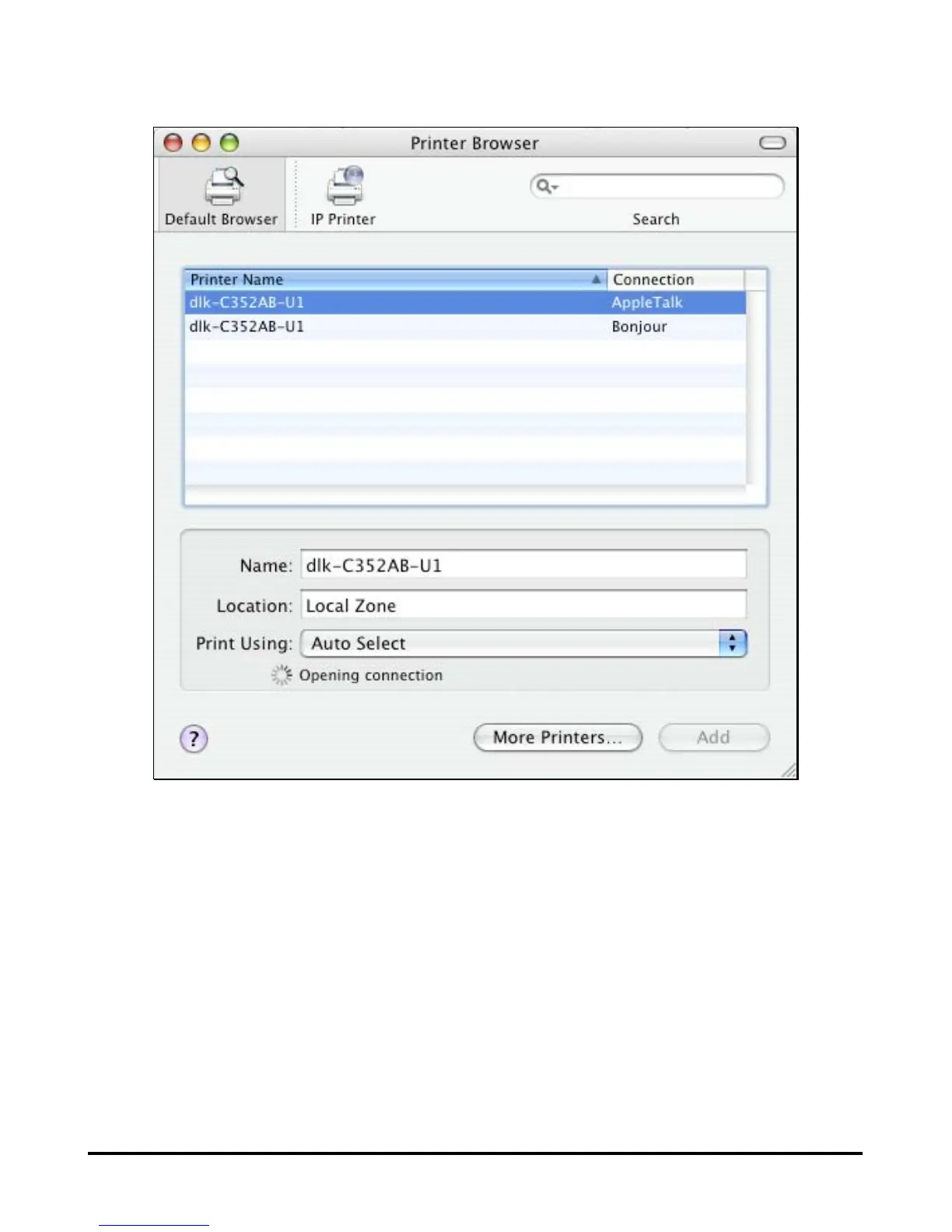

Select the printer model from Printer Name list and Connection type in the Printer
Browser menu. The printer name selected should be the same as that appearing
listed in the Printer Server’s web manager. In the example here, the printer name is
dlk-C352AB-U1. By default the Printer Browser will use Auto Select for Print
Using. This may also be manually selected in the Print Using drop-down list box by
brand and model. Click the Add button to exit the Printer Browser window and
implement the new setting.

D-Link DPR-1020 Specifications

General

Networking standards	IEEE 802.3, IEEE 802.3u
Network connection type	Ethernet LAN
Dimensions (WxDxH)	67 x 106 x 25 mm
Power requirements	5.0V DC/2.5A
Compatible operating systems	Windows Vista/XP/2000/NT4/ME/98SE/95 Apple Mac OS 9.x - MAC OS X 10.4.x Linux UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) NetWare 5.x
DC-in jack	Yes
USB 2.0 ports quantity	1
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Certification	FCC Class B, CE, C-Tick, IC, CSA
Package depth	225 mm
Package width	150 mm
Package height	75 mm
Package weight	520 g

Weight and Dimensions

Depth	106 mm
Width	67 mm
Height	25 mm
Weight	77 g
