D-Link DSL-2640B User Manual

Web Configuration
D-Link DSL-2640B User Manual 104

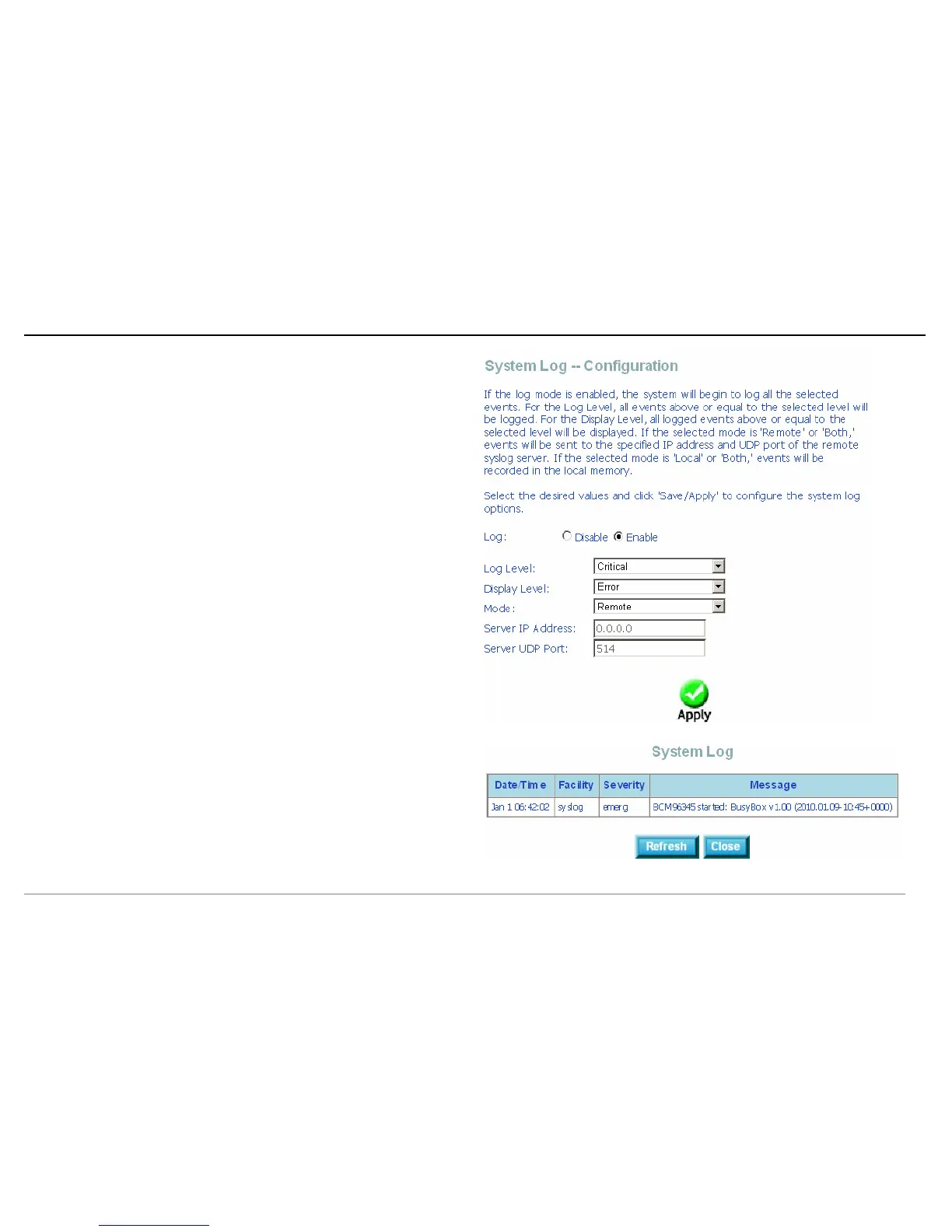

If you select Remote or Both, all events are transmitted to the specified UDP port of
the specified log server.
After operations under Configure System Log, click View System Log to query the
system logs. In this example, the View System Log is the default.
Note: The log and display of the system events are above the set level. If you
intend to record all information, you need to set the levels as Debugging.
Click Refresh to refresh the system event logs or click Close to exit from this page.

D-Link DSL-2640B Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz -60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b transfer rates	11, 5.5, 2, and 1 Mbps
IEEE 802.11g transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	four RJ-45 ports
Ethernet connection type	10/100BASE-T
