D-Link DSL-2750E User Manual

DSL-2750E User Manual
8
Ethernet, DSL, or both. Technical information about the properties of your
Internet connection is provided by your Internet service provider (ISP). For
example, your ISP should inform you whether you are connected to the Internet
using a static or dynamic IP address, or the protocol, such as PPPoA or PPPoE,
that you use to communicate over the Internet.

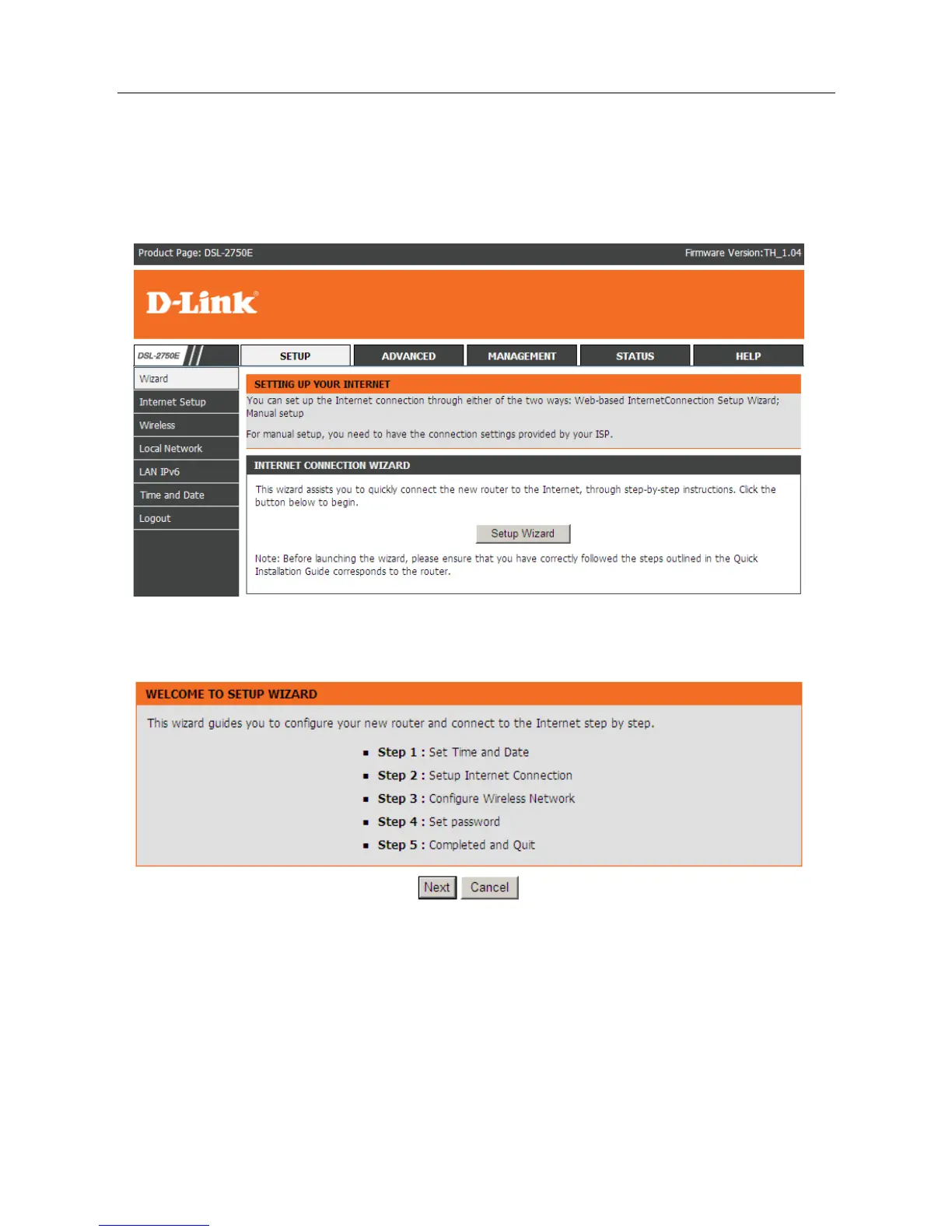

Click Setup Wizard. The page shown in the following figure appears.
There are 5 steps to configure the device. Click Next to continue.
Step 1 Set the time and date.

D-Link DSL-2750E Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	RJ-45 port for 10/100BASE-T Ethernet connection
