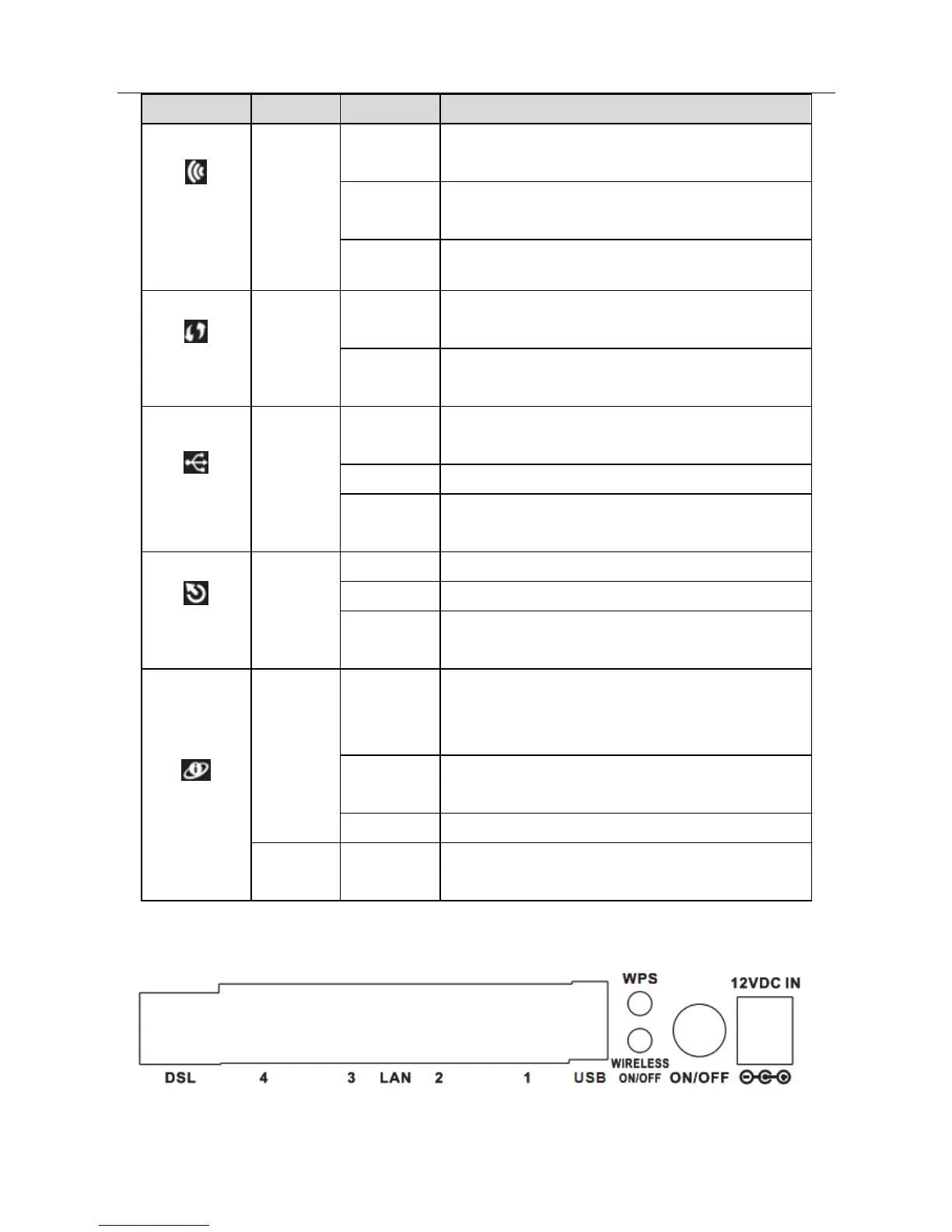

LED Color Status Description
WLAN
Green
Blinks
Data is transmitted through the WLAN
interface.
On
The connection of WLAN interface is
normal.
Off The WLAN connection is not established.
WPS
Blue
Blinks
WPS negotiation is enabled, waiting for
the clients.
Off
WPS negotiation is not enabled on the
device.
USB
Green
On
The connection of 3G or USB flash disk
has been established.
Blinking Data is being transmitted.
Off
The connection of 3G or USB flash disk
is not established.
DSL
Green
Off Initial self-test is failed.
Blinks The device is detecting itself.
On
Initial self-test of the unit has passed and
is ready.
Internet
Green
Off
The device is under the Bridge mode,
DSL connection is not present, or the
power is off.
Blinks Internet data is being transmitted in the
routing mode.
On The IP is connected.
Red On
The device is attempted to become IP
connected, but failed.
Rear Panel
Figure 2 Rear panel

D-Link DSL-2750E Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	RJ-45 port for 10/100BASE-T Ethernet connection
