DSL-2750E User Manual
65

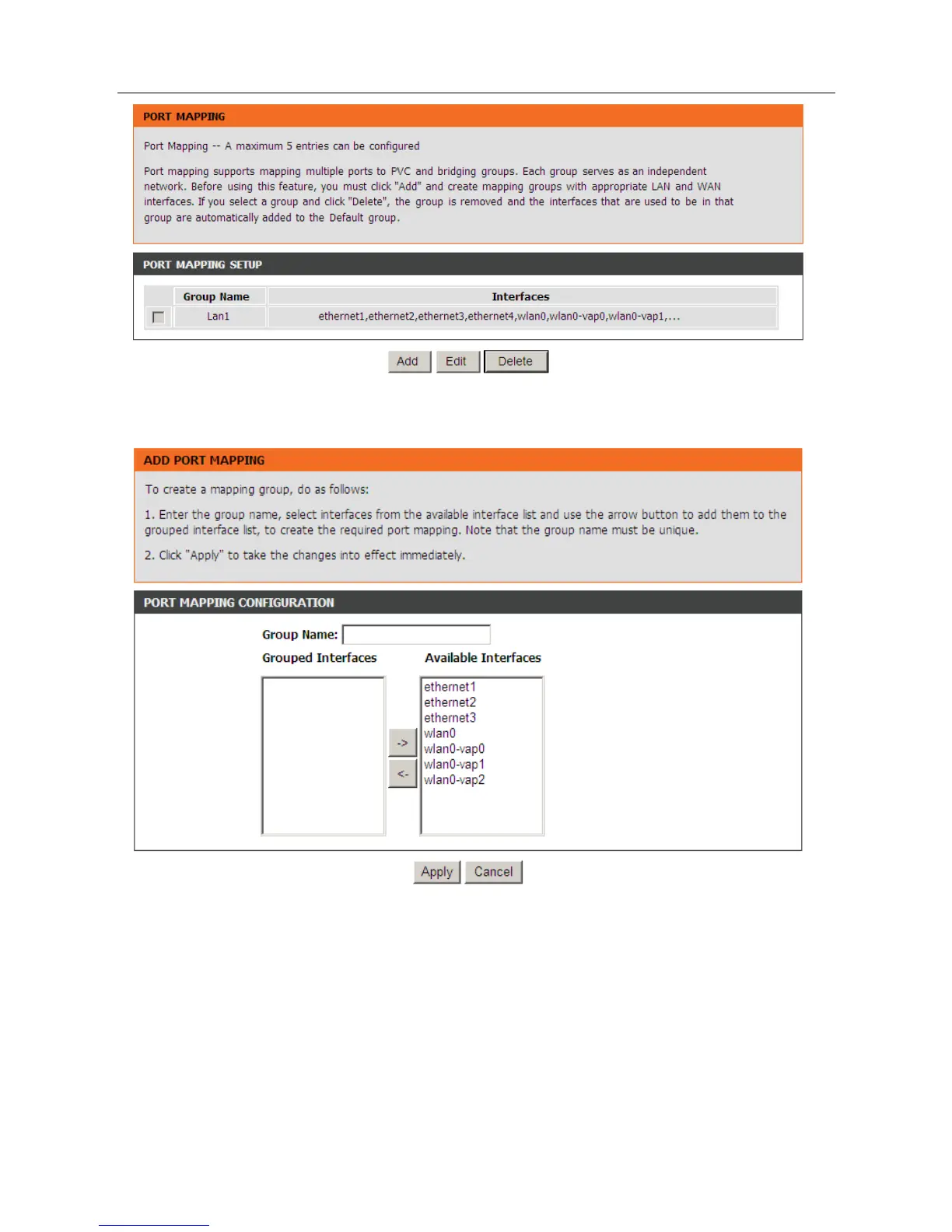

Click Add to add port mapping. The page shown in the following figure appears.
The procedure for creating a mapping group is as follows:
Step 1 Enter the group name.
Step 2 Select interfaces from the Available Interface list and click the <-
arrow button to add them to the grouped interface list, in order to
create the required mapping of the ports. The group name must be
unique.
Step 3 Click Apply to save the settings.
