D-Link DSL-2750E User Manual

DSL-2750E User Manual
88

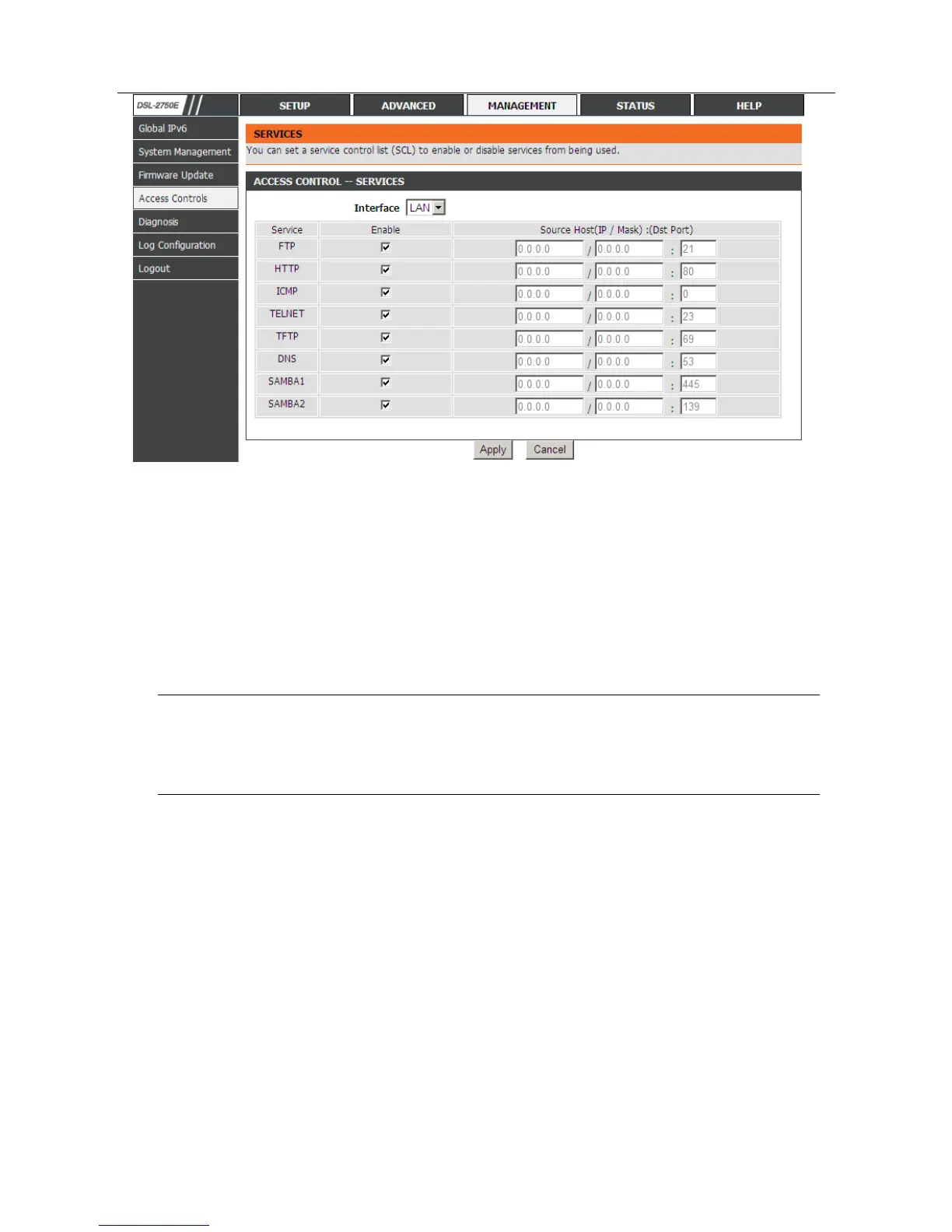

In this page, you can enable or disable the services that are used by the remote
host. For example, if telnet service is enabled and port is 23, the remote host can
access the device by telnet through port 23. Normally, you need not change the
settings.
Select the management services that you want to enable or disable on the LAN
or WAN interface. Click Apply to apply the settings.
Note:
If you disable HTTP service, you cannot access the configuration
page of the device any more.
3.4.4.3 IP Address
In the Access Controls page, click IP Address. The page shown in the following
figure appears.

D-Link DSL-2750E Specifications

ADSL Standards

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface	RJ-45 port for 10/100BASE-T Ethernet connection
