38D-Link DSL-3900 User Manual
Section 4 - Conguration

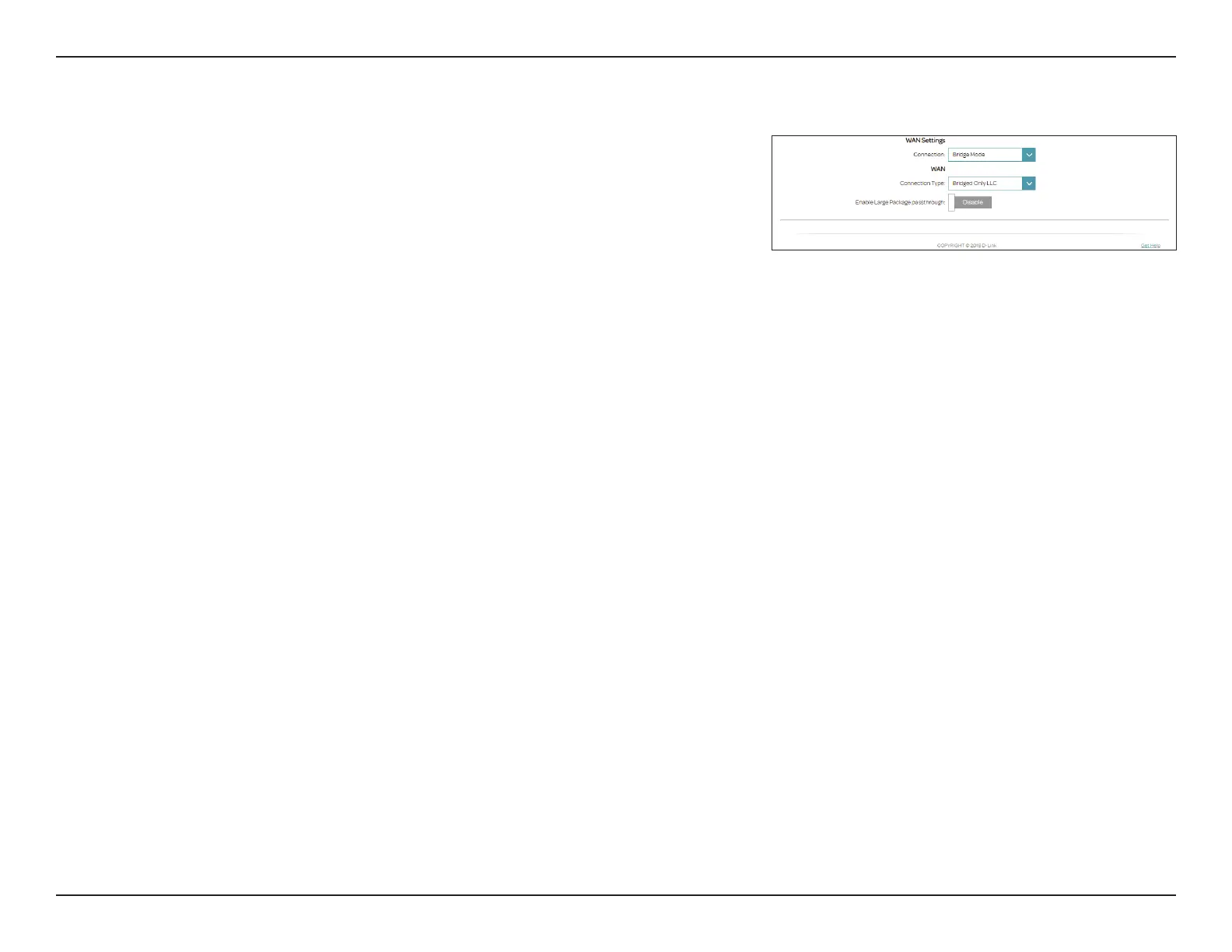

Bridge Mode
Select Bridge Mode to use the DSL-3900 as a network bridge.
WAN Settings
Connection: Select Bridge.
WAN
Connection Type: Select from Bridged Only LLC or Bridged Only VC-Mux.
Enable Large
Package
passthrough
Enable or disable Large Package passthrough.
Click Save when you are done. You will need to connect and congure
another device to connect to your ISP.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DSL-3900 and is the answer not in the manual?

D-Link DSL-3900 Specifications

General IconGeneral
Ethernet WANYes
SIM card slot-
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)2600 Mbit/s
WLAN data transfer rate (first band)800 Mbit/s
WLAN data transfer rate (second band)1753 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports4
Security algorithmsWPA, WPA2
Processor cores2
Weight and Dimensions IconWeight and Dimensions
Depth45.5 mm
Width258.8 mm
Height184.1 mm
