D-Link DSL-3900 User Manual

64D-Link DSL-3900 User Manual
Section 4 - Conguration
Management
Time

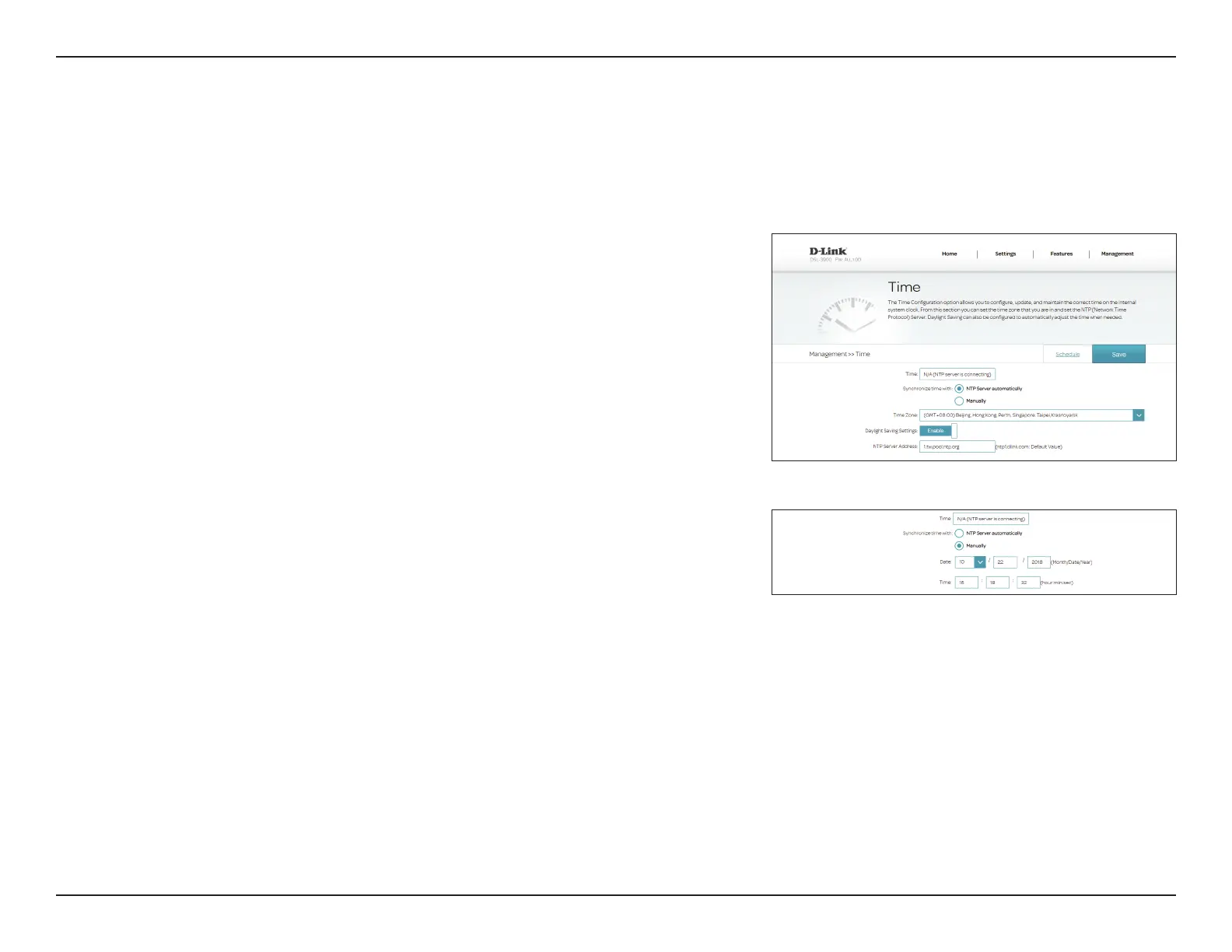

The Time page allows you to congure, update, and maintain the correct
time for the internal system clock. From here you can set the time zone, the
Network Time Protocol (NTP) server, and enable or disable daylight saving
time. To access this page, click Time & Schedule from the Management
menu on the bar on the top of the page.
Time: Displays the current date and time of the router.
Synchronize time
with:
Select either NTP Server automatically or Manually
If you selected NTP Server automatically, the following options are available:
Time Zone: Select your time zone from the drop-down menu.
Daylight Saving: Enable or disable daylight saving time.
NTP Server
Address:
Enter the NTP server address. The default is ntp1.dlink.com. Adding
a second server is optional.
If you selected Manually, the following options are available:
Date: Enter the Month, Date, and then year here.
Time: Enter the time (24-hour format) here.
Time & Schedule

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
