D-Link DSL-3900 User Manual

39D-Link DSL-3900 User Manual
Section 4 - Conguration

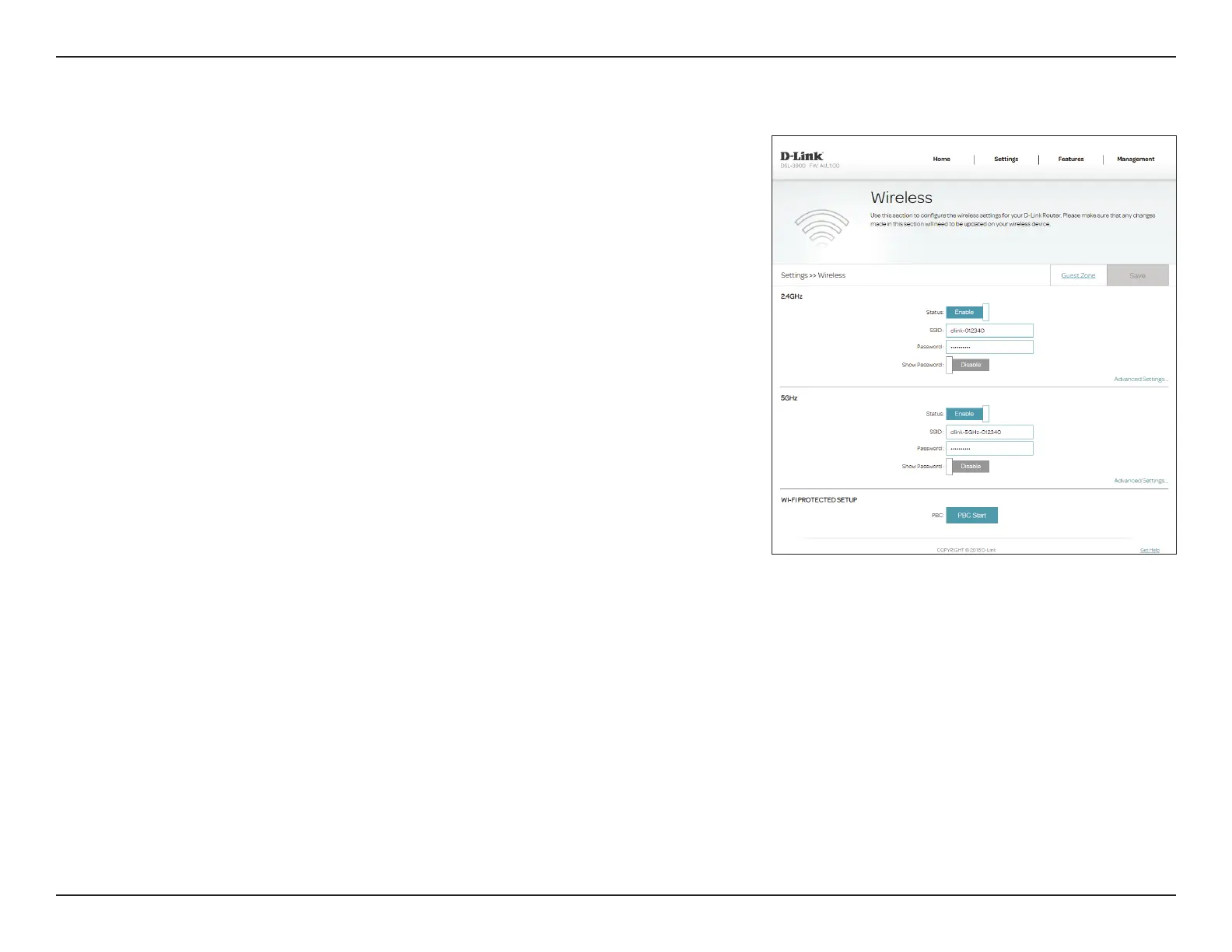

From this page you can congure your wireless network settings. To access this
page, click Wireless from the Settings menu on the bar on the top of the
page.
2.4 GHz
Status: Enable or disable the 2.4 GHz wireless network.
SSID: Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Show Password: Enable or disable to show the password on the screen.
5 GHz
Status: Enable or disable the 5 GHz wireless network.
SSID: Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Show Password: Enable or disable to show the password on the screen.
Wi-Fi Protected Setup
PBC Start: This triggers the WPS pairing process. Refer to WPS Button on page
83 for more information about WPS.
Click Save when you are done. The following pages describe the Advanced
Settings conguration options in detail.
Wireless

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
