Section 5 - Connect and Share a USB Device

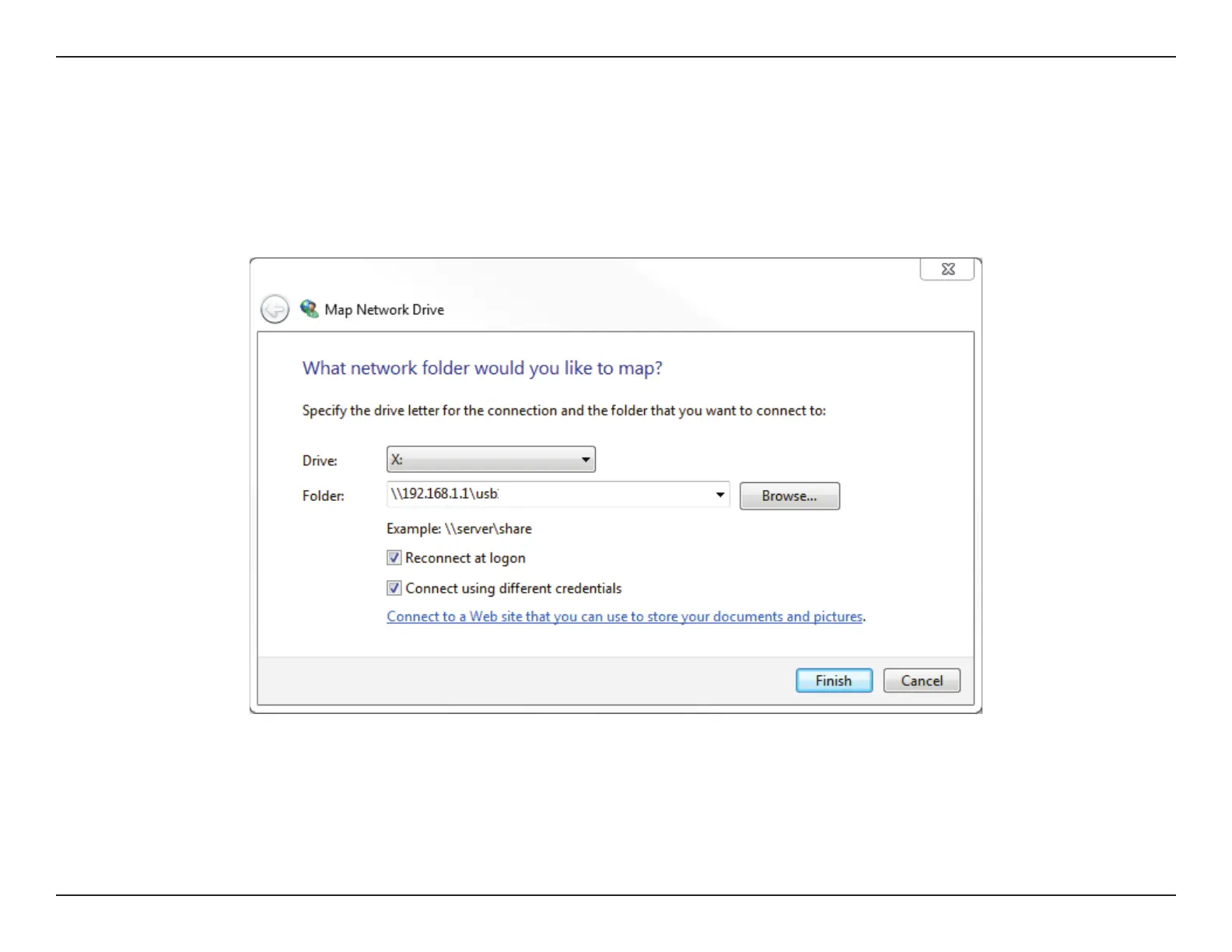

Step 3 - Select the drive letter you wish to map your network drive to. Enter the DSL-3900’s IP address and the name of the
USB volume you wish to share. For example \\192.168.1.1\usb.
Check the boxes Reconnect at logon and Connect using dierent credentials.
Click Finish.
If you have multiple USB storage devices attached via a USB hub, click USB Device from the Home section of the DSL-3900’s
Web Conguration utility for a list of available volume names.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
