Section 6 - Connecting to a Wireless Network

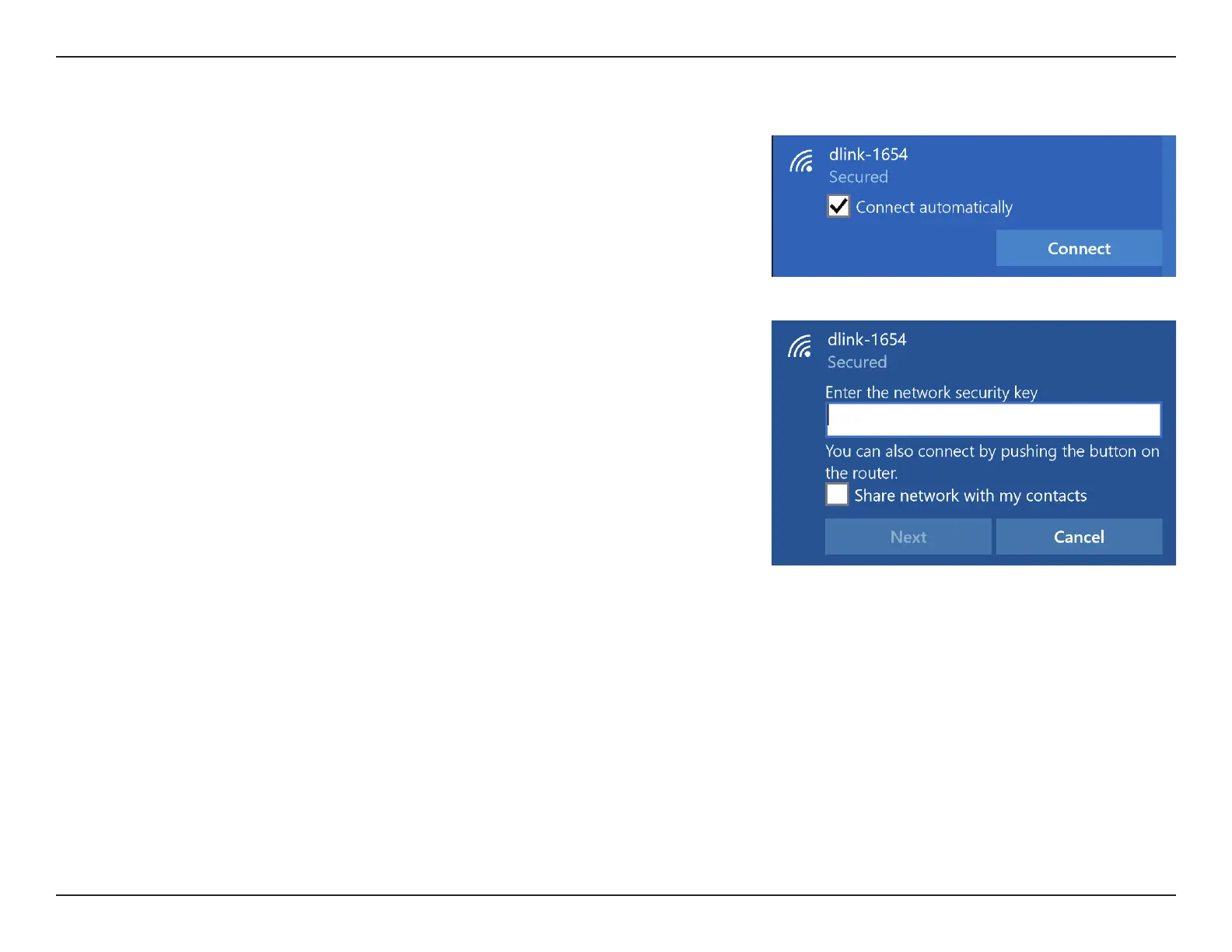

To connect to the SSID, click Connect.
To automatically connect with the router when your device next detects the
SSID, click the Connect Automatically check box.
You will then be prompted to enter the Wi-Fi password (network security key)
for the wireless network. Enter the password into the box and click Next to
connect to the network. Your computer will now automatically connect to this
wireless network when it is detected.
You can also use Wi-Fi Protected Setup (WPS) to connect to the router.
Press the WPS button on your D-Link device and you will be automatically
connected.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
