DVG-5004S User’s Manual Telephone Interface Description
D-Link Systems, Inc. 6

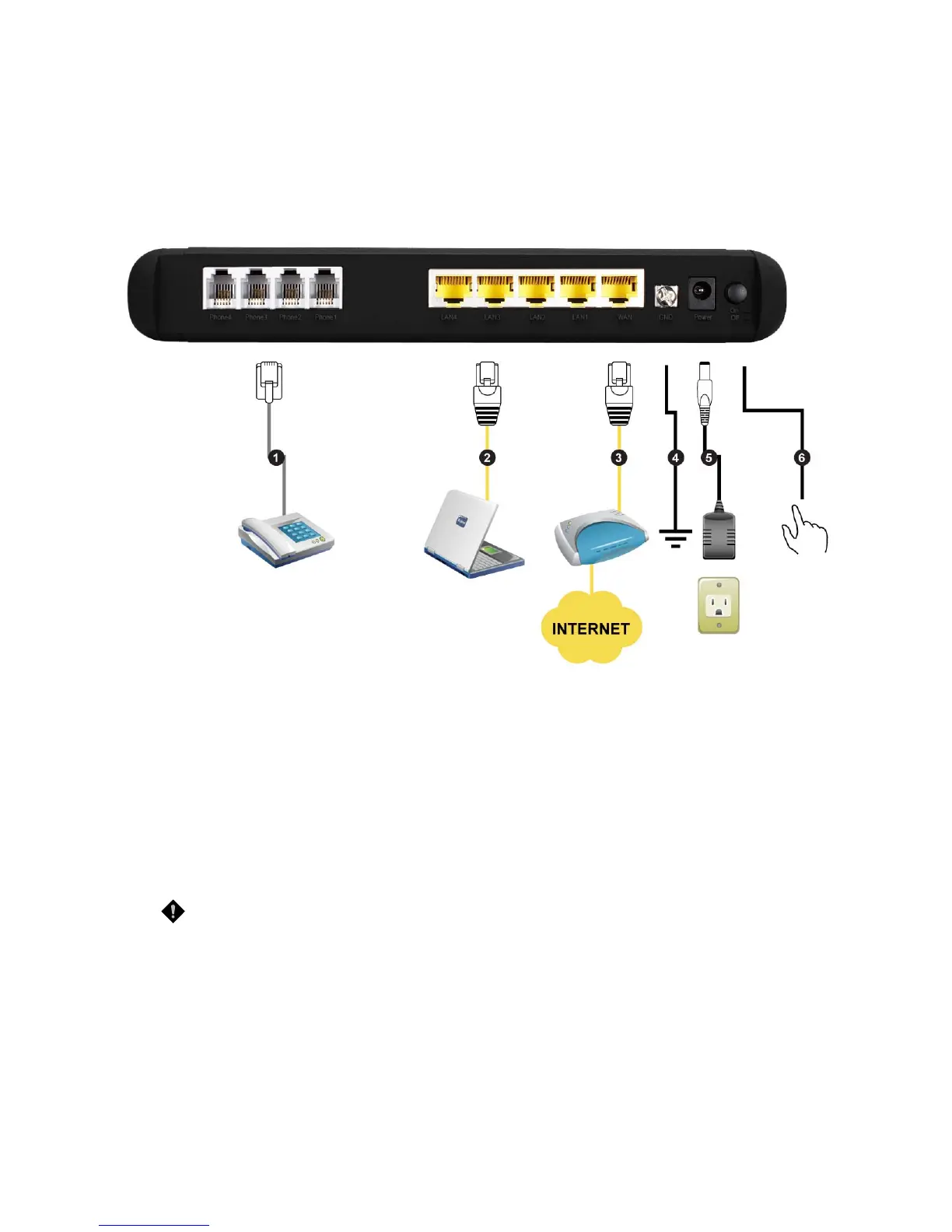

Rear Panel
1. Phone Port (1-4): Connect to your phones using standard phone cabling (RJ-11).
2. LAN: Connect to your Ethernet enabled computers using Ethernet cabling.
3. WAN: Connect to your broadband modem using an Ethernet cable.
4. Ground: A conducting connection with the earth. Connect with the ground so as to make the earth a
part of an electrical circuit using metal wire.
5. Power Receptor: Receptor for the provided power adapter.
6. Power Switch: Press it down to turn on DVG.
WARNING: DO NOT (1) connect the phone ports to each other (FXS to FXS) or (2) connect any
phone port directly to a PSTN line (FXS to PSTN) or to an internal PBX line (FXS to PBX extension).
Doing so may damage your VoIP Router.
