DVG-N5412SP User’s Manual SETUP
D-Link Systems, Inc. 41

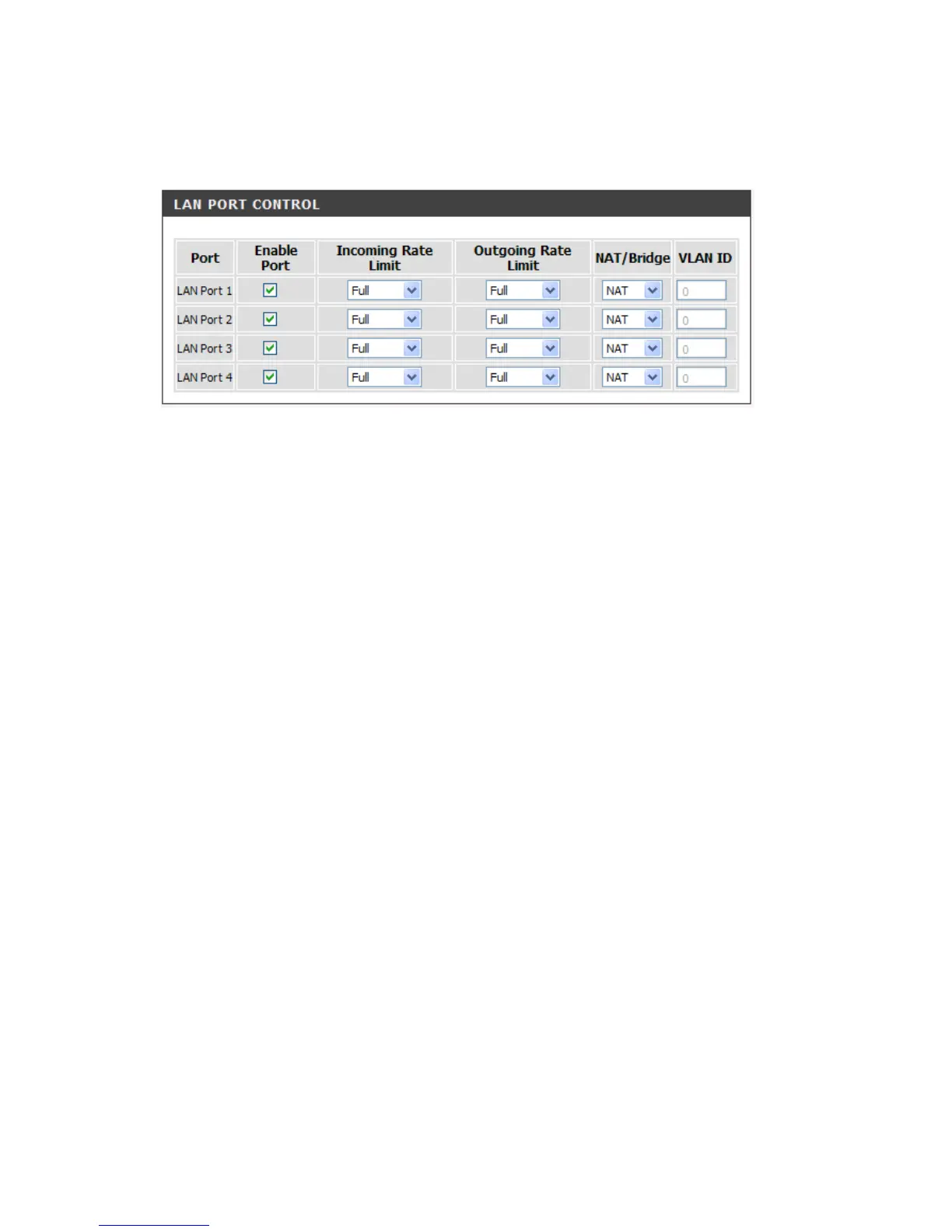

SETUP → LAN Setup
Enable Port: It is to active/des-active LAN port physical connection.
Incoming Rate Limit: Set the incoming (from LAN to WAN) rate limit of a specific LAN port (can not
exceed the real downstream bandwidth).
Outgoing Rate Limit: Set the outgoing (from WAN to LAN) rate limit of a specific LAN port (can not exceed
the real upstream bandwidth).
NAT/Bridge: Select the VoIP Router serving as a Router with NAT or Bridge between WAN port and LAN
port without NAT.
Note: If you set a LAN port to be bridge mode that the LAN port will be bundled with WAN. If you would
like to connect to DVG-N5412SP at the bridged LAN port you must enter WAN port IP.
VLAN ID: Assign a VLAN ID for DVG-N5412SP to transit traffic through-out at WAN port for WAN-LAN
bridge mode. The packets are un-tagged at LAN port and added tag at WAN port.
Note: It is not allowed to change VLAN ID for NAT mode LAN ports. The VLAN ID of NAT LAN ports
are bundled with WAN 1 which assigned at Internet Setting page. The packets are un-tagged at LAN
port and added tag at WAN port.
