DVG-N5412SP User’s Manual Telephone Interface Description
D-Link Systems, Inc. 5
1-2 Hardware Description

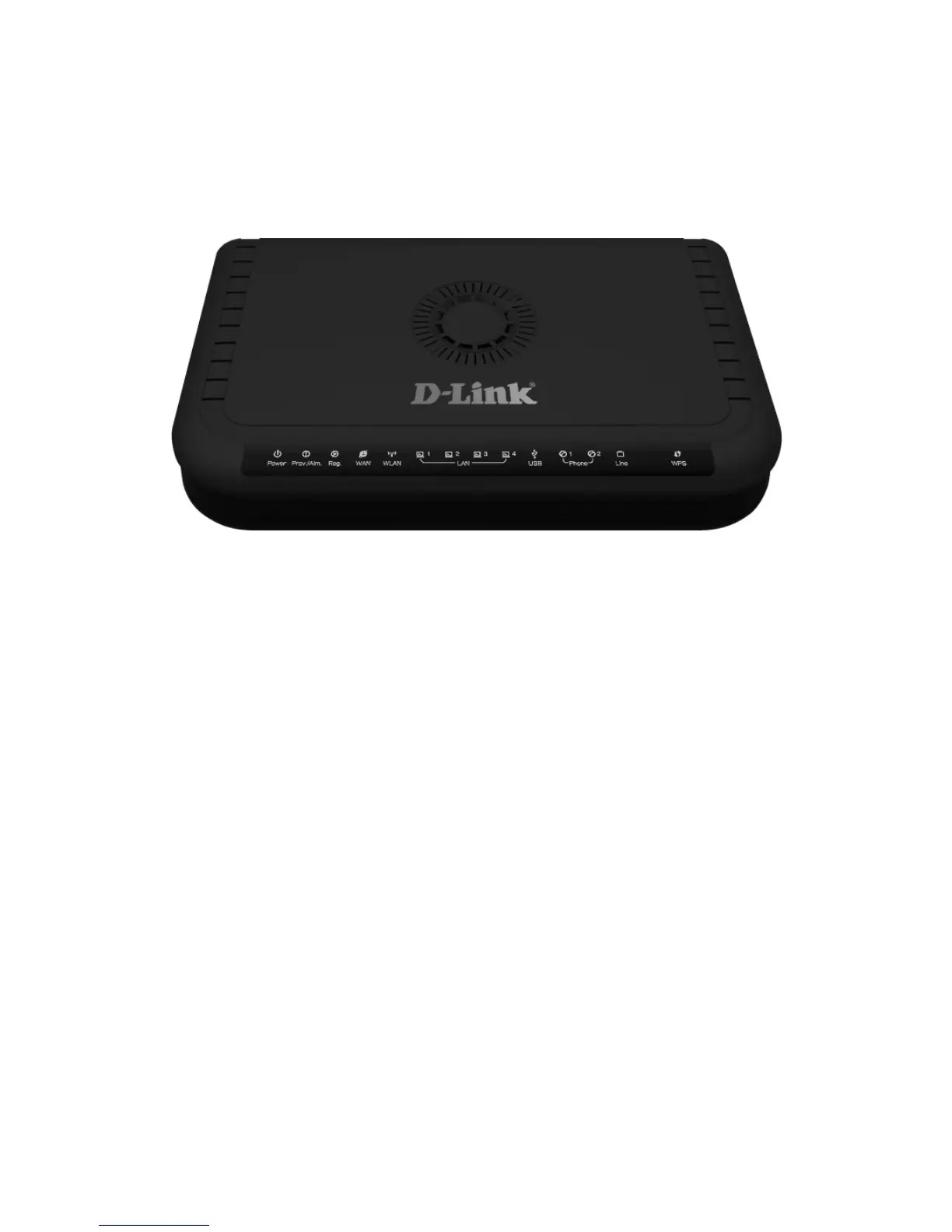

Front Panel
Power: Power LED. A steady light indicates a proper connection to a power source.
Prov./Alm.: A blinking light indicates the DVG-N5412SP can not register with SIP Server or can not get the
IP address. A blinking light also indicates the DVG-N5412SP is attempting to connect with the Provisioning
server. Once the service connects, the LED will turn off. The LED will light solid red if the self-test or boot-up
fails.
Reg.: The Register LED will turn on and continuously working when DVG-N5412SP is connected to a VoIP
service provider. The LED will flash if not connected to a service provider.
WAN: When a connection is established the LED will light up solid. The LED will blink to indicate activity. If
the LED does not light up when a cable is connected, verify the cable connections and make sure your
devices are powered on.
WLAN: A steady light indicates a wireless connection. A blinking light indicates that the VoIP Router is
receiving/transmitting from/to the wireless network.
LAN: When a connection is established the LED (bottom) will light up solid on the appropriate port. The
LEDs will blink to indicate activity. If the LED does not light up when a cable is connected, verify the cable
connections and make sure your devices are powered on.
USB: This indicates that DVG-N5412SP detects a supported 3G modem dungle or a USB device.
Phone: This LED displays the VoIP status and Hook/Ringing activity on the phone port that is used to
connect your normal telephone(s). If a phone connected to a phone port is off the hook or in use, this LED
will light solid. When a phone is ringing, the indicator will blink.
Line: Light on means the line is in use (off-hook), and vice versa.
WPS: Flashing in blue as DVG-N5412SP processing WPS-PBC wireless connecting progress.
