1.3 Modules

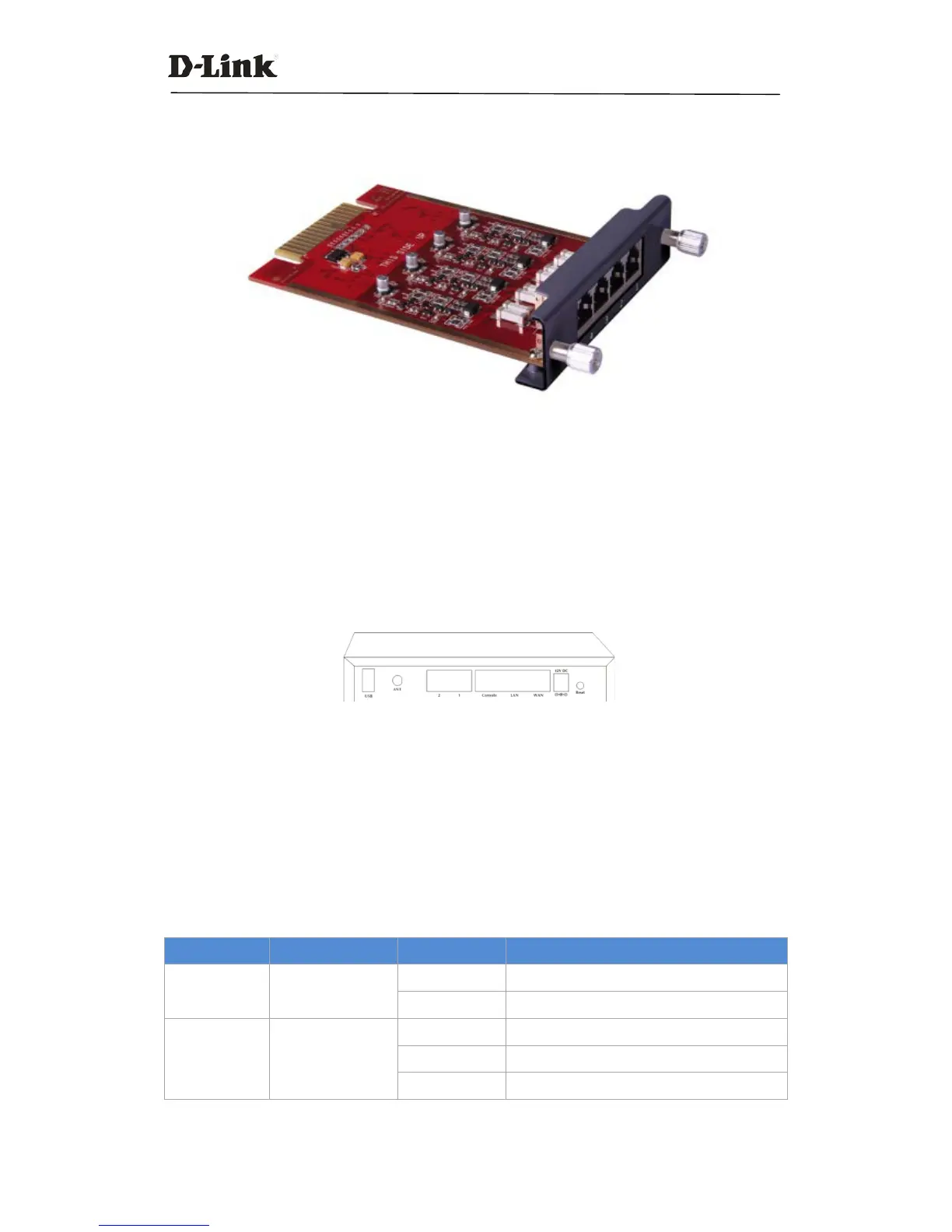

DVX-2020 Module (for DVX-2005F)
1.4 Mechanical Design
1.4.1 DVX-2002F
DVX-2002F Rear Panel
1 * Reset Button
1 * Power Interface (DC 12V 2A)
2 * Ethernet Interface (WAN/LAN:10/100Mbps)
2 * Analog Ports(FXO/FXS)
1 * ANT Port (GSM)
1 * USB Interface (for storage)
1 * Console Interface
2002F LED Indication
LED Label Function Status Indication
PWR Power Status On Power on
Off Power off
SYS System Status On System initiating
Blink System is functioning
Off System failure
