DVX IPPBX
128 / 130

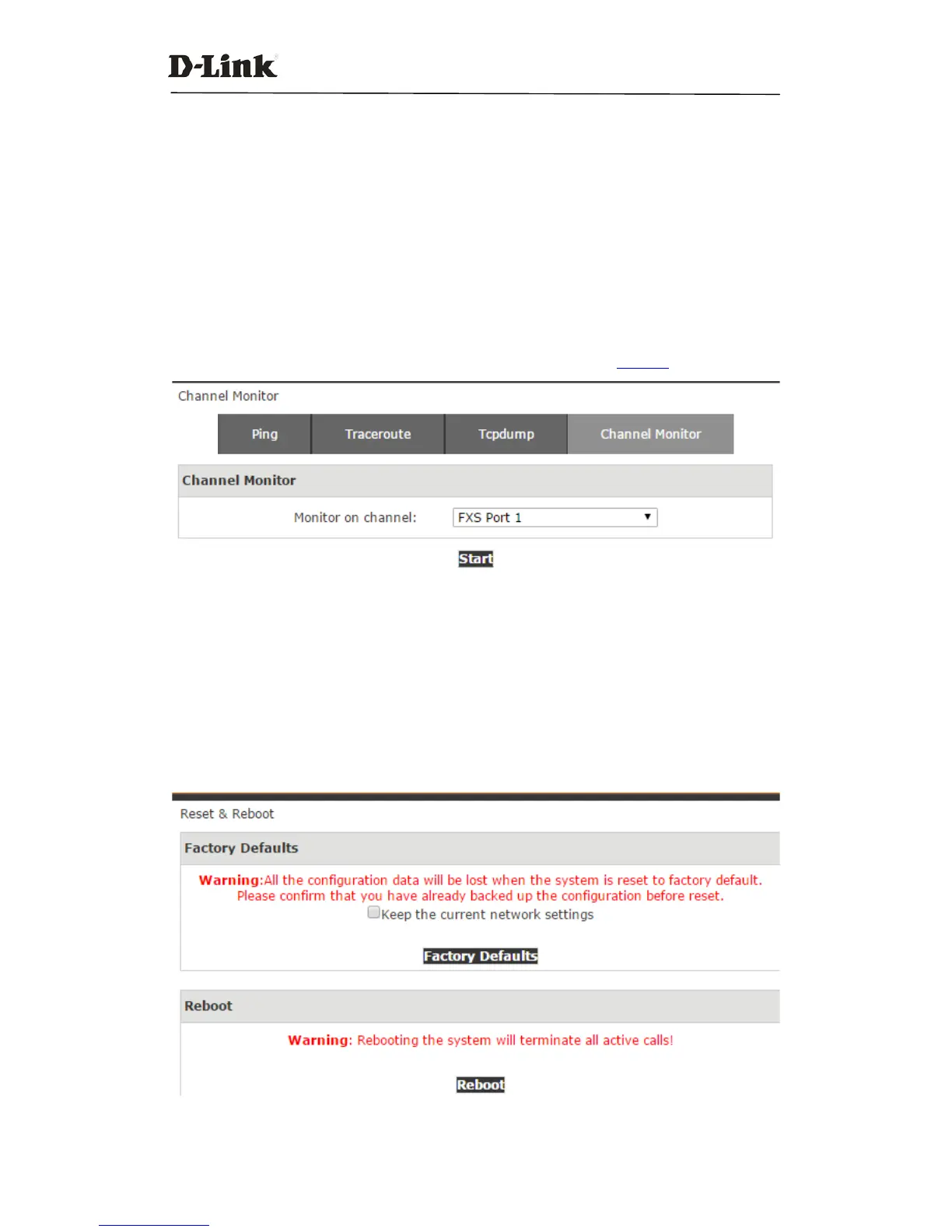

8.5.4 Channel Monitor
Channel Monitor, technically DAHDI Monitor allows you to monitor signal level on analog channel
and record the output to a file. Recorded audio files are by default raw signed linear PCM. You
can play it to the speaker to listen to the phone call signaling on the analog channel. Or you can
use a sounds editor to visual display the audio level at both the Rx (audio Received by Asterisk)
and Tx (audio Transmitted by Asterisk).
Usually Channel Monitor can be used to capture the caller ID signaling of an FXO channel. If you
are experiencing caller ID problem you can perform channel monitor on the FXO port and then
analyze the captured packets. If needed, you can send this file to D-Link
support for help.
In the “Monitor on channel” field you should select a channel to be monitored. And then you
have to specify the duration to monitor. Then click on “Start” the capture will begin. Now you
should make a call in from this channel (port).
After the capture is done you’ll get the file listed in the “List of Files” section.
8.6 Reset & Reboot
Navigate to web menu System->Reset & Reboot.
As you can see here on this page, you are able to reset and reboot the IPPBX system directly via
