DVX IPPBX
86 / 130
5. Network Settings
5.1 Network Basic
5.1.1 IPv4 Settings
DVX IPPBX system supportsstatic IP, DHCP and PPPoE for WAN connection, whileon LAN port only
static IP is supported. If you are configuring your WAN connection as static IP or DHCP, ensure
WAN and LAN IP addresses are not in the same network.
Static

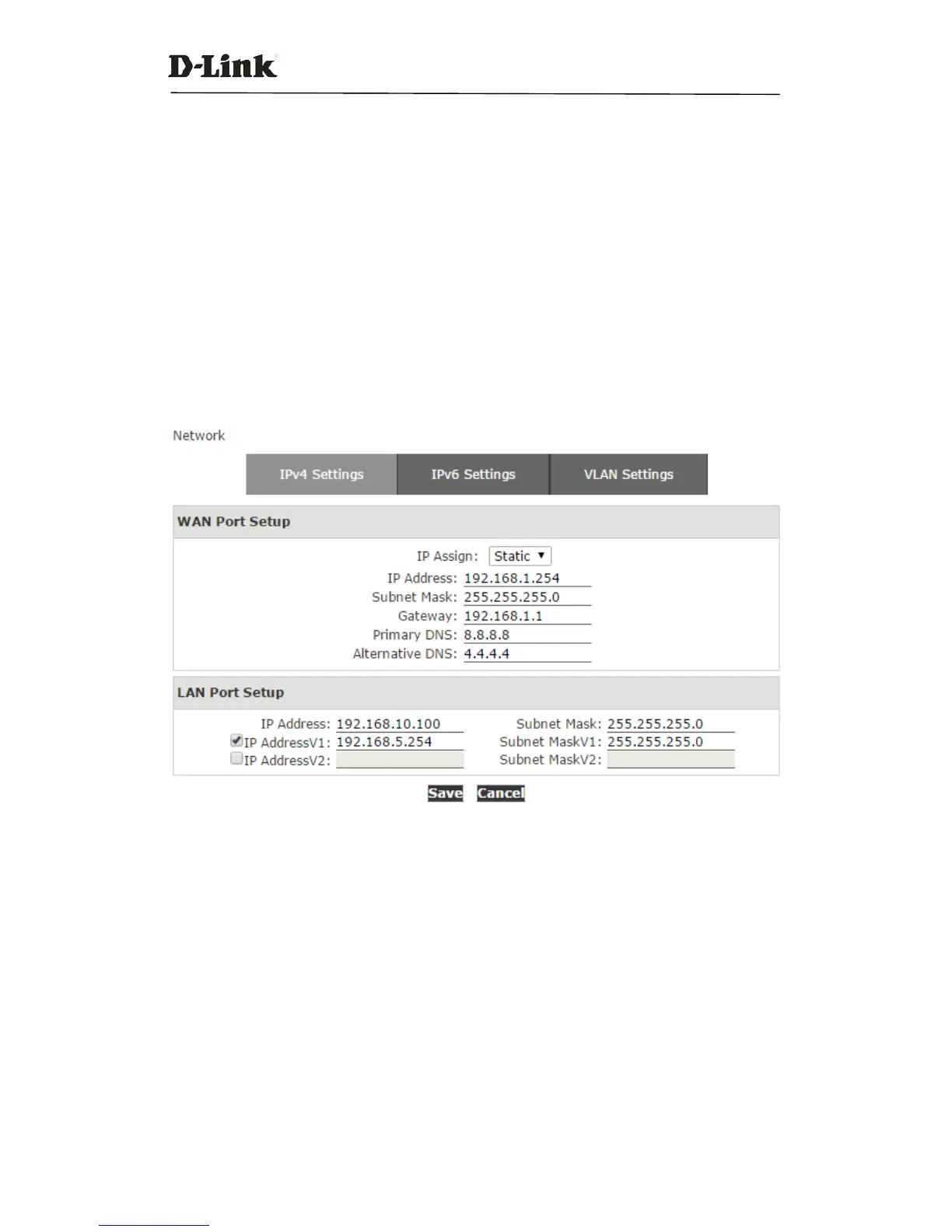

Navigate to web menu Network Settings->Network->IPv4 Setting.
By default, DVX IPPBX has been preconfigured with a static IP address of 192.168.1.100 and
192.168.10.100 on WAN and LAN interfaces respectively. If you want to use a static IP then
configure required address here and include the address, netmask, gateway and DNS given
byyour ISP or network administrator.
For the LAN interface, you can specify 2 additional virtual IP addresses. These can be used to
access other networks from the LAN port.
DHCP
If your Internet connection automatically provides you with a usable IP address, you can select
“DHCP” on the WAN interface.
