Appendix B - Conguration Examples
Conguring Client QoS
This example shows how to enable client QoS, congure an ACL and a DiffServ policy on the AP, and to apply the
ACL and the Policy to trafc transmitted from clients associated with VAP 2 and received by the AP.
The IPv4 ACL is named acl1 and contains two rules. The rst rule allows HTTP trafc from the 192.168.1.0 subnet.
The second rule allows all IP trafc from the management station (192.168.1.23). All other trafc is denied due to the
implicit deny all rule at the end of the ACL. The ACL is applied to the inbound interface on the AP so that packets are
checked when the AP receives trafc from associated clients.
The DiffServ policy in this example shows how to establish default DiffServ behavior for clients associating with the
VAP that do not obtain a DiffServ policy name through the RADIUS server. Voice trafc (UDP packets) received from
clients in the 192.168.1.0 subnet that has the VoIP server as its destination address (192.168.2.200), is marked with
the IP DSCP value for expedited forwarding so that it takes priority over other trafc.
Conguring QoS by Using the Web Interface
ACL Conguration
1.) Log onto the AP and navigate to the Client QoS > Client QoS ACL page.
2.) Enter acl1in the ACL Name eld, and click Add ACL.

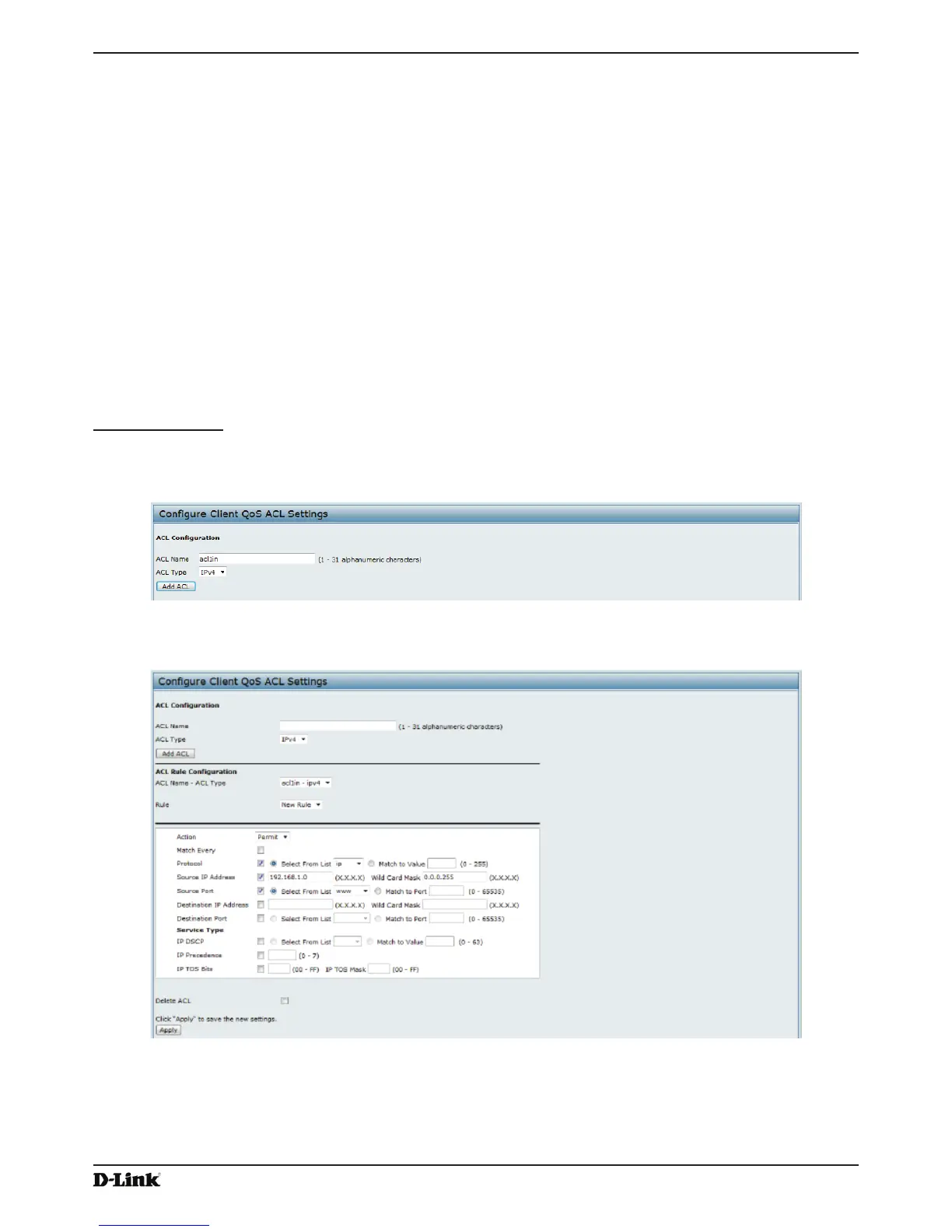

Figure 74 - Conguring QoS by Using the Web Interface (ACL Name)
The screen refreshes, and additional elds appear.
Figure 75 - Conguring QoS by Using the Web Interface (Rule1)
3.) From the Action menu, select Permit.
4.) Clear the Match Every option.
5.) Verify that the Protocol option is selected and IP is selected from the Select From List menu.
6.) Congure the remaining settings:
•) Source IP Address: 192.168.1.0
