Section 8 - Conîšżguring Client Quality of Service (QoS)
MAC ACLs
MAC ACLs are Layer 2 ACLs. You can conîšżgure the rules to inspect îšżelds of a frame such as the source or
destination MAC address, the VLAN ID, or the Class of Service 802.1p priority. When a frame enters or exits the AP
port (depending on whether the ACL is applied in the up or down direction), the AP inspects the frame and checks the
ACL rules against the content of the frame. If any of the rules match the content, a permit or deny action is taken on
the frame.
ACL Conîšżguration Process
Congure ACLs and rules on the Client QoS ACL page (steps 1–5), and then apply the rules to a specied VAP on
the AP QoS Parameters page (step 6).
Use the following general steps to conîšżgure ACLs:
1.) Specify a name for the ACL.
2.) Select the type of ACL to add.
3.) Add the ACL.
4.) Add new rules to the ACL.
5.) Conîšżgure the match criteria for the rules.
6.) Apply the ACL to one or more VAPs.
For an example of how to congure an ACL, see “ACL Conguration Process” on page 90.
To conîšżgure an ACL, click the Client QoS ACL tab.
The îšżelds to conîšżgure ACL rules appear only after you have created an ACL. The following image shows the
conîšżguration of a new rule for the IPv4 ACL named acl1. The rule prevents HTTP trafîšżc from all clients in the
192.168.20.0 network from being forwarded.

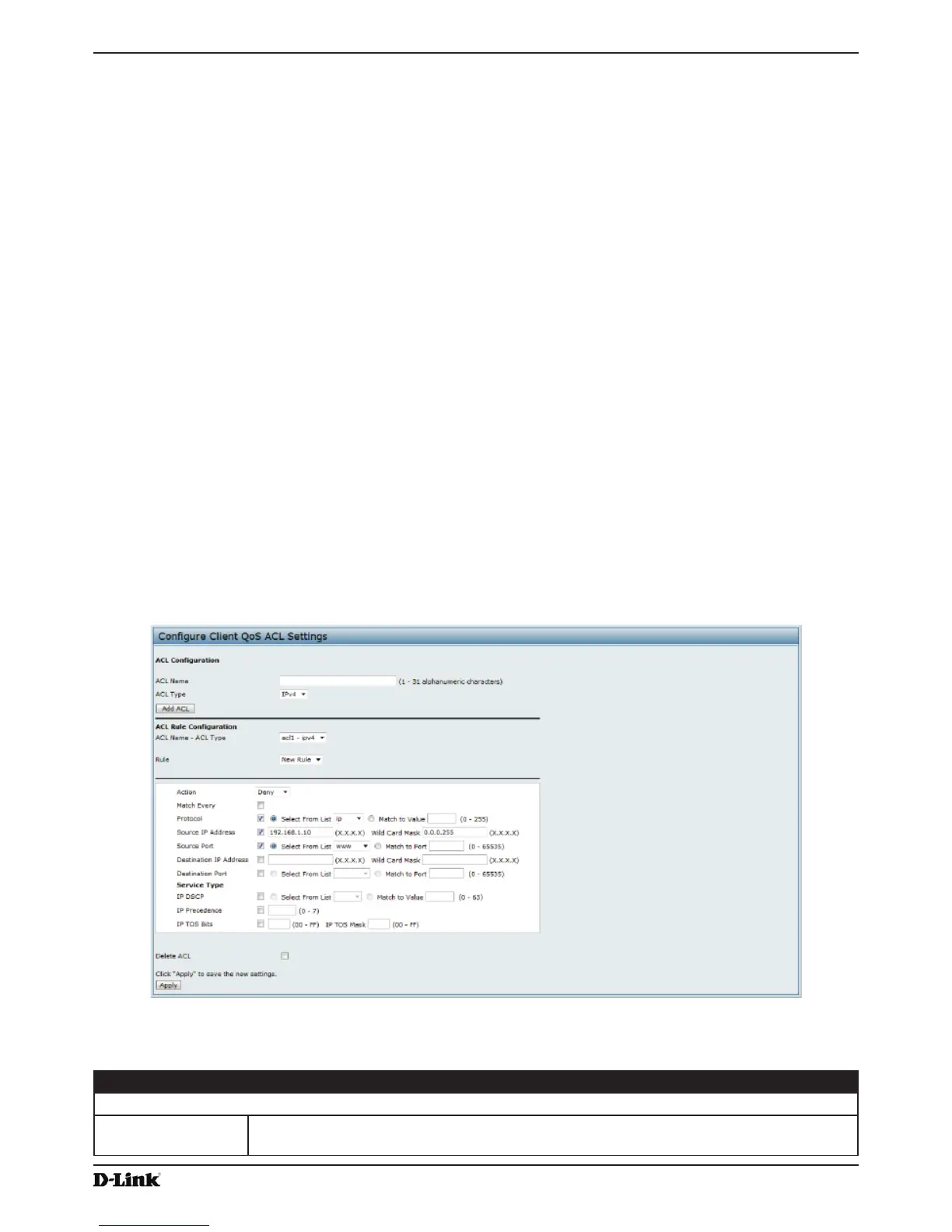

Figure 59 - Conîšżgure Client QoS ACL Settings
The following table describes the îšżelds available on the Client QoS ACL page.
Field Description
ACL Conîšżguration
ACL Name Enter a name to identify the ACL. The name can contain from 1 – 31 alphanumeric
characters. Spaces are not allowed.
