User Manual of DWR-M961
-12-
2.1.1
Front LED
The front LED provides a simple interface monitoring the router. Figure 2-1-1 shows the front LED of the DWR-
M961.

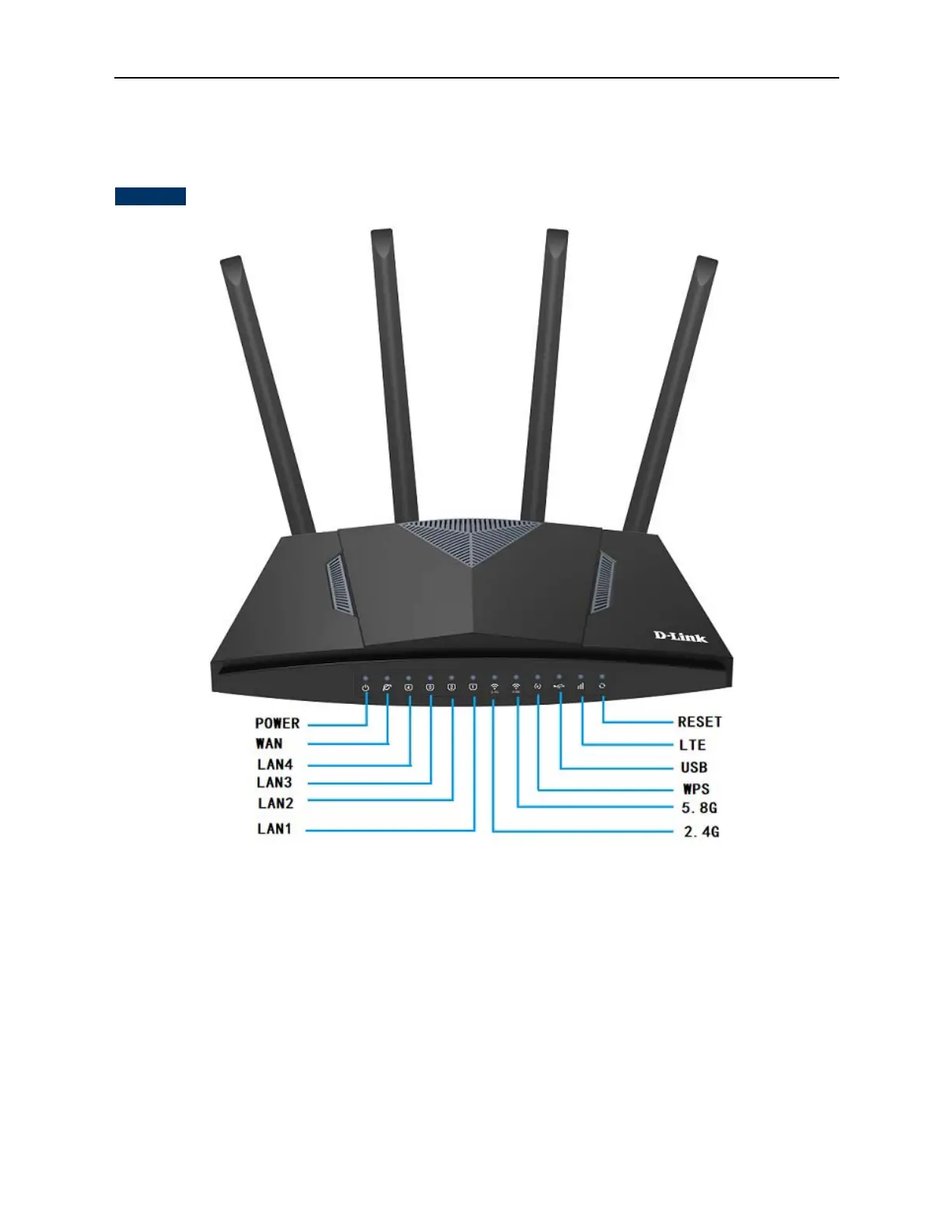

Front LED
Figure 2-1-1 DWR-M961 Top View
2.1.2
LED Indications
The LEDs on the front panel indicate instant status of port links, wireless data activity, system power, LTE, USB
and WPS, and help monitor and troubleshoot when needed. Figure 2-1-1 and Table 2-1 show the LED indications
of the Wireless Router.
