Section 1 - Product Overview

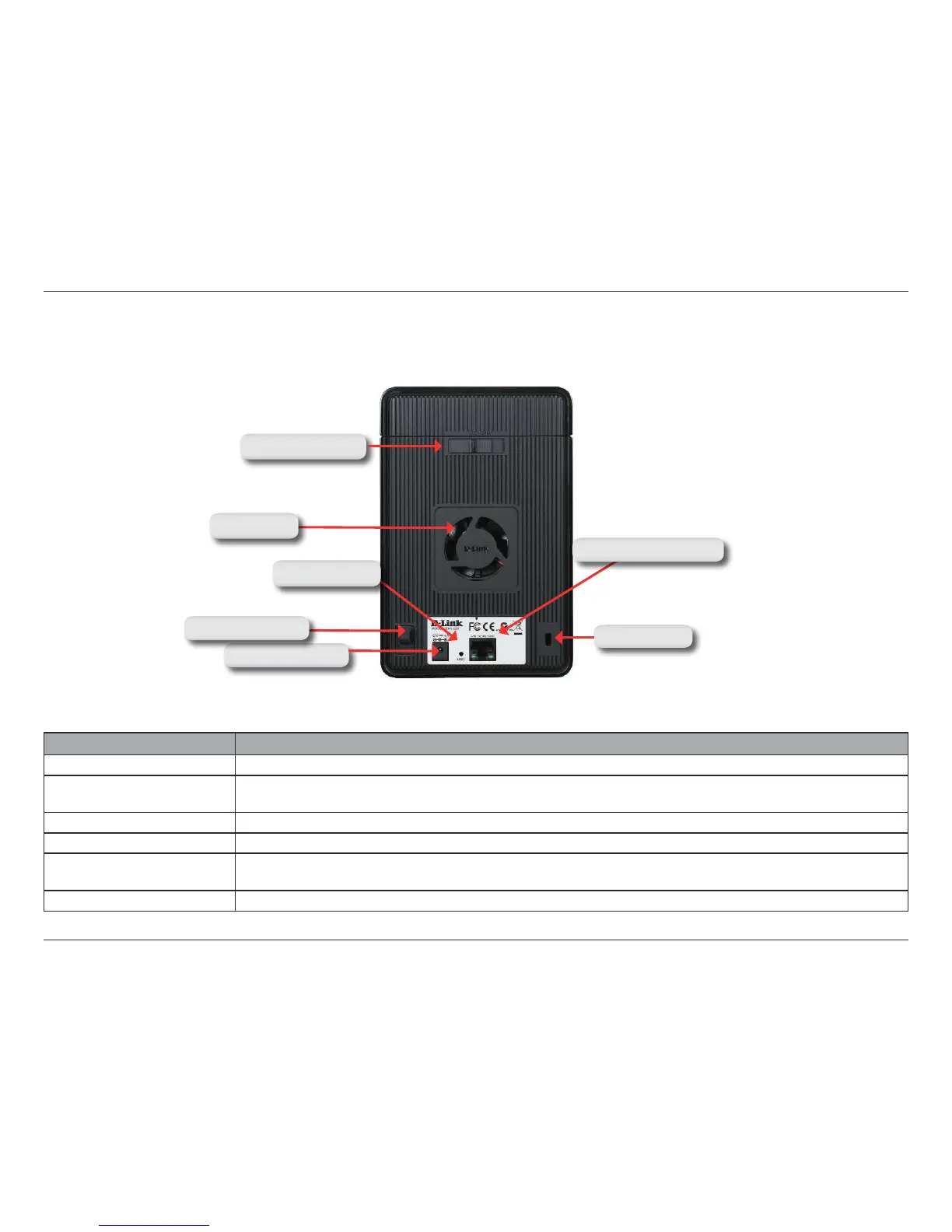

Rear Panel (Connections)
COMPONENT DESCRIPTION
Cover Lock This lock is used to remove the cover when unlocked. Locking it will restrict the removal of the top cover.
Cooling Fan
The cooling fan is used to cool the hard drives and features speed control. When the unit is rst powered on the
fans rotate at a low speed and rotate at a high speed when the temperature rises above 49 °C.
Reset Button Press this button for more than 5 seconds to reset the unit to factory defaults.
Power Receptacle Connect the supplied power cord to the receptacle.
Gigabit Ethernet Port
Use the Gigabit Ethernet Port to connect the device to the local network. The port is equipped with both a LAN
LINK (R) and Trac LED (L) to indicate connectivity and trac respectively to the local LAN
Security Lock This lock can be used to tie the ShareCenter Pulse to the desk to prevent theft. Cables are sold separately.
Power Receptacle
Reset Button
Cover Lock
Cooling Fan
Gigabit Ethernet Port
Cable Hook
Security Lock
