Configuration D-Link Web Smart Switch User Manual
7
7
4
4
TCP: Specifies TCP as the Layer 3 protocol that the access profile checks.
UDP: Specifies UDP as the Layer 3 protocol that the access profile checks.
Protocol ID: Specifies Protocol ID as the Layer 3 protocol that the access profile checks.
To define the MAC ACL profile, select MAC ACL with Tagged and click Select button. The following window
displays:

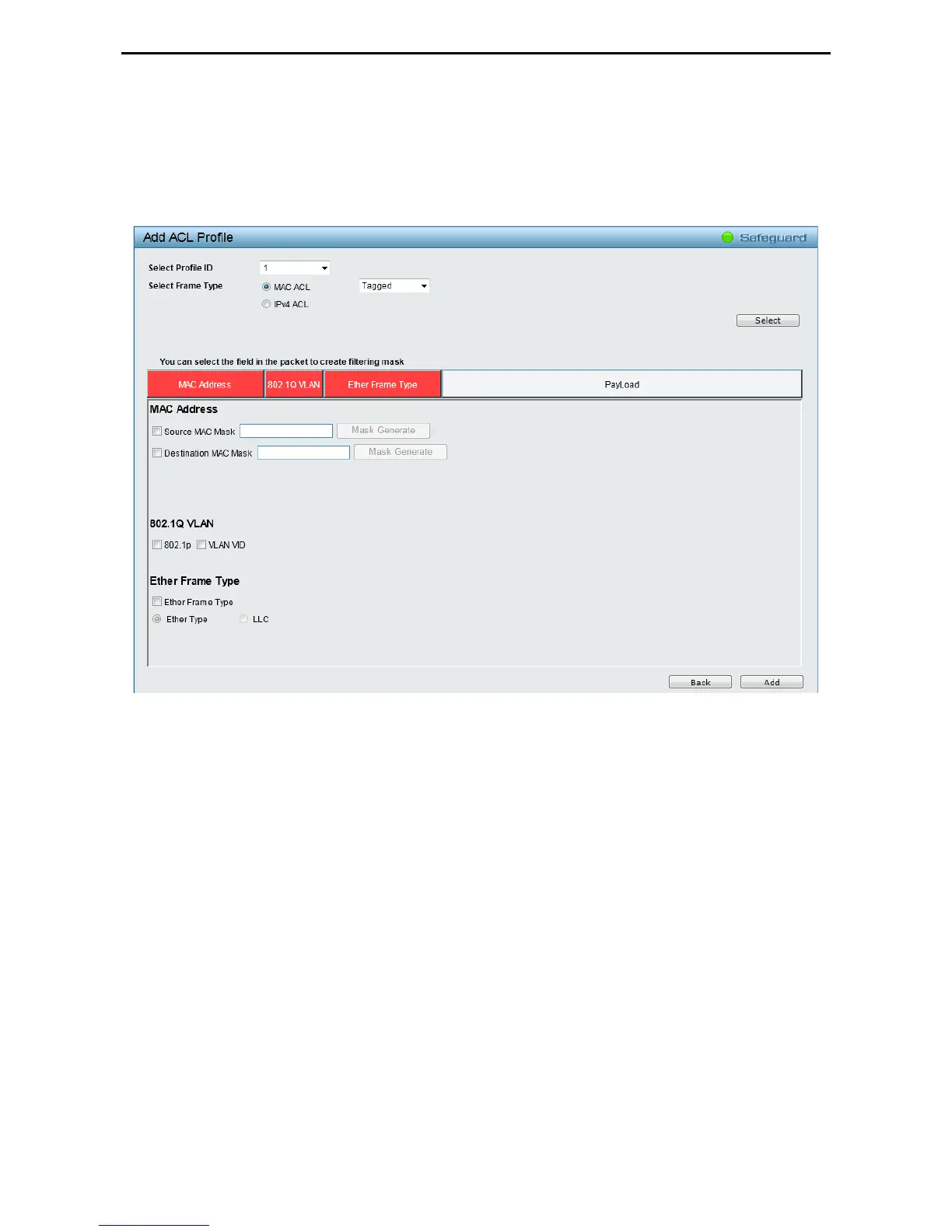

Figure 4.88 – ACL > Access Profile List > Add ACL Profile (MAC ACL)
The Add ACL Profile MAC ACL contains the following fields:
Source MAC Mask: Enter a MAC address mask for the source MAC address, e.g. FF-FF-FF-FF-FF-FF.
Destination MAC Mask: Enter a MAC address mask for the destination MAC address, e.g. FF-FF-FF-FF-
FF-FF.
802.1p: Select to examine the 802.1p priority of each packet header and use this as the full or partial
criterion for forwarding.
VLAN ID: Select to examine the 802.1Q VLAN of each packet header and use this as the full or partial of the
criterion for forwarding.
Ether Type: Select to examine the Ethernet type value in each frame’s header.
LLC: Select to examine the SSAP, DSAP or Control value of each frame’s header.
Click Add button to add the ACL profile. Click Back to go back to the previous window.
To define the IPv4 ACL ICMP profile, Select IPv4 ACL with ICMP and click Select button. The following
window displays:
