Configuration D-Link Web Smart Switch User Manual
7
7
3
3

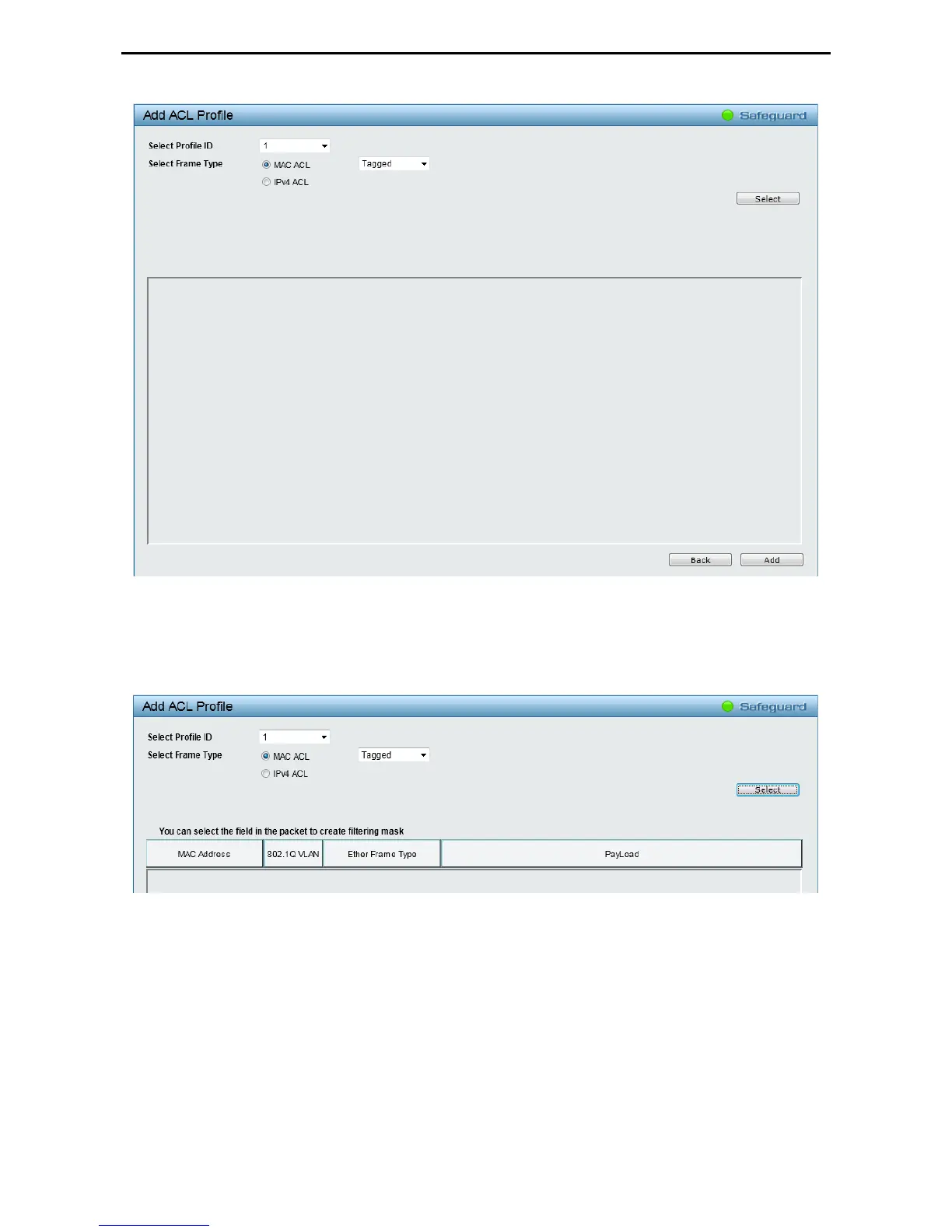

Figure 4.86 – Add Access Profile
The steps of adding an access profile are described below:
1) After selecting the Select Profile ID and Select Frame Type (MAC ACL or IPv4 ACL), specify attributes
like Untagged/Tagged (for MAC), or ICMP/IGMP/TCP/UDP/Protocol ID (for IPv4). Click Select and a
simplified frame diagram will be displayed.
Figure 4.87 – ACL > Access Profile List > Add ACL Profile
The Add ACL Profile window contains the following fields:
Select Profile ID: Select an unique identifier number for this profile set. This value is from 1 to 50.
Select Frame Type: Select frame type based on MAC address, or IPv4 address. This will change the
window according to the requirements for the type of profile.
MAC ACL – Select to instruct the Switch to examine the layer 2 part of each packet header.
Tagged: Defines the profile Layer 2 to match 802.1Q fields in the Layer 2 header.
Untagged: Defines the profile Layer 2 to check the Layer 2 header without the 802.1Q fields.
IPv4 ACL – Select to instruct the Switch to examine the IPv4 address in each frame’s header.
ICMP: Specifies ICMP as the Layer 3 protocol that the access profile checks.
IGMP: Specifies IGMP as the Layer 3 protocol that the access profile checks.
