Appendix A Connectors and Connection Media DGS-3610 Series H/W Installation Guide
A-2

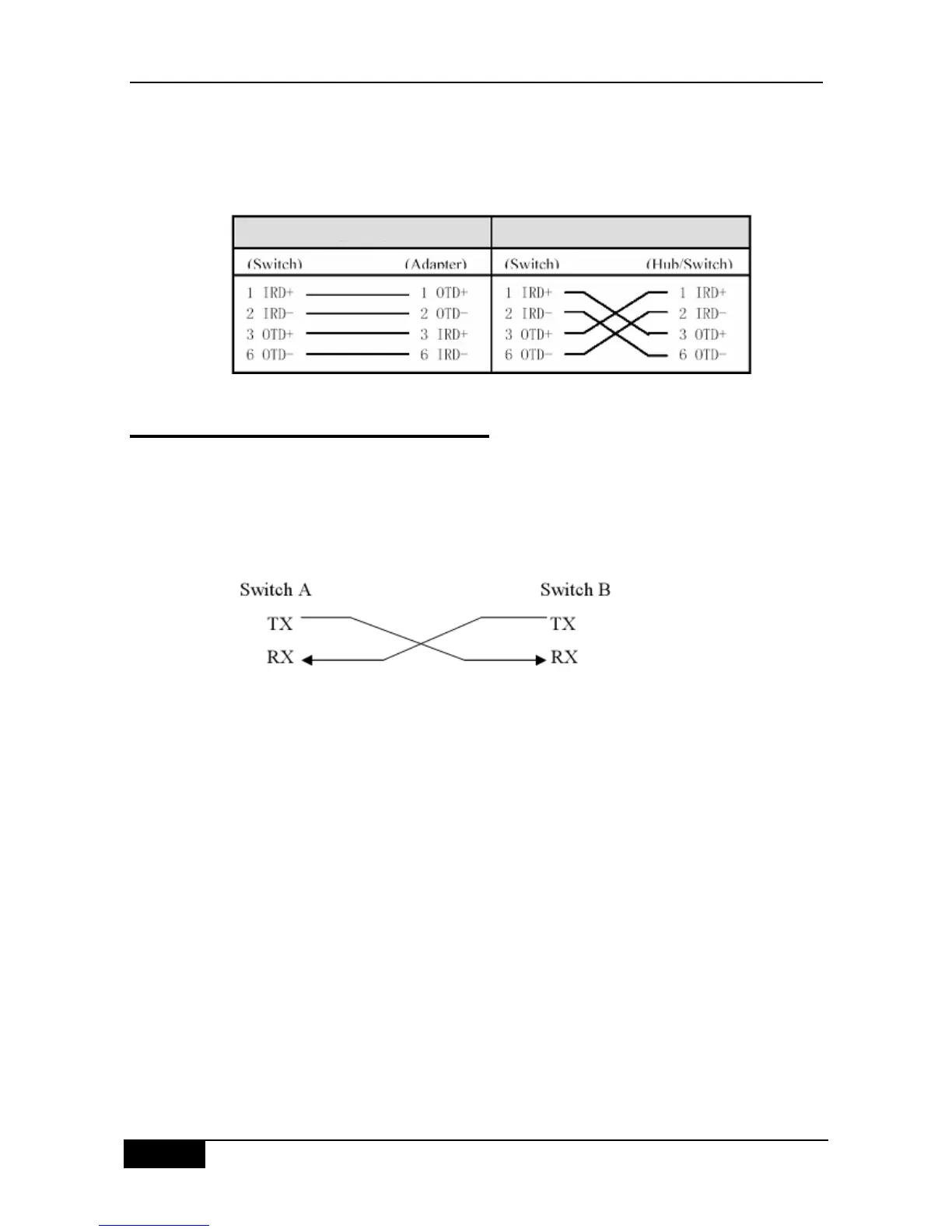

Figure A-3 shows the connections of the straight-through and crossover twisted pairs of the
100BASE-TX/10BASE-T.
Figure A-3 Connections of the Twisted Pairs of the 100BASE-TX/10BASE-T
Straight-Through
Crossover
A.2 Optical Fiber Connection
For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection
according to the fiber module connected. The connection schematic diagram is shown in
Figure A-4:
Figure A-4 Schematic Diagram for Optical Fiber Connection
