D-MAX DCK-500B - Convert Lens Voltage and Joystick Speed

35

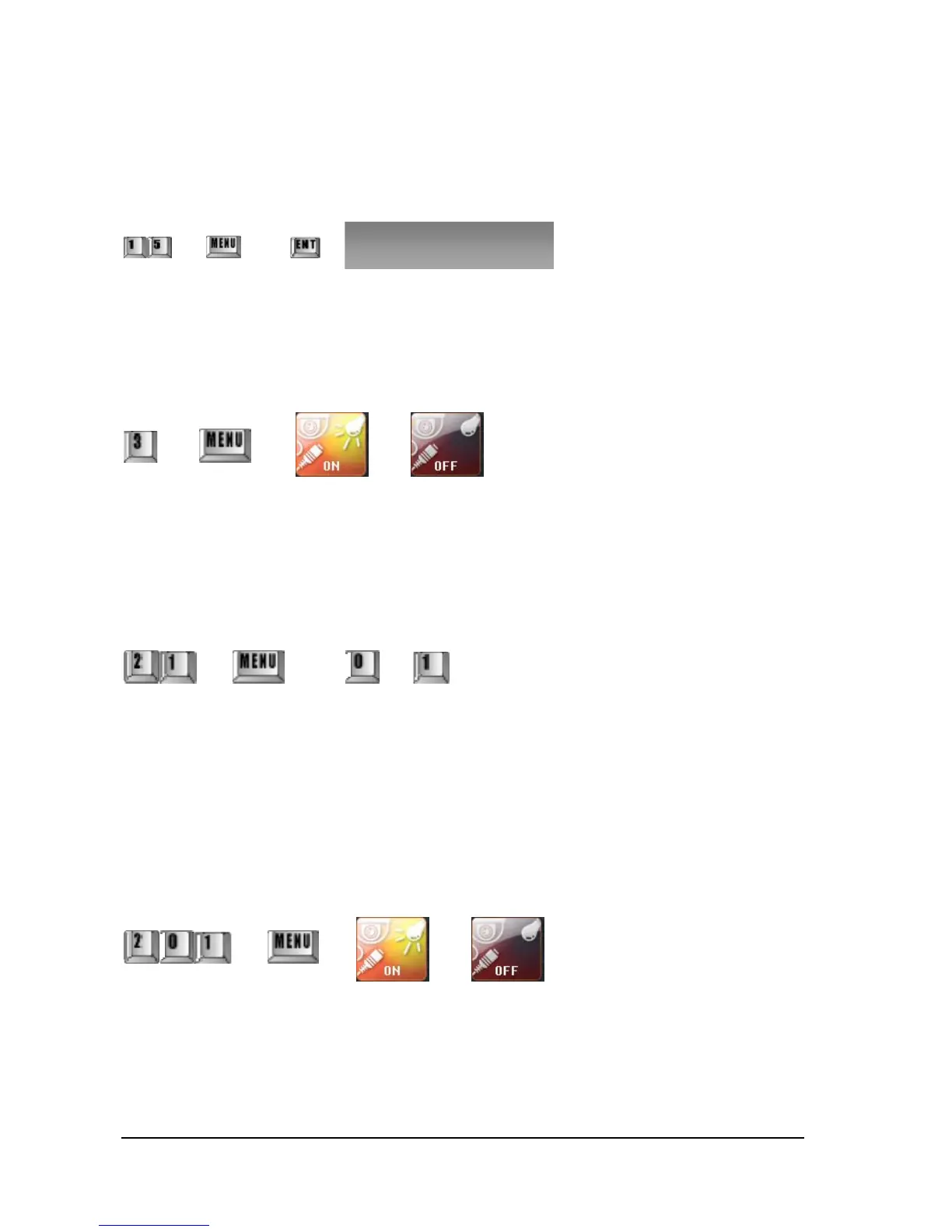

⑥ Convert the voltage of Lens Control
When the movement of Zoom Lens is too slow or fast, you can change the voltage to adjust the proper
speed
¨ ¨
※ Article ④~⑥ are for DRX-500, DRX-502A and SRX-100B(CCTV Receivers).
⑦ Alarm Relay On/Off
Alarm Relay inside Speed Dome can be turned On/ Off.
+ Æ or
• ‘Relay On’ or ‘Relay Off’ will be shown on the screen.
⑧ Control Joystick Speed (Joystick Speed (0,1) 0=MAX)
After decreasing its speed you may control the dome more precisely.
+ Æ or
• 0: Default
•1: Cut down Speed
⑨ Auto RTS On/Off
If user wish to connect Keyboard with other transmitters in parallel to control PTZ camera,
User should set “ON” of this menu.
+ Æ or
On: Sub Data is come through the Main Keyboard and it is working reliably.(Default)
Off: To control PTZ Camera by the Keyboard with other Transmitters (DVR or another Keyboard)
which were connected in parallel.
Lens : 1=6V,2=9V,3=12V
