13) CAM : Selects camera
14) Joystick: This joystick is used to control the pan/tilt/ zoom and move the cursor in the
OSD menu.
15) Color LCD (Screen): It has many different buttons for each function and supports real-
time Video.
16) Sensor: allows to remotely control keyboard with remote controller (soon be released)
17) Jog-shuttle: controls DVR

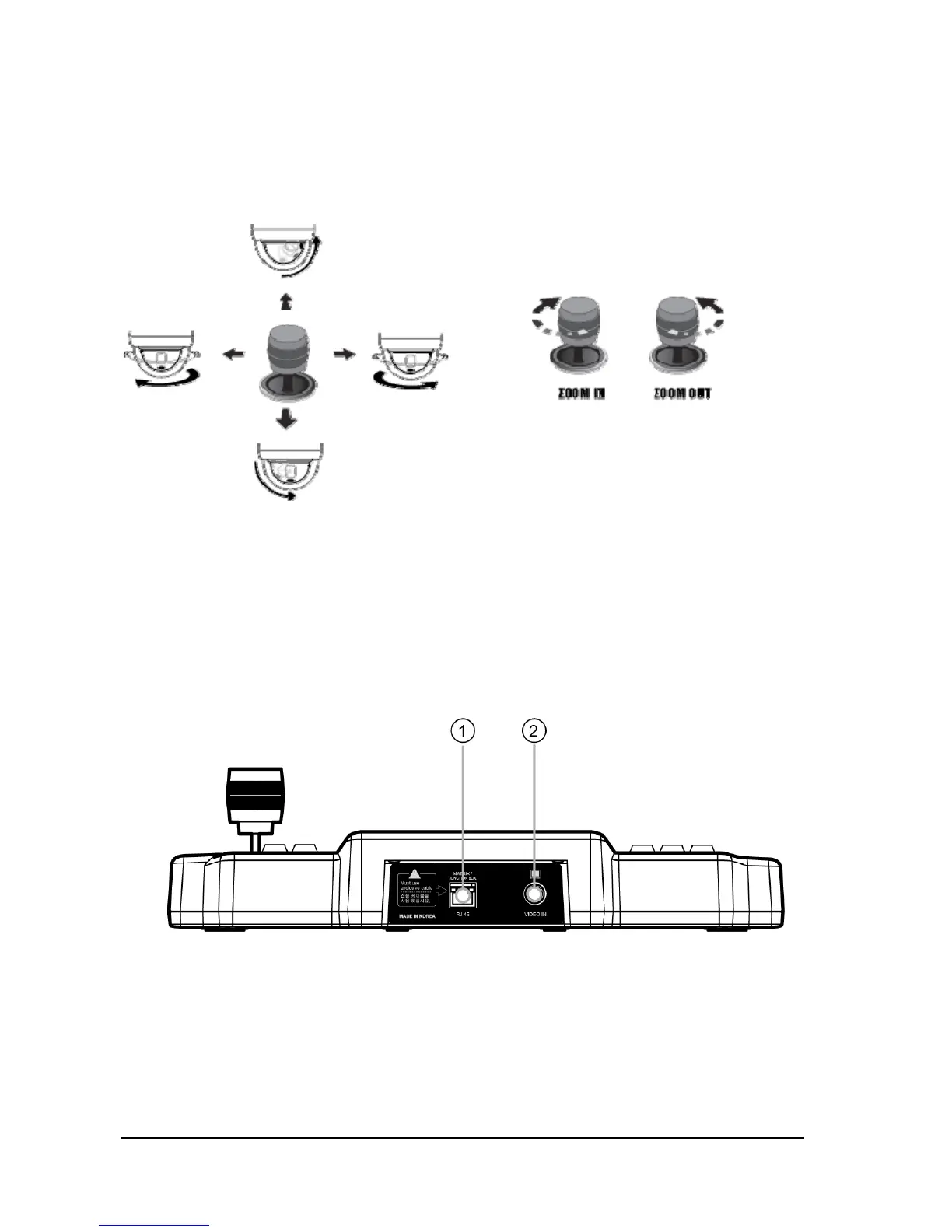

2. Rear Section
1) RJ-45 Connector: Connection Port with Junction Box & Matrix System
2) VIDEO Input Connector: Input Port for Video signal
