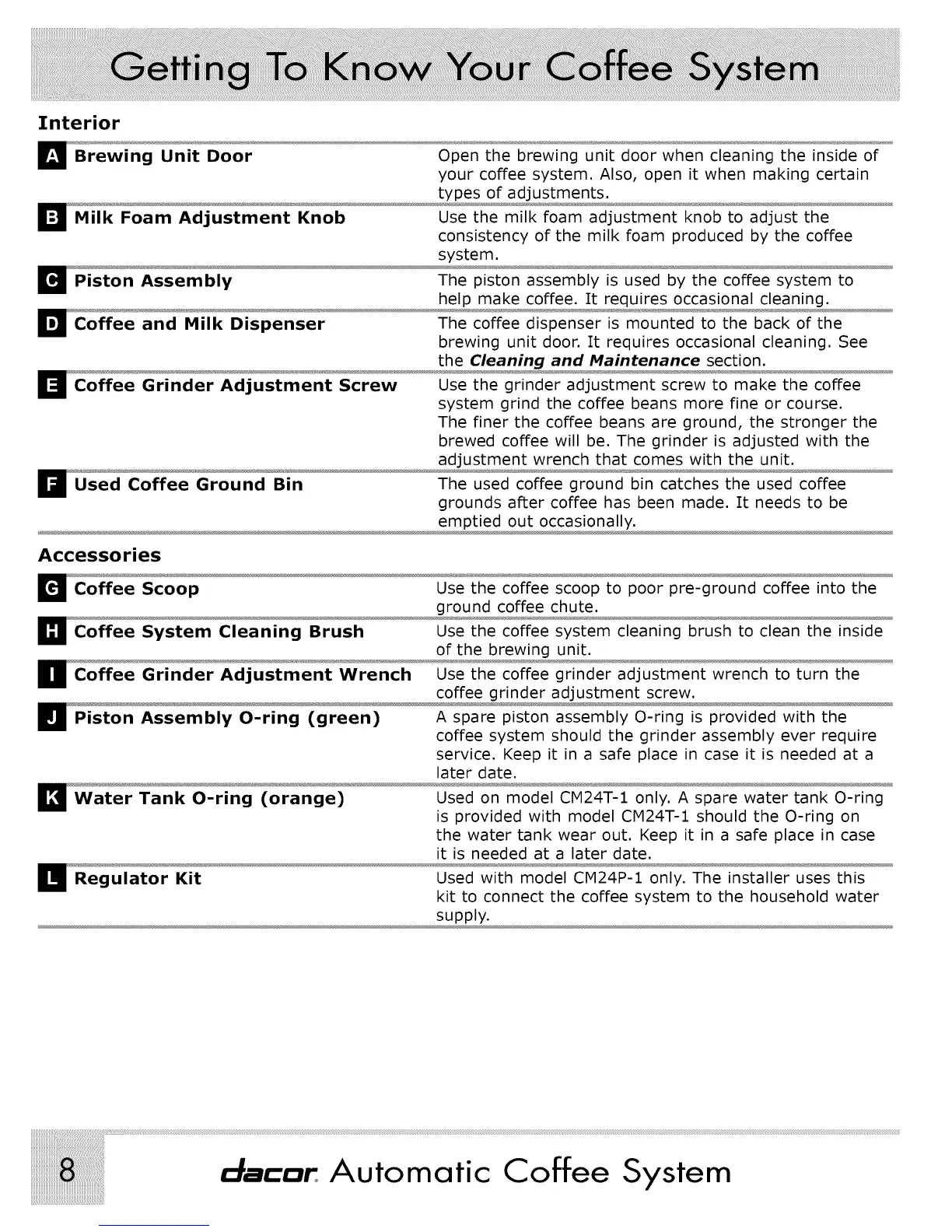

Interior
D
D
D
B
m
Brewing Unit Door
Milk Foam Adjustment Knob
Piston Assembly
Coffee and Milk Dispenser
Coffee Grinder Adjustment Screw
Used Coffee Ground Bin
Open the brewing unit door when cleaning the inside of
your coffee system. Also, open it when making certain
types of adjustments.
Use the milk foam adjustment knob to adjust the
consistency of the milk foam produced by the coffee
system.
The piston assembly is used by the coffee system to
help make coffee. It requires occasional cleaning.
The coffee dispenser is mounted to the back of the
brewing unit door. It requires occasional cleaning. See
the Cleaning and Maintenance section.
Use the grinder adjustment screw to make the coffee
system grind the coffee beans more fine or course.
The finer the coffee beans are ground, the stronger the
brewed coffee will be. The grinder is adjusted with the
adjustment wrench that comes with the unit.
The used coffee ground bin catches the used coffee
grounds after coffee has been made. It needs to be
emptied out occasionally.
Accessories
Coffee Scoop
Use the coffee scoop to poor pre-ground coffee into the
ground coffee chute.
Coffee System Cleaning Brush Use the coffee system cleaning brush to clean the inside
of the brewing unit.
Coffee Grinder Adjustment Wrench Use the coffee grinder adjustment wrench to turn the
coffee grinder adjustment screw.
Piston Assembly O-ring (green)
A spare piston assembly O-ring is provided with the
coffee system should the grinder assembly ever require
service. Keep it in a safe place in case it is needed at a
later date.
m
Water Tank O-ring (orange)
Regulator Kit
Used on model CM24T-1 only. A spare water tank O-ring
is provided with model CM24T-1 should the O-ring on
the water tank wear out. Keep it in a safe place in case
it is needed at a later date,
Used with model CM24P-1 only. The installer uses this
kit to connect the coffee system to the household water
supply,
Automatic Coffee System
