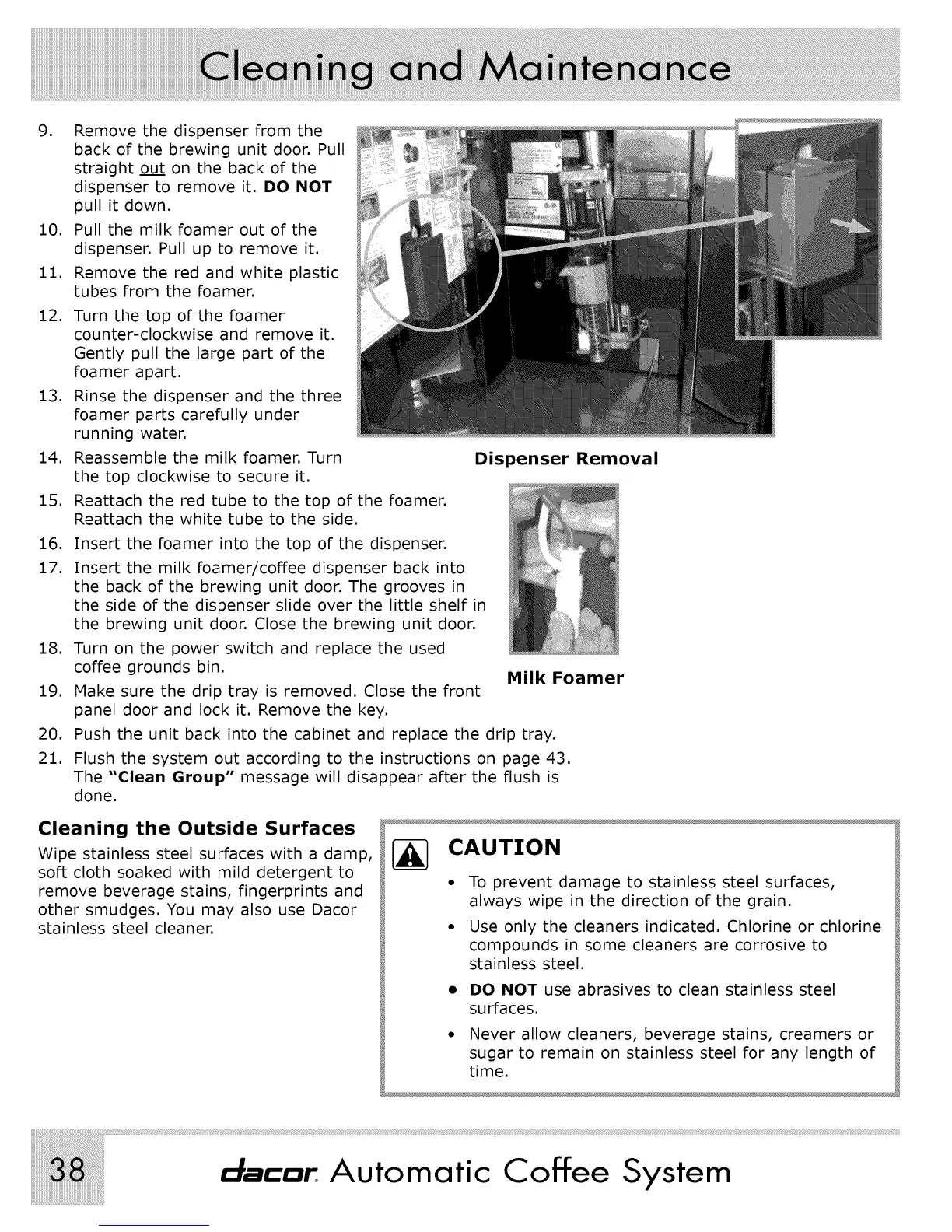

9. Remove the dispenser from the
back of the brewing unit door. Pull
straight out on the back of the
dispenser to remove it. DO NOT
pull it down.
10. Pull the milk foamer out of the
dispenser. Pull up to remove it.
11. Remove the red and white plastic
tubes from the foamer.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Turn the top of the foamer
counter-clockwise and remove it.
Gently pull the large part of the
foamer apart.
Rinse the dispenser and the three
foamer parts carefully under
running water.
Reassemble the milk foamer. Turn
the top clockwise to secure it.
Reattach the red tube to the top of the foamer.
Reattach the white tube to the side.
Dispenser Removal
Insert the foamer into the top of the dispenser.
Insert the milk foamer/coffee dispenser back into
the back of the brewing unit door. The grooves in
the side of the dispenser slide over the little shelf in
the brewing unit door. Close the brewing unit door.
Turn on the power switch and replace the used
coffee grounds bin.
Make sure the drip tray is removed. Close the front
panel door and lock it. Remove the key.
Push the unit back into the cabinet and replace the drip tray.
Flush the system out according to the instructions on page 43.
The "Clean Group" message will disappear after the flush is
done.
Milk Foamer
Cleaning the Outside Surfaces
Wipe stainless steel surfaces with a damp,
soft cloth soaked with mild detergent to
remove beverage stains, fingerprints and
other smudges. You may also use Dacor
stainless steel cleaner.
CAUTION
• To prevent damage to stainless steel surfaces,
always wipe in the direction of the grain.
• Use only the cleaners indicated. Chlorine or chlorine
compounds in some cleaners are corrosive to
stainless steel.
DO NOT use abrasives to clean stainless steel
su rfaces.
Never allow cleaners, beverage stains, creamers or
sugar to remain on stainless steel for any length of
time.
Automatic Coffee System
