Page 10
LIGHT SOCKET REPLACEMENT
1. Remove rack supports
2. Remove lens cover (pry off)
3. Pull/pry out lens cover with a straight blade screwdriver.
4. Pull wires, snip and reconnect new socket assembly with cer amic wirenuts

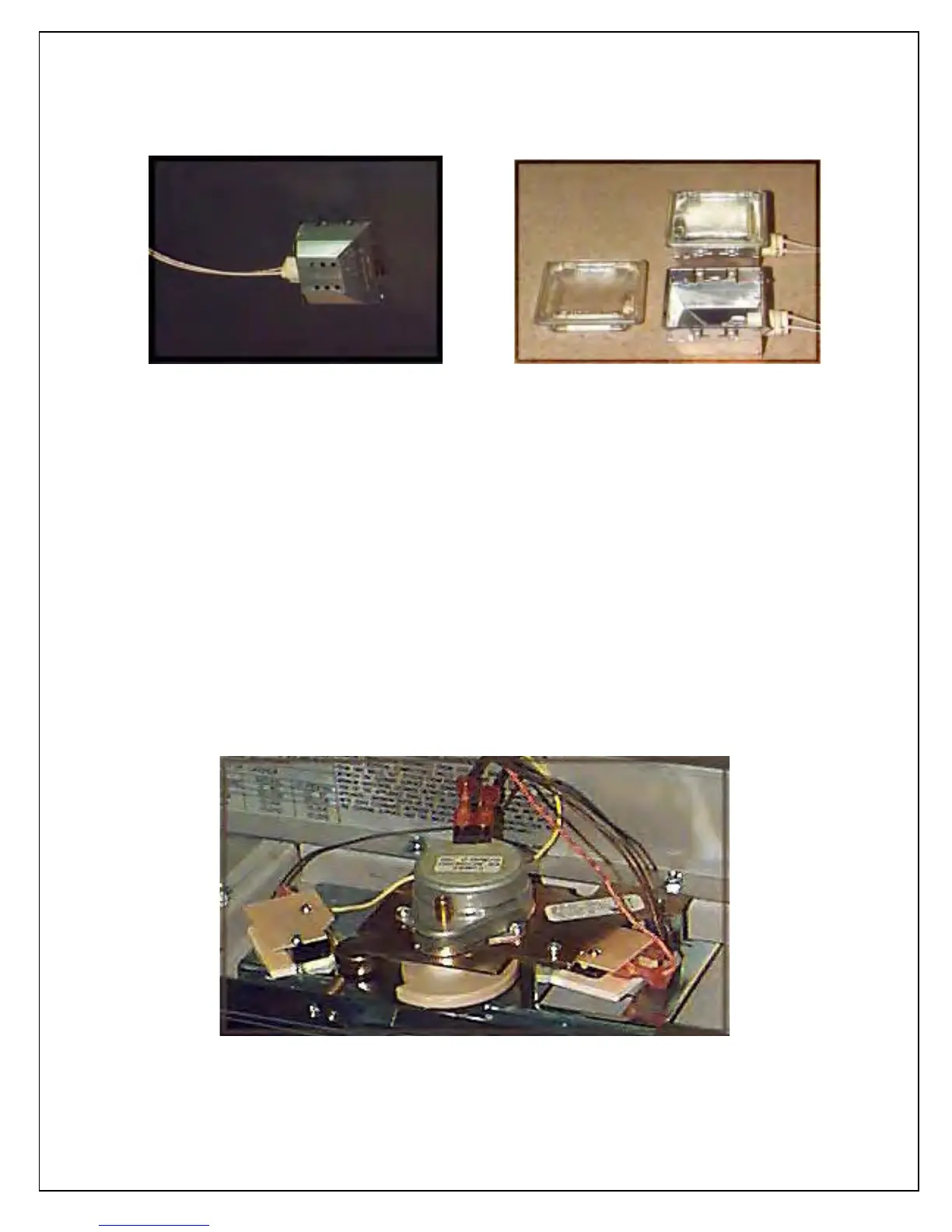

Figure 20-1 shows the light socket assembly mounted on the outside of the oven cell
Figure 20-2 shows the complete socket assembly and the socket assembly with the lens
cover removed
DOOR LATCH ASSEMBLY
1. Remove screws (6 phillips) from front intake grill, slide grill down and off
2. Using ratchet and 5/16" socket remove 2-5/16" hexhead screws on either
side of latch
3. Pull forward to release latch from housing
Figure 20-1 Figure 20-2
Figure 20-3
Figure 20-3 shows the door latch
