Page 9
SENSOR REPLACEMENT
1. Remove right rack supports
2. Remove 2-5/16 hexhead scr ews and pull sensor
3. Replace sensor
BAKE ELEMENT
REPLACEMENT
1. Remove convection baffle
2. Remove 2-5/16 hexheads from mounting plate
3. Pull element forward
Figure 19-1
B

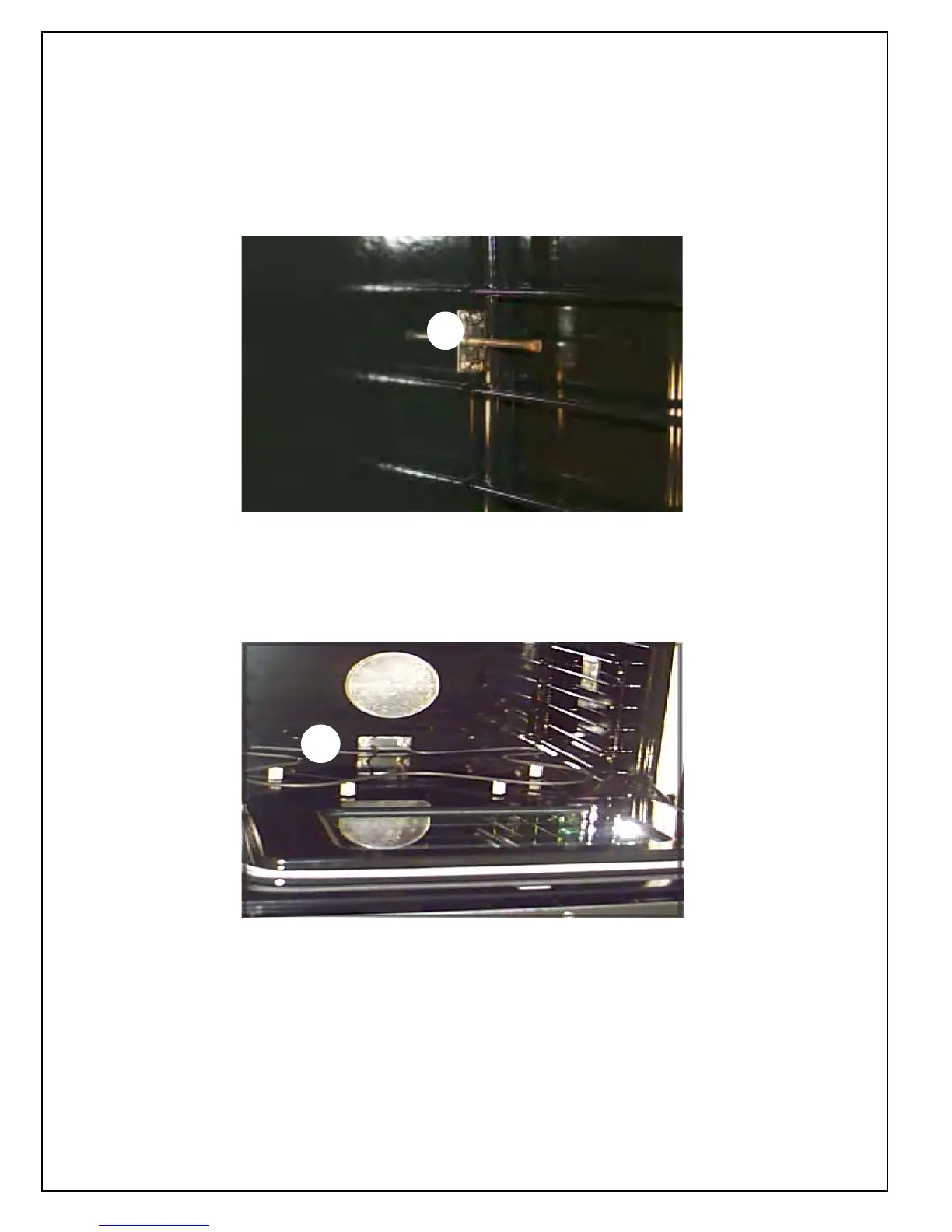

Figure 19-1 shows the location of the sensor or temperature
probe (A) inside the oven cell
Figure 19-2
Figure 19-2 shows the location of the mounting plate on the
convection baffle
A
A
