Dacor ERD30 - Gas Valve

Page 12
1. Remove oven door
2. Remove two screws from either side of the toe kick
3. Disconnect the two wires on the valve and the two gas lines
4. Remove the two mounting screws from the bracket and remove from oven
Gas Valve

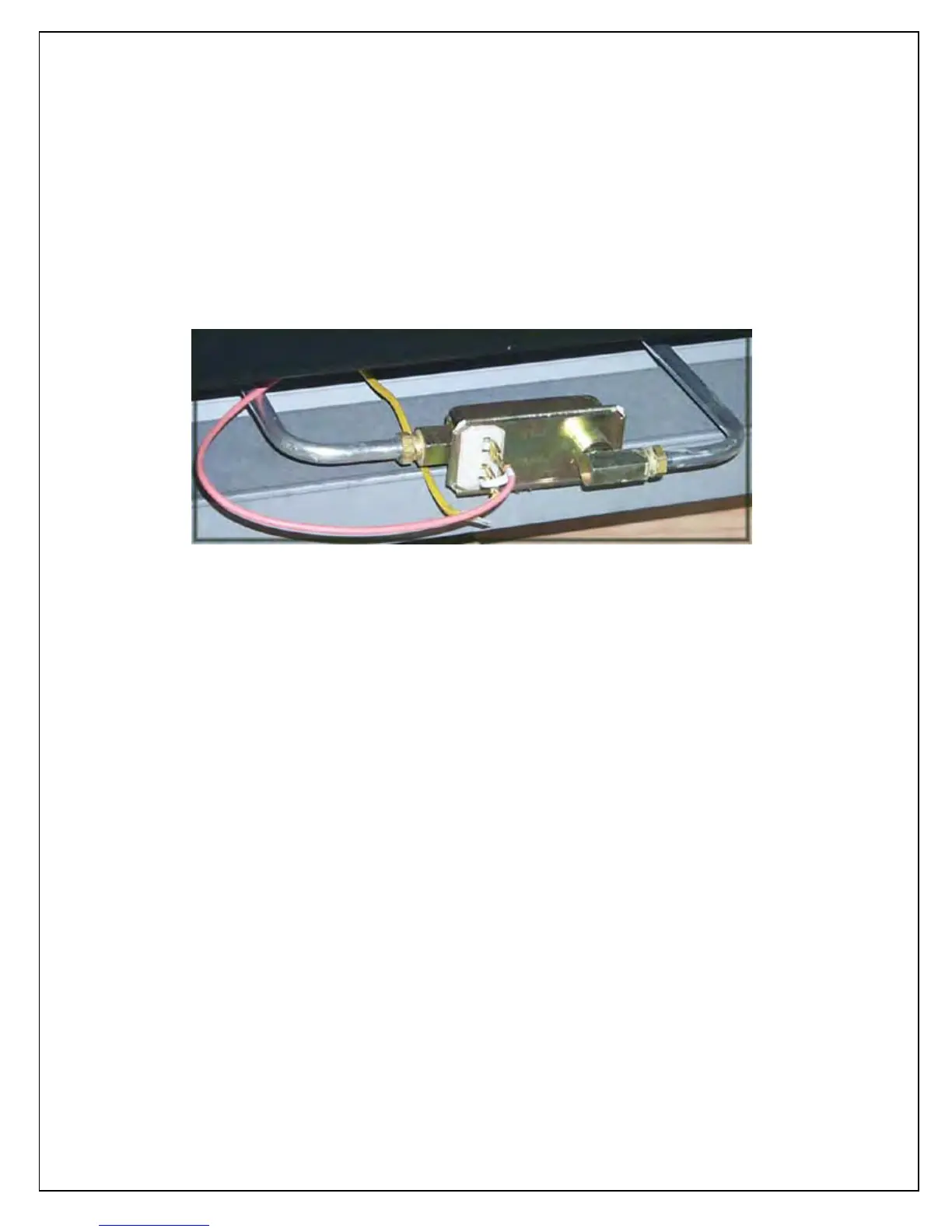

Figure 22-1
Figure 22-1 shows the gas valve that supplies gas to the infrared broiler
located behind the toe-kick at the bottom of the range.
