Dacor ERD30 - DOOR HINGES; To remove hinge receptacle; To change door hinges

Page 11
To remove hinge receptacle:
1. Remove oven door
2. Remove side panel on range
3. Remove two Allen head screws
4. Going into hinge receptacle, remove the hi nge receptacle through the opening on the
side of the range
To change door hinges:
1. Remove door from range
2. Remove 5 screws that hold the outer panel onto the inner door liner (1 screw on each
upper side and 3 scr ews across the bottom.)
3. Separate the inner and outer liner and cautiously release the locking hinge mechanism
on the hinge
4. After removing the screw from the bottom of the hinge, remove the hinge from the
door
Figure 21-1
Figure 21-2
A
B

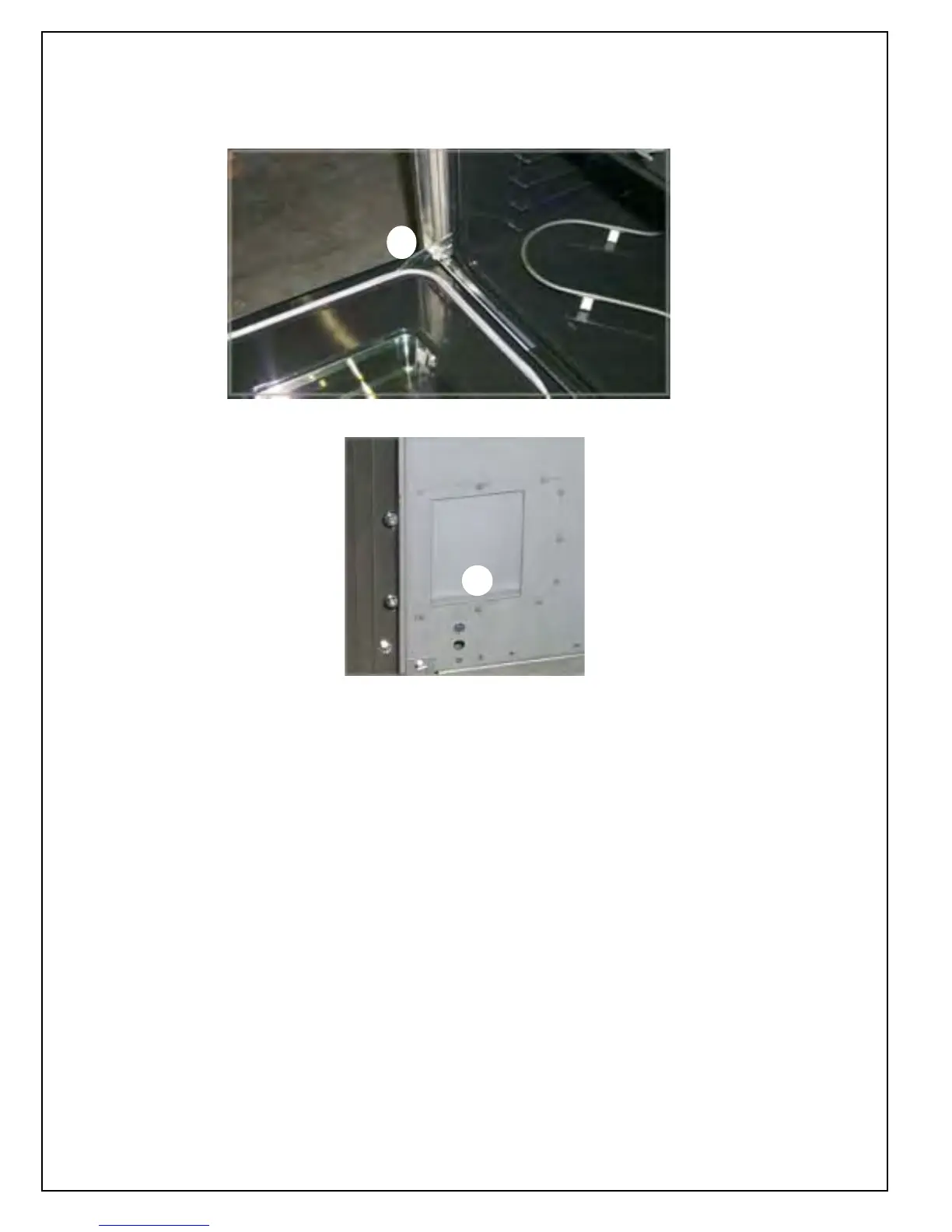

Figure 21-1 (A) shows the location of the door hinge and Figure 21-2 (B)
shows the location of the hinge receptacle.
DOOR HINGES
