COOLING FAN
REPAIR/REPLACEMENT
1. Remove top frame
2. Remove spill tray support
3. Remove rear cover shield
4. Loosen burner bases/rear burners to remove rear cover shield
5. Remove 2 hexheads bolting cool ing fan in place
6. Disconnect 2 wires from motor housing, unbolt 3 screws on backside of
blower housing bracket.
7. Reconnect new fan
Figure 16-1

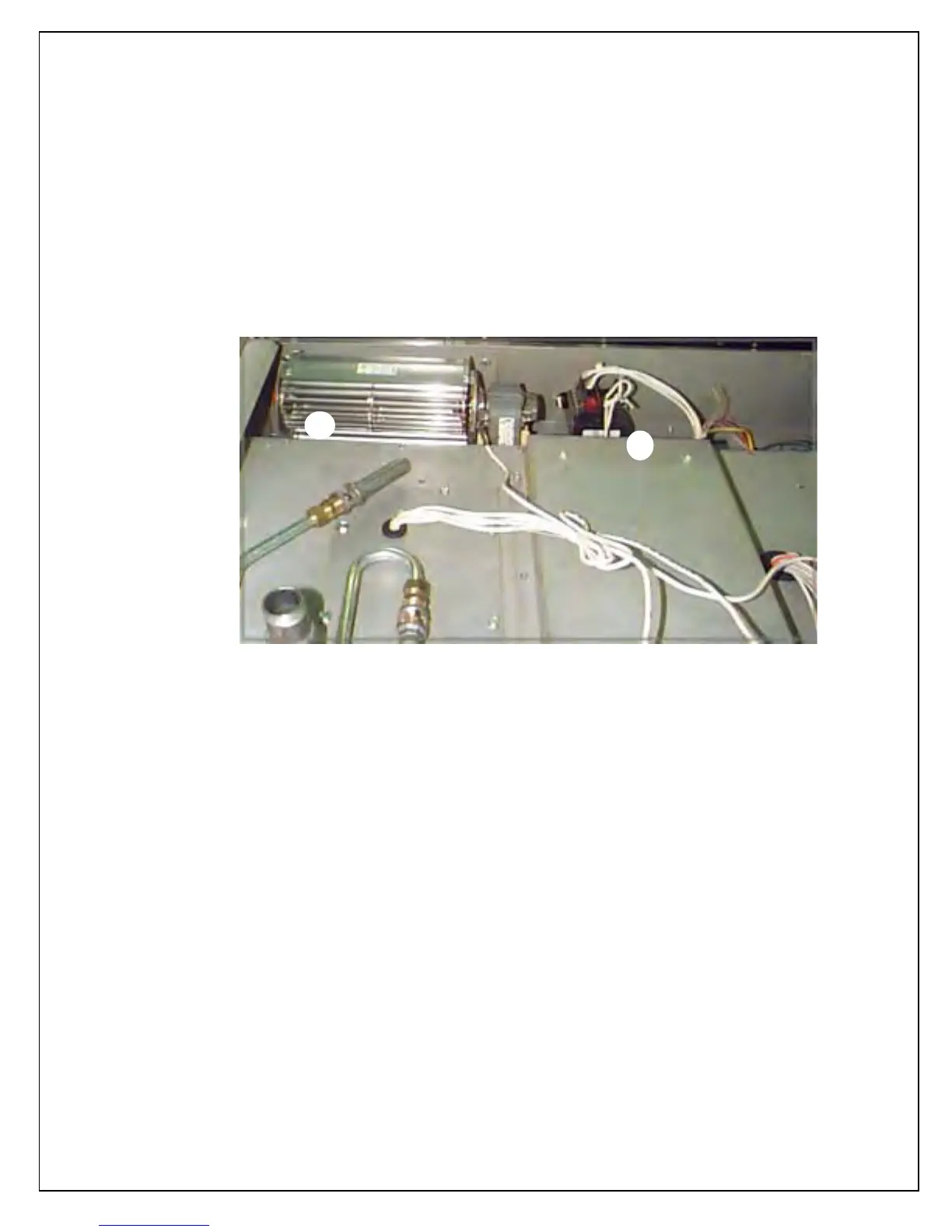

Figure 16-1 shows the cooling fan (A) (Part number 82347) and the
transformer (B) which are located beneath the access cover
A
B
A
B
