Page 13
CONVECTION ELEMENT
AND ASSEMBLY
Convection Motor
1. Remove convection filter from inside cell
2. Remove acorn nut (LEFT HAND THREAD) holding
fan blade to motor shaft
3. Remove fan blade
4. Pull range to gain ac cess to backside of range
5. Remove 3-5/16" hexhead screws
6. Remove 2 wires attached on backside
7. For installation - reverse pr ocedure
Convection Element
1. Remove convection filter
2. Remove convection baffle
3. Remove 2-5/16" hexhead screws
4. Pull element

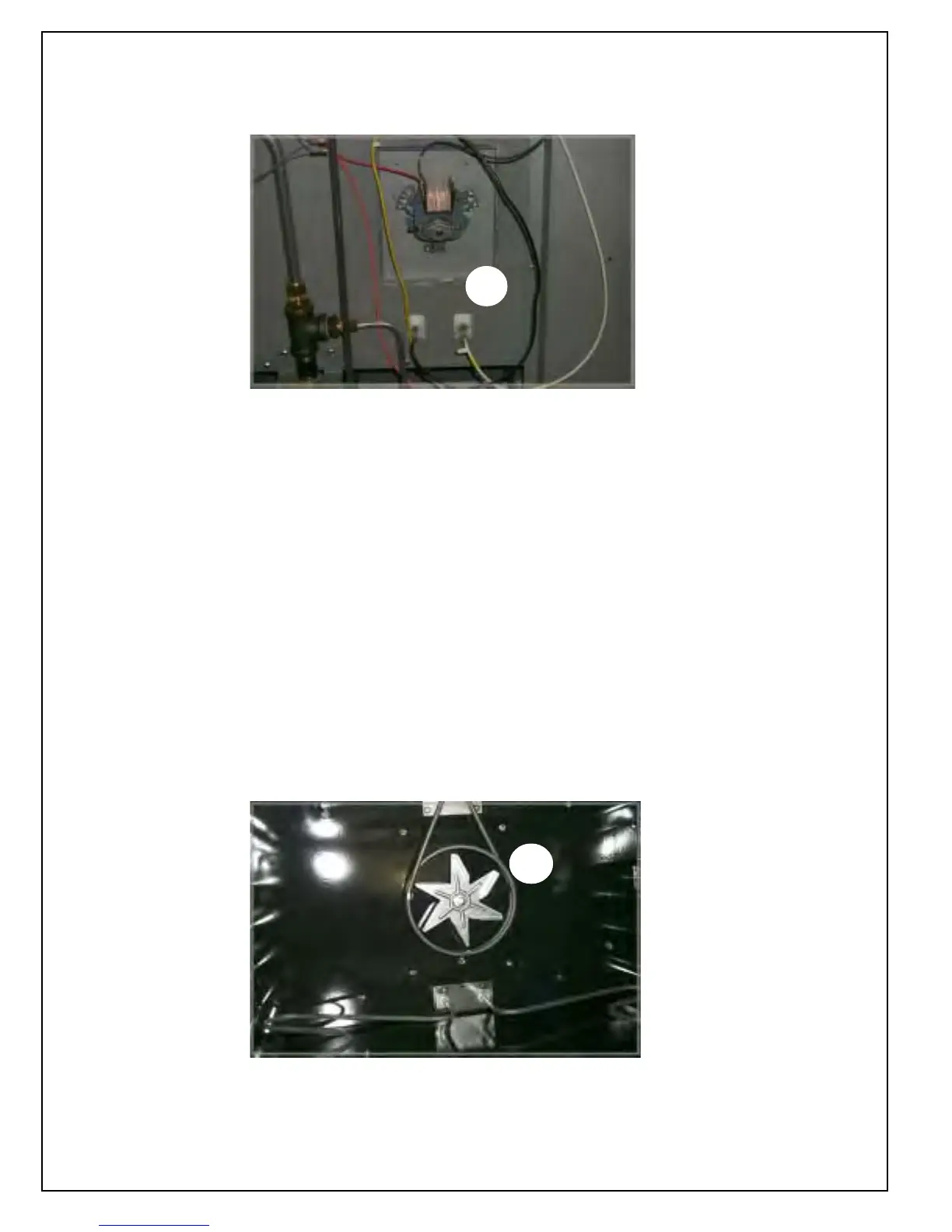

Figure 22-1 shows the convection motor part number (A)
mounted on the outside, back of the oven
Figure 23-2 shows the convection fan blade and the convection element
** Please note that the acorn nut holding the convection fan blade is a
LEFT HAND THREAD
A
B
