The following is an explanation of correct
inspection methods, cleaning and parts
replacing. Please always refer to this
section when wanting to inspect or repair
your vehicle.
Brake lever free play is adjusted by
rotating the adjuster of the brake arm.
After adjustment, check the brake lever to
ensure that the clearance is not above or
under the prescribed amount.
Brake Lever Free Play : 10~20mm
32
Simple Maintenance Brake Lever Adjustment
Caution
●Always observe safety rules when
performing maintenance on the
vehicle.
●Choose a flat surface and make
sure the main stand is in a secure
down position.
●Use correct tools.
●Conduct engine maintenance with
the engine key out of the ignition.
●Be careful around the engine and
muffler when performing mainte-
nance as these areas can become
extremely hot.

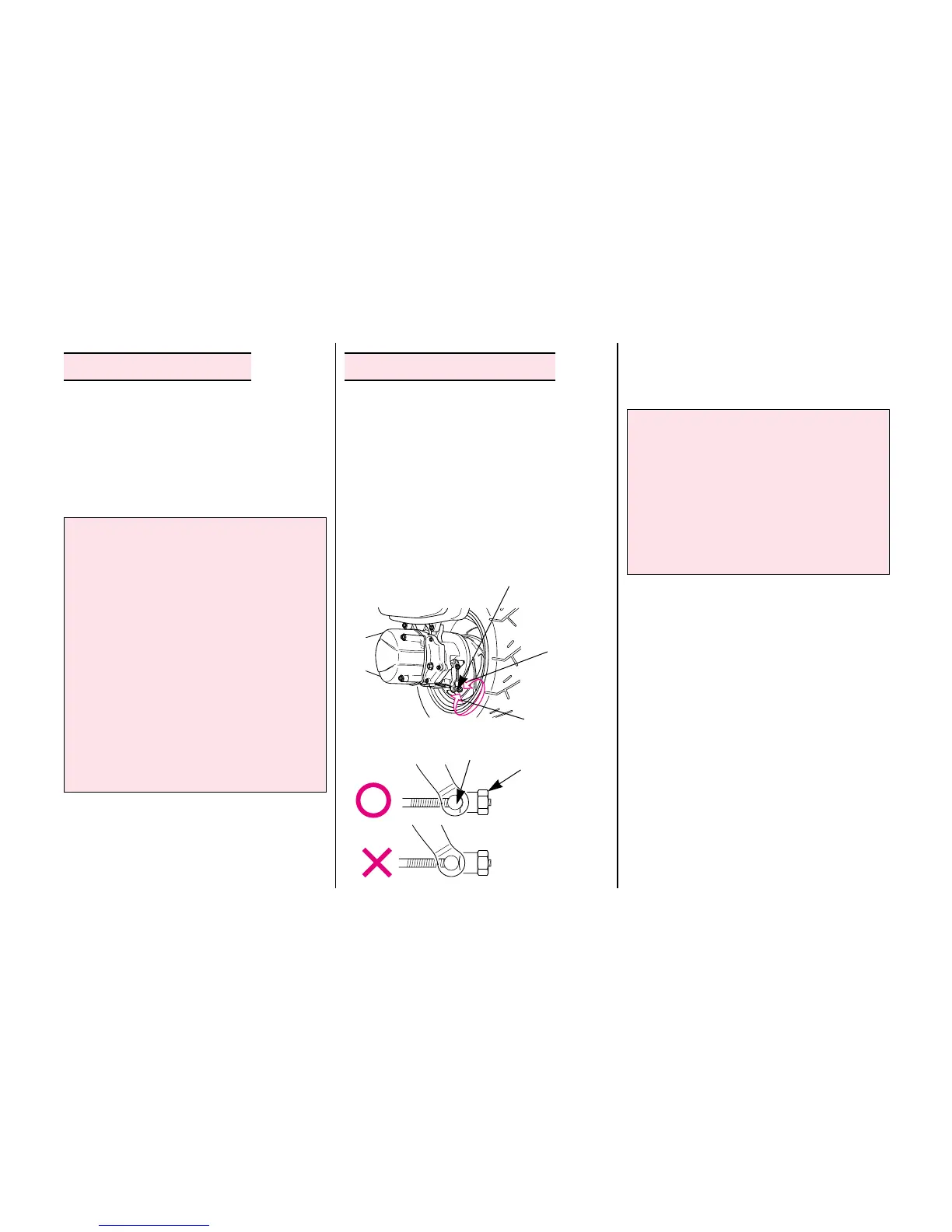

Caution
●After adjusting the brake, make
sure that “” part of the adjuster
contacts the pin as in the drawing
below. Brake clearance can change
when driving if this is not done.
●It is not necessary to adjust the
front brake.
ADJUSTER
■ Rear Brake
INCREASE
FREE PLAY
DECREASE
FREE PLAY
PIN
ADJUSTER
To Next Page
