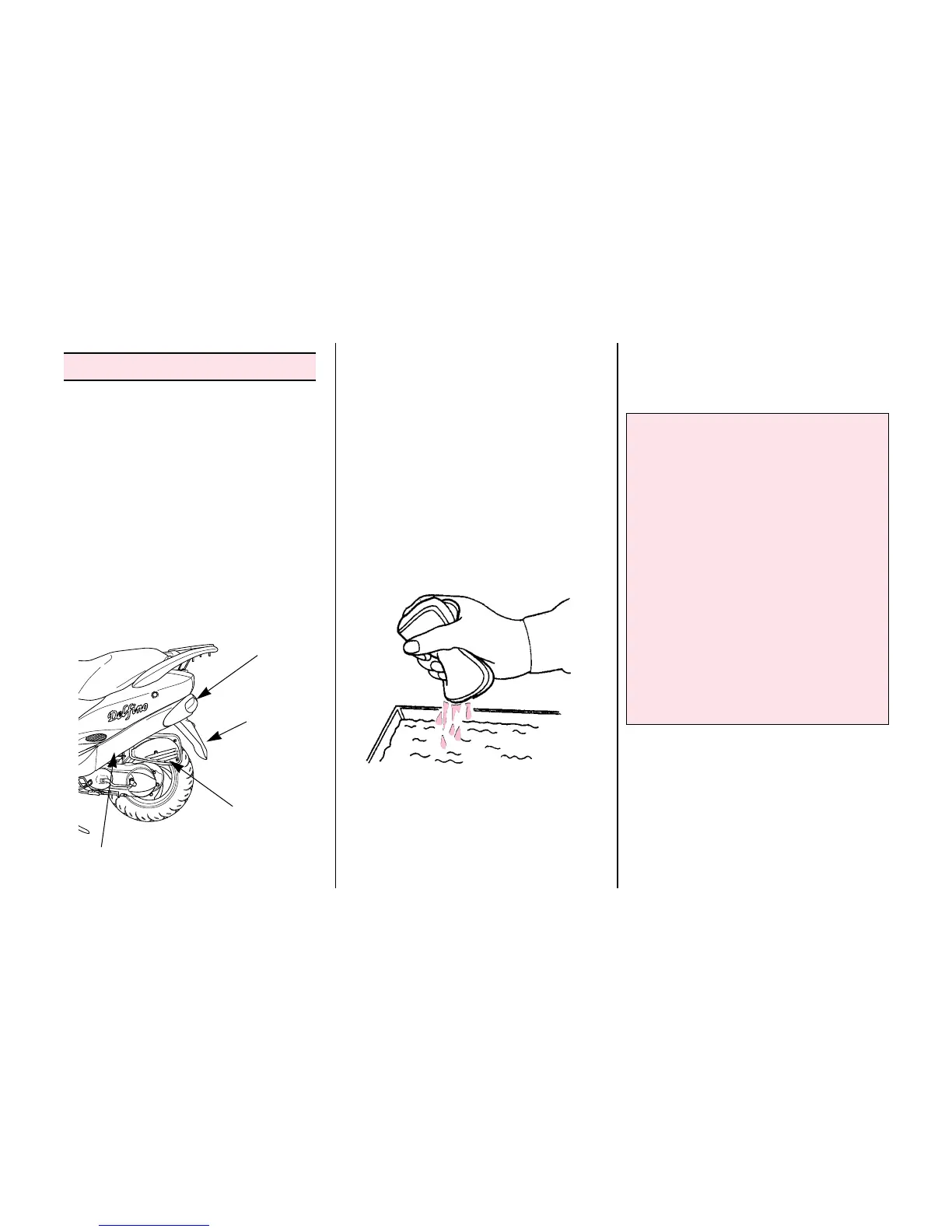

[Removal]
① Loosen the pan screws and remove the
rear combination light.
② Loosen the washer screws and remove
the rear mudguard.
③ Loosen the body cover clip and
remove the left side cover.
④ Loosen the washer screws and remove
the air cleaner case cover.
[Cleaning]
●Clean the air cleaner element in clean
oil, squeeze excess oil, and then, wra-
pping it in a dry cloth, squeeze it again.
●Make sure all excess oil removed and
reassemble the air cleaner element.
Oil : 4 CYCLE GEAR OIL
⑤ Install in the reverse order of removal.
44
AIR CLEANER CASE
COVER
Air Cleaner Element Inspection
Caution
●Do not use gasoline or other ma-
terials having a low ignition point
as this can be a fire hazard.
●If the air cleaner element is in-
adequately assembled, dust and
other waste materials can directly
enter the engine. This results in
increased cylinder wear and redu-
ced power, and reduced durability
of the engine.
●When washing the vehicle, be
careful not to allow water to get
into the air cleaner.
Difficulties in starting the engine
may result if this happens.
LEFT SIDE COVER
REAR MUDGUARD
REAR COMBINATION LIGHT
To Next Page
