After adjusting the brakes, check the wear
of the brake shoe. While tightly squeezing
the rear brake lever, if the “△” mark of
the brake arm is alined with the “△” mark
of the brake panel, this indicates that the
brake shoe is worn. Please take the vehicle
to a service center for repair.
1. Remove the screw rivet and take the
brake fluid maintenance lid off.
2. Clean dust and other foreign materials
around reserve tank to prevent foreign
materials from falling inside tank.
3. Remove the screws and take oil cup cap,
diaphragm plate, diaphragm off.
4. Replenish recommended brake oil to the
upper level inside reserve tank.
Recommended brake oil is
DOT 3 or DOT 4
5. Reinstall the diaphragm, diaphragm
plate, and oil cup cap.
6. Tighten the screws securely.
7. Install the brake fluid maintenance lid.
●Check the brake pads for wear when
refilling with brake fluid.
●A low fluid level may be due to wear of
the brake pads.
●If the brake pads are not worn and the
fluid level is low, check for leakage.
33

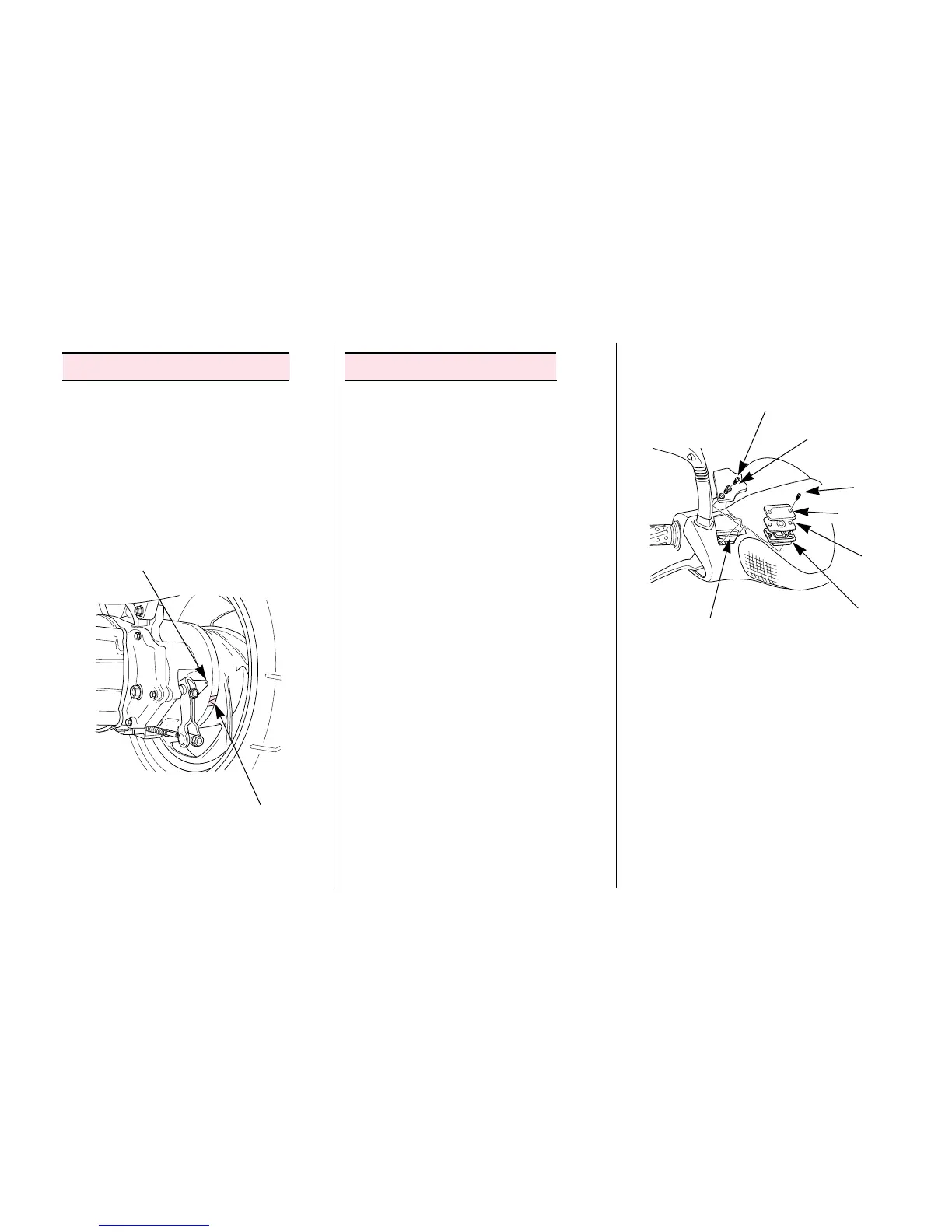

Rear Brake Shoe Inspection Replenishing Brake Fluid
“△”MARK
“△”MARK
RESERVE
TANK
SCREW RIVET
BRAKE FLUID
MAINTENANCE LID
SCREW
OIL CUP CAP
DIAPHRAGM
PLATE
DIAPHRAGM
To Next Page
