If electrode is stained or clearance is not
right, satisfactory spark is not produced.
Clean and make adjustment.
① Turn the seat lock switch to the right
using the main switch key.
② Remove the plug maintenance cover.
③ Remove the spark plug cap.
④ Clean around the plug.
⑤ Using a plug wrench, remove the plug.
⑥ Clean plug with plug cleaner.
⑦ Check electrode for wear and corro-
sion.
⑧
Check the plug gap using a feeler gauge.
Plug Gap : 0.8~0.9mm
⑨ Tighten with hands until the plug
washer touches cylinder head.
Standard plug: BR8HS
⑩ If new plug is installed, turn 1/2 and
tighten using a plug wrench.
If plug is reused, turn 1/3~1/4 and
tighten.
⑪ Install in the reverse order of removal.
41
Spark Plug
Caution
●If plug of different maker or different
heat value is used, it causes
unsatisfactory engine starting,
inadequate engine revolution and
output deterioration.
●The spark plug must be securely
tightened. An improperly tightened
plug can become very hot and
possibly damage the engine.

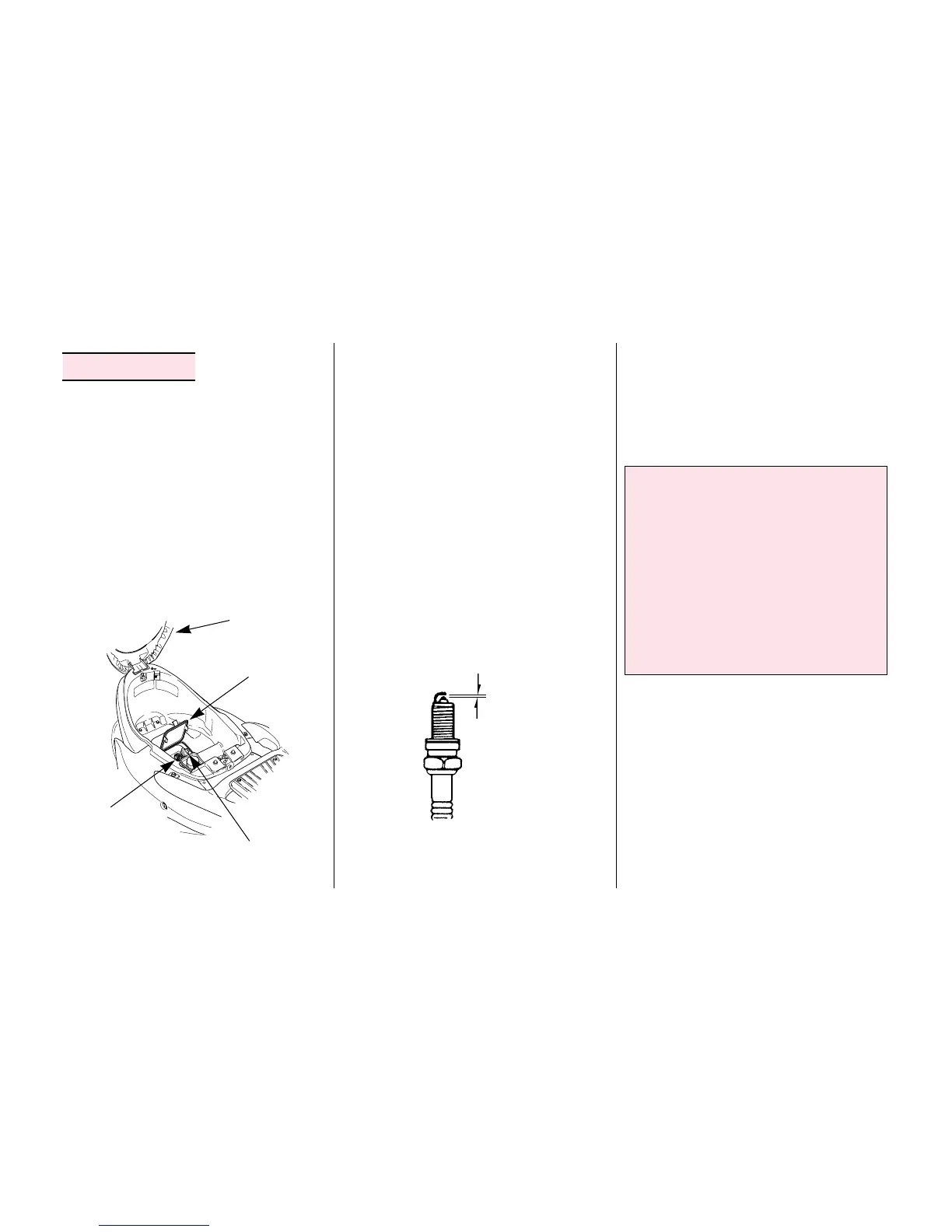

PLUG GAP
SEAT
PLUG MAINTENANCE
COVER
SPARK PLUG CAP
SPARK PLUG
