37

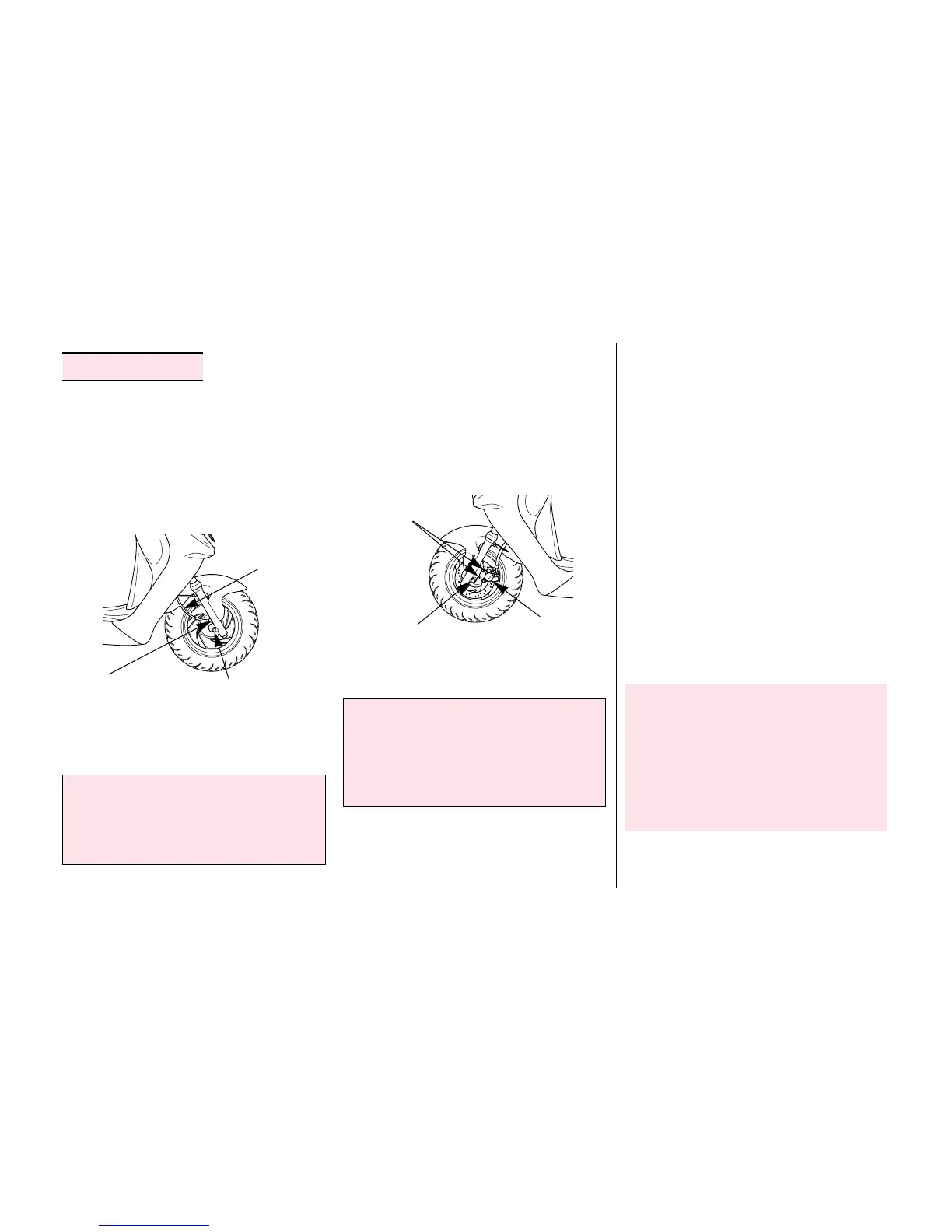

[Front Wheel Removal]
① Raise the front wheel off the ground by
placing a support block under the
engine.
② Loosen the oval screw and remove the
speedometer cable.
③ Remove the front caliper assembly
from the front fork by removing the
fixing bolts.
④ Loosen the axle nut.
⑤ Withdraw the front wheel axle and
remove the front wheel.
⑥ Install in the reverse order of removal.
Fit the caliper over the disc, taking care
not to damage the brake pads. Install the
caliper fixing bolts, and tighten to a
torque of : 2.7kgf
··
m
Tighten the front axle nut to the specified
torque.
Front axle nut torque : 5.0~7.0kgf
··
m
⑦ After assembling, operate brake for a
number of times and see if wheel is
turning smoothly without getting
interruption.
FRONT
CALIPER
AXLE NUT
Wheel Removal
Caution
●Do not operate brake lever after the
front wheel is removed. It will
make wheel assembling difficult.
Caution
●When installing the wheel, care-
fully fit the left brake disk between
the brake pads to avoid damaging
the pads.
Caution
●If a torque wrench was not used for
installation, see your authorized
dealer as soon as possible to verify
proper assembly.
Improper assembly may lead to loss
of braking capacity.
SPEEDOMETER
CABLE
OVAL SCREW
FRONT WHEEL AXLE
FIXING BOLT
To Next Page
