④ Pull the headlight socket and remove it.
⑤ Remove the rear cover.
⑥ Untie steel wire and remove the head light.
⑦ Replace with the new bulb.
<REPLACEMENT OF POSITION LAMP
(LED)>
① Untie 4 screws and remove the position dust cover.
② Untie 2 screws and remove the position lamp.
③ Remove the position lamp coupler and position
lamp(LED).
④ Replace with the new position lamp(LED).
⑤ Assemble in the reverse order of disassembly.
<THE ILLUMINATION ANGLE OF
HEAD LIGHT>
●
By adjusting the adjuster bolt of headlight, adjust its
illumination angle.
① By rotating screw, adjust it to up and down.
<REPLACEMENT OF REAR
COMBINATION LIGHT>
① Remove the luggage box.
② Remove the center cover.
③ Remove the rear combination light ass’y.
④ Replace with the new rear combination light ass’y.
⑤ Assemble in the reverse order of disassembly.

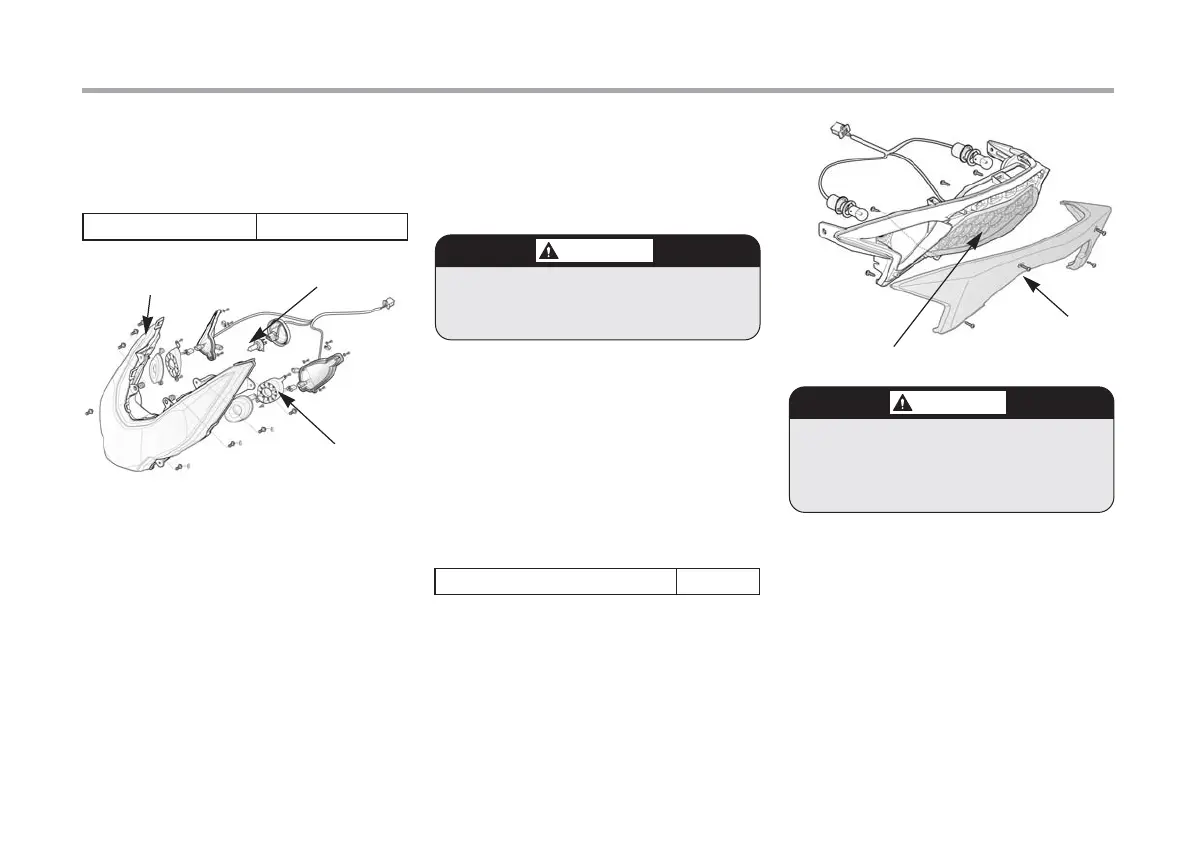

BULB
POSITION LAMP(LED)
HEAD LIGHT COVER
REAR COMBINATION LIGHT(LED) ASS’Y
TAIL LIGHT LENS
HEAD LIGHT BULB
60 / 55W, H4
REAR COMBINATION LIGHT LED
26 LED
CAUTION
●
Illumination angle adjusted incorrectly
may dazzle a facing driver’s eyes or
result in difficulty to show the forward.
CAUTION
●
At disassembly, be sure not to damage
the lens of tail light.
●
At replacing the lens of tail light,
assemble correctly the lens seal.
