DAELIM Q2 User Manual

42
WARNING
●
Infiltration of the foreign materials or
water caused by damage of rubber
boots (disengagement, tearing, etc.)
may cause freezing in winter season
resulting in faulty operation. It may
lead death or serious injury by
decreasing of sudden acceleration and
braking force due to engine rpm.
●
If any damage is found, replace with
the new on immediately.

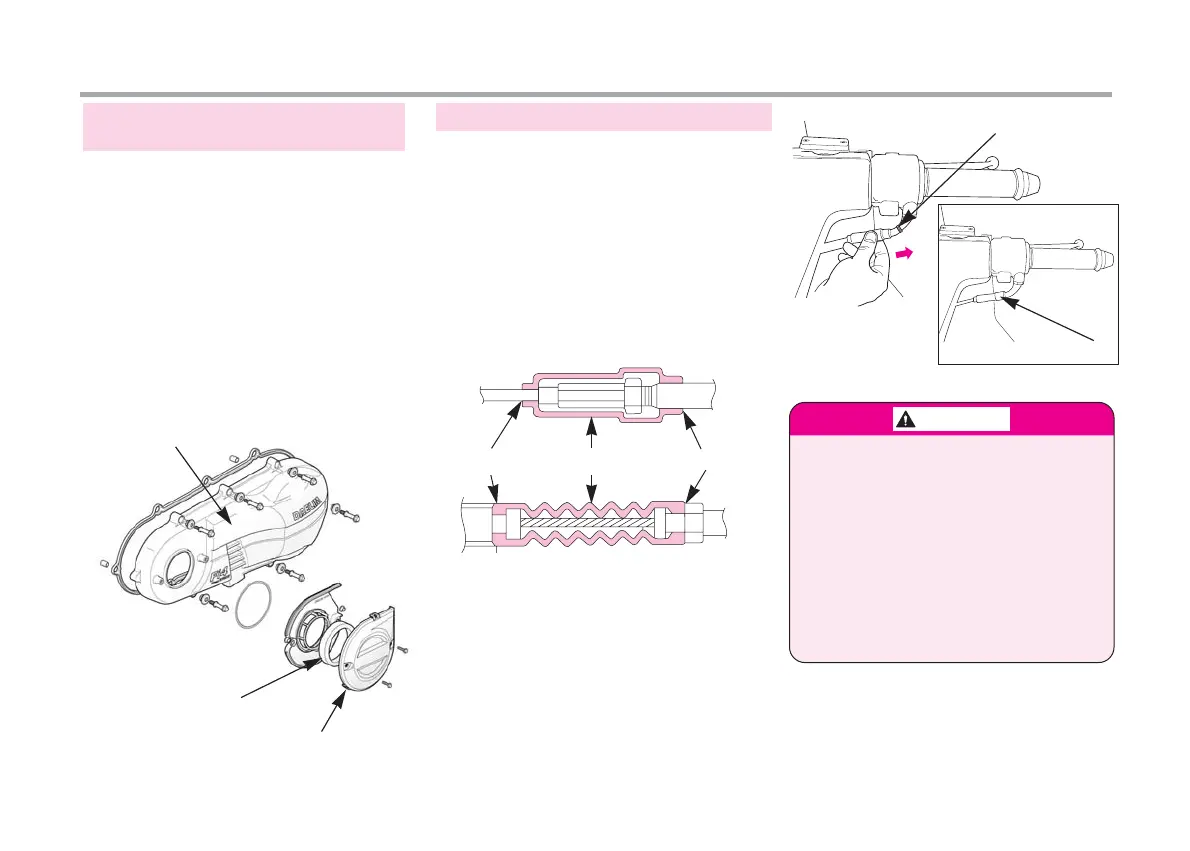

<DISASSEMBLY>
① Untie 2 bolts in LH. Crank Case Cover
and disassemble CVT DUST COVER
ASS’Y.
② Disassemble CVT DUST UPPER
COVER, ELEMENT and check.
③ If the Element gets dirty because of
dirt, alien material, clean it.
④Assemble in the reverse order of
disassembly.
A rubber boots is assembled on the cable
to protect the inner cable.
Make sure that this part is placed firmly
around the correct part of the cable.
When washing the vehicle, do not
directly spray water on to the rubber
boots or scrub it with brush. Use a dry
cloth to clean this area.
Check the installing condition of rubber
boots daily. After adjusting the free play
of throttle grip, never forget to place the
rubber boots to the original position.
CABLE RUBBER PART INSPECTION
RUBBER
NORMAL
LOCK NUT
CVT DUST COVER ELEMENT
INSPECTION, CLEANING
LH. CRANK CASE COVER
CVT DUST UPPER COVER
CVT DUST COVER ELEMENT
INSPECTION PART INSPECTION PART
RUBBER
