DAELIM Q2 User Manual

61

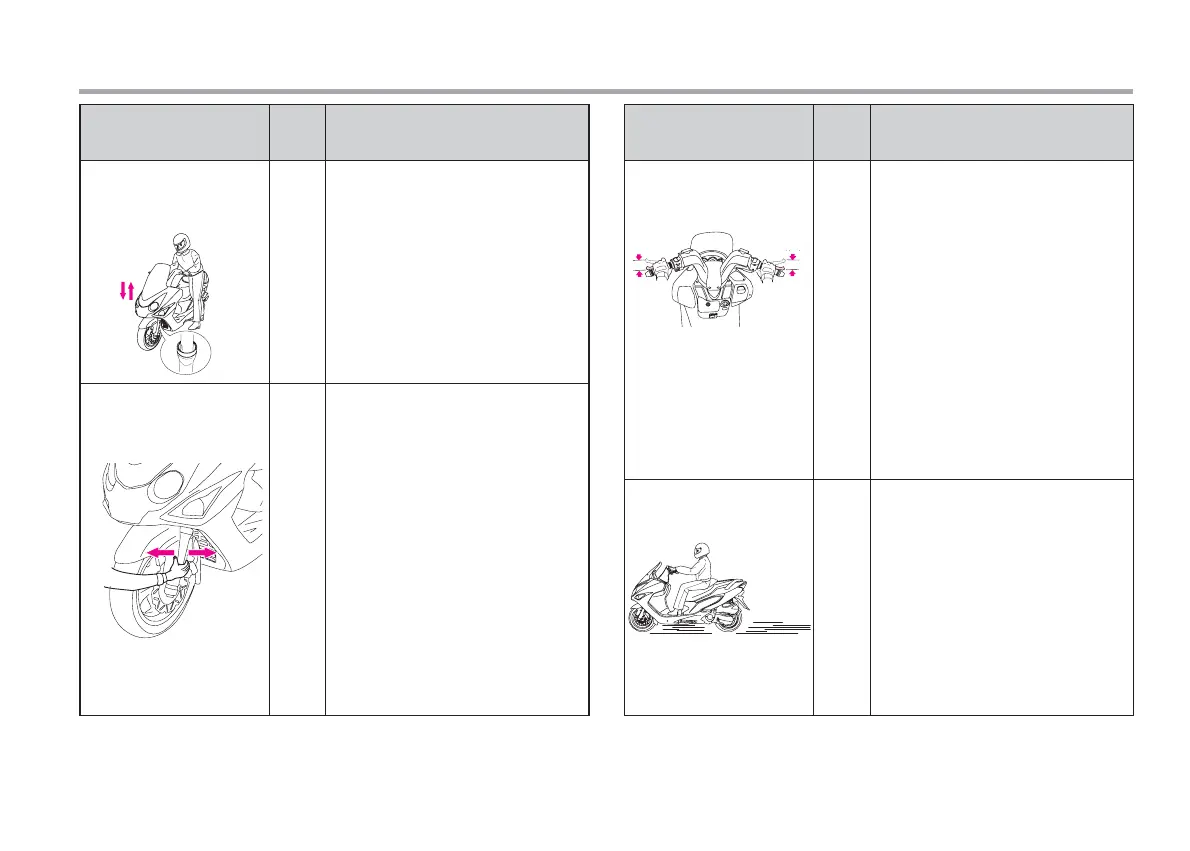

Checking points
Checking
timing
Detail checking contents
(1) Pull enough the brake lever by
hand and check whether the free
play is within the designated range
or not. Also, when pulling the
brake lever, check the softness and
whether air inflows by mixing.
(Free play of brake lever : 10~20mm)
BRAKE LEVER
6 Mon.
(4,000km)
(1) Drive on the dry road and operates
front brake, rear brake separately,
then check whether these two
brake works well or not.
or, by using the brake tester, check
whether the braking power is
within the designated range or not.
2. Status of brake
performance
6 Mon.
(4,000km)
S
E
A
T
Checking points
Checking
timing
Detail checking contents
(1) Check by eye whether there is
damage in front fork.
(2) Check whether there is oil leakage,
twist of front fork, abnormal noise
by operating the front fork.
FRONT FORK
12Mon.
(8,000km)
(1) Erect the main stand, lift up the
wheel and move the lower side of
front fork by hand to check
whether bearings clattered or not.
or, on the condition of operating
front brake, moves steering handle
to the left and right to check
whether the bearings clattered.
If necessary, disassemble steering
stem and check whether there is
abrasion, crack, twisted, etc.
2. Status of steering stem’s
bearing
12Mon.
(8,000km)
1. Damage
1. Free play
FREE PLAY
FREE PLAY
