DAELIM Q2 User Manual

64

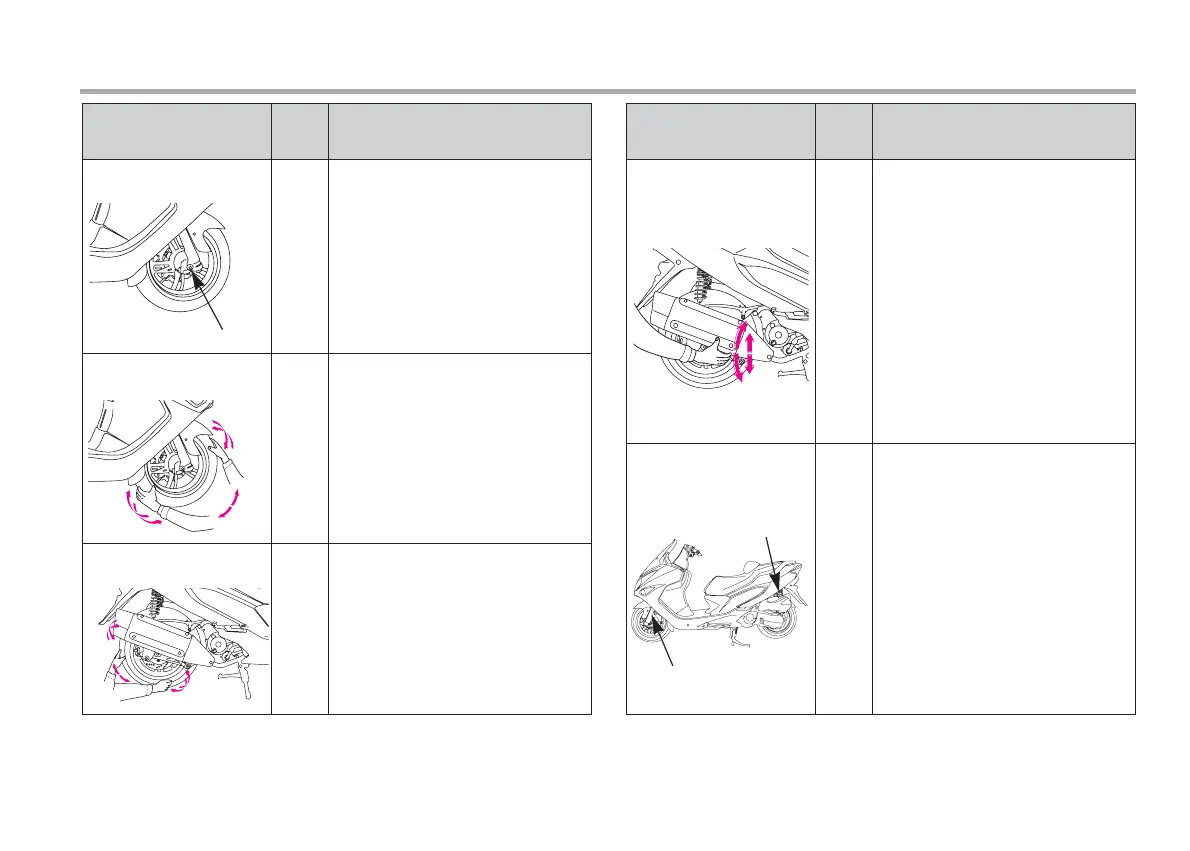

Checking points
Checking
timing
Detail checking contents
(1) Check whether assembly of nut
assembled between axle shaft and
axle holder gets loose or not by
spanner.
2. Wheel bolt, nut
6 Mon.
(4,000km)
(1) At erecting the main stand, by getting
the front wheel fork not moved and
moving the tire by grasping its both
sides, check whether the front wheel
bearing are rattled or not.
(2) When, by lifting the wheel, grasp and
turn it, check whether the wheel
rotates smoothly and whether there is
not abnormal noise.
3. Status of front wheel
bearing
12Mon.
(8,000km)
(1) At erecting the main stand and
grasp the both sides of tire by hand,
check whether the rear wheel
bearing get rattled or not.
(2) When, by lifting the wheel, grasp
and turn it, check whether the wheel
rotates smoothly and whether there
is not abnormal noise.
4. Status of rear wheel
bearing
12Mon.
(8,000km)
MARK
Checking points
Checking
timing
Detail checking contents
(1) Check by hands whether the
assembled points like swing arm,
engine hanger link get rattled or
not.
(2) Check by eye whether there is any
damage on swing arm.
also, check whether the fixing
bolts of swing arm, engine hanger
link get rattled or not, by spanner
SWING ARM
12Mon.
(8,000km)
(1) Check by eye whether there is oil
leakage in front cushion and rear
cushion and damage.
CUSHION
12Mon.
(8,000km)
Front cushion
Rear cushion
1. Status of assembled
points and damage of
swing arm
1. Damage, oil leaking
