3) Rotating the crankshaft by one revolution, #6
cylinder become the compression state of top
dead center.
4) Thereafter adjust the valve clearances
corresponding to “
” of lower figure.
5) After reinsuring the valve clearances,
retighten if necessary.
z No. 1 cylinder is located at the side where
flywheel was installed.
2.1.9. Cylinder compression pressure
z Stop the engine after warming up,
and
take out nozzle holder assembly.
G1067
G1048
Flywheel

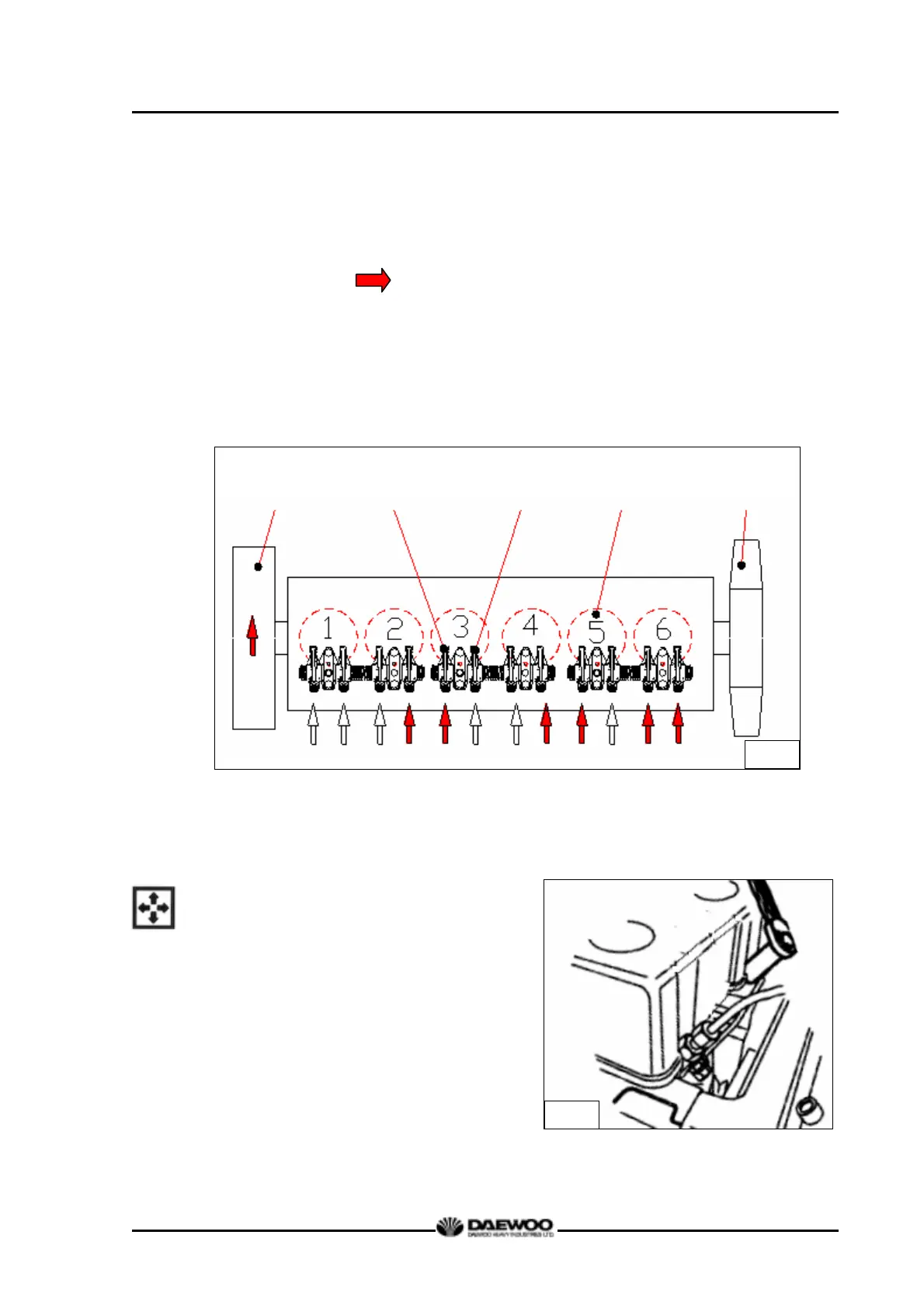

Intake Valve Exhaust Valve Cylinder No. Cooling Fan
To Next Page
