D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
19
Printed in Jan. 2001 PS-MMA0415-E1A

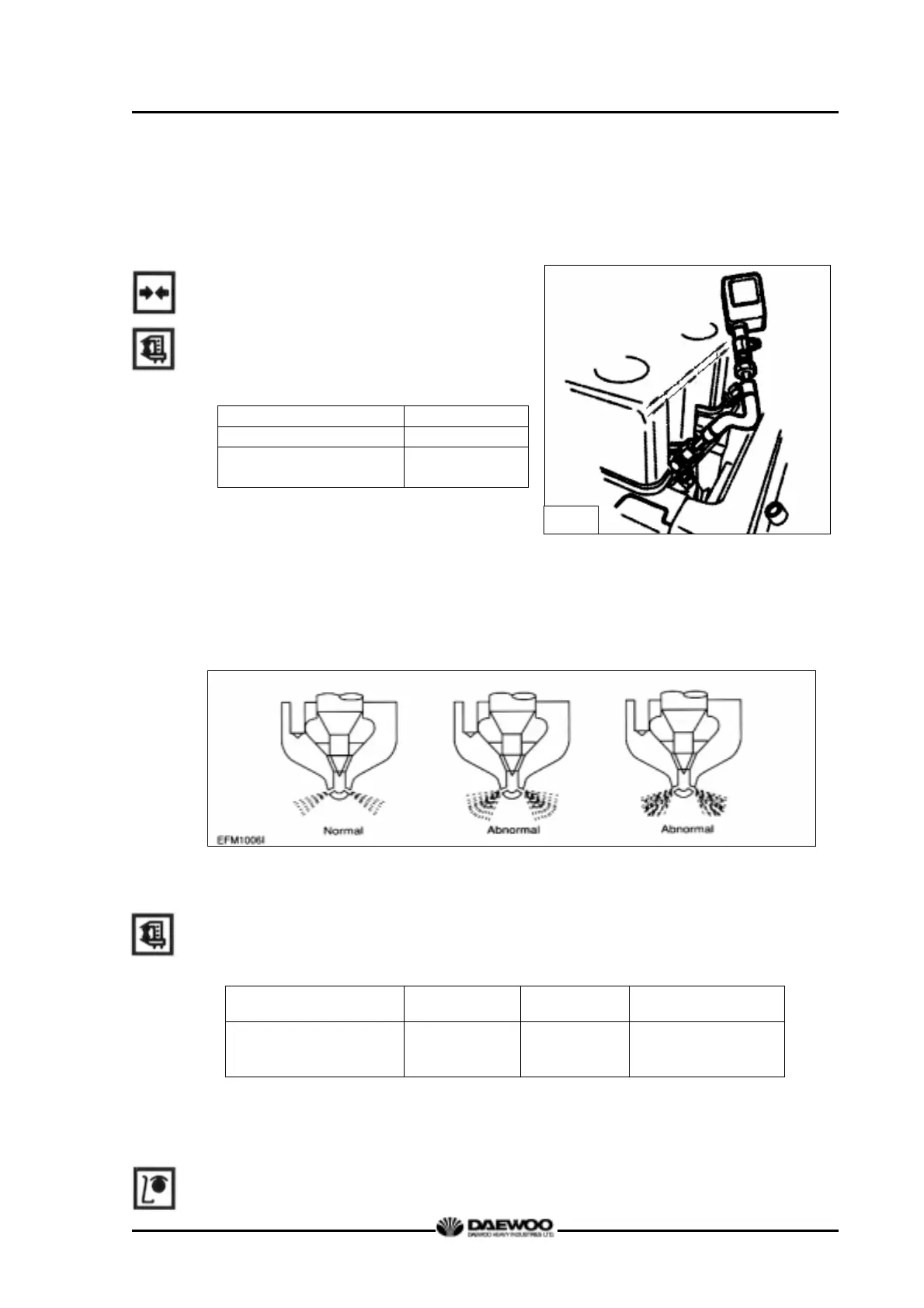

z Install the special tool (compression
gauge adapter) at the nozzle holder
hole, and connect the compression
pressure gauge there.
Standard value 28kg/cm
2
over
Limit value 24kg/cm
2
Difference
between each cylinder
Within ± 10 %
♦ Condition : Water temperature 20°C,
Engine rotation 200rpm (10 rotations)
2.1.10. Injection nozzle
z Install a nozzle on the nozzle tester.
z If the inspected injection pressure is less than the specified value, adjust using
the adjusting shims.
Engine Model D1146 D1146TI DE08TIS
Opening pressure
210 kg/cm
2
214 kg/cm
2
1st : 160 kg/cm
2
2nd : 220 kg/cm
2
z Check the atomizing state and replace it if abnormal.
2.1.11. Fuel injection pump
z Check the housing crack, damage etc. and replace it if abnormal.
G1068
