D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
40
Printed in Jan. 2001 PS-MMA0415-E1A
CAUTION :
When reassembling the bush, cool the
bush in dry ice and press the bush
while aligning the bush with the oil
hole of the rocker arm.

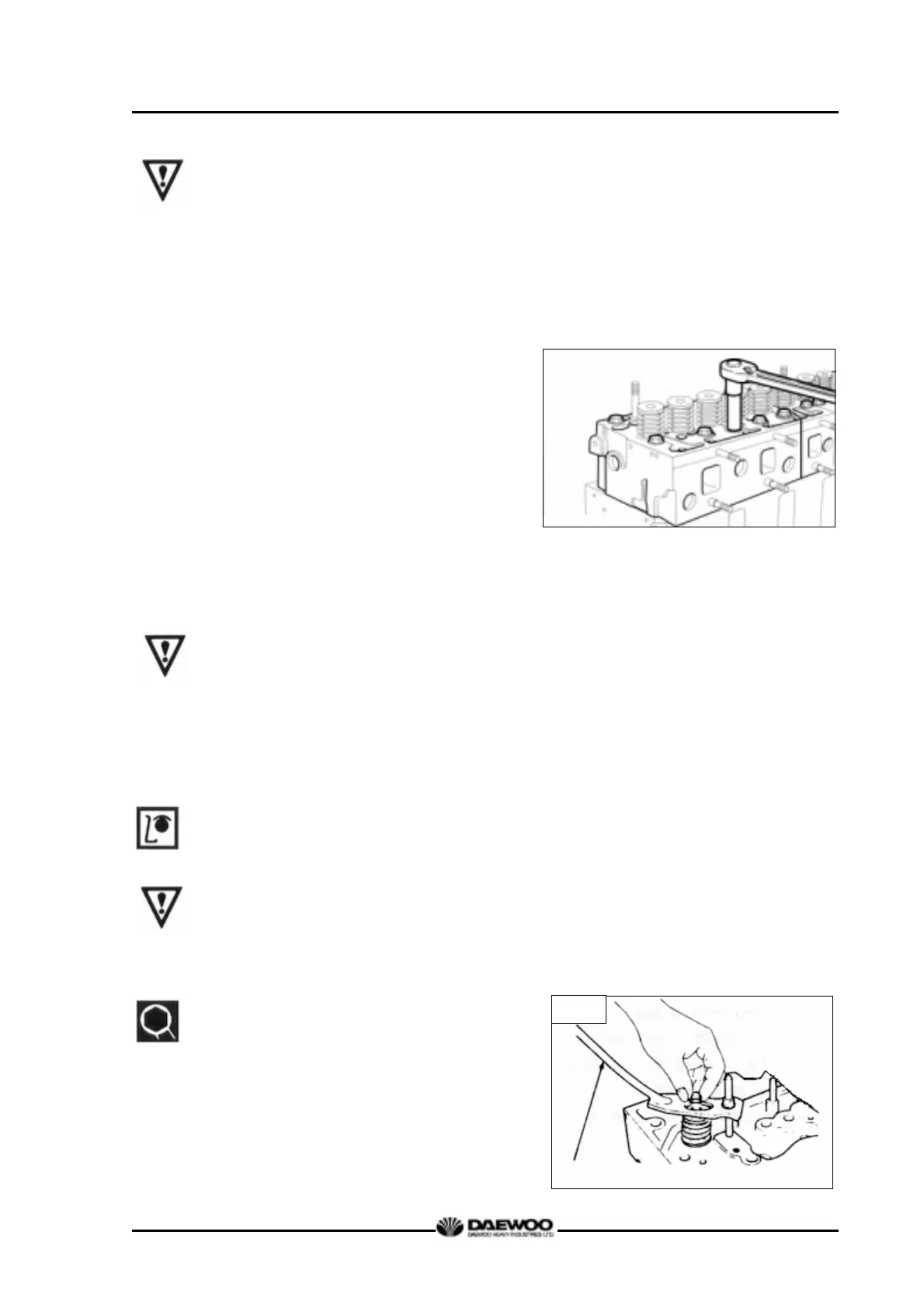

3.1.26. Cylinder head
z Remove the cylinder head bolts in the
reverse order of tightening but remove it
step by step.
First step : Loosen 1 ～2 threads
Second step : Remove by loosening fully.
However, remove the total bolts
simultaneously by the step of 1 and 2.
z Lay the removed bolts orderly not to
damage the threads at all and store.
CAUTION :
Prevent a collision between the bolt
thread each other.
z Take out the cylinder head gasket and
scrap it.
z Remove the foreign residues from the
cylinder head surface and block surface.
CAUTION :
Try not to make any damage on the
contact surfaces.
z Disassembly of cylinder head
- Place the cylinder head on a individual
shelf.
- As pressing the valve spring with a
special tool, remove the cotter pin,
valve spring.
- Take out the intake and exhaust valves.
G1089
G1102
Compress the spring
