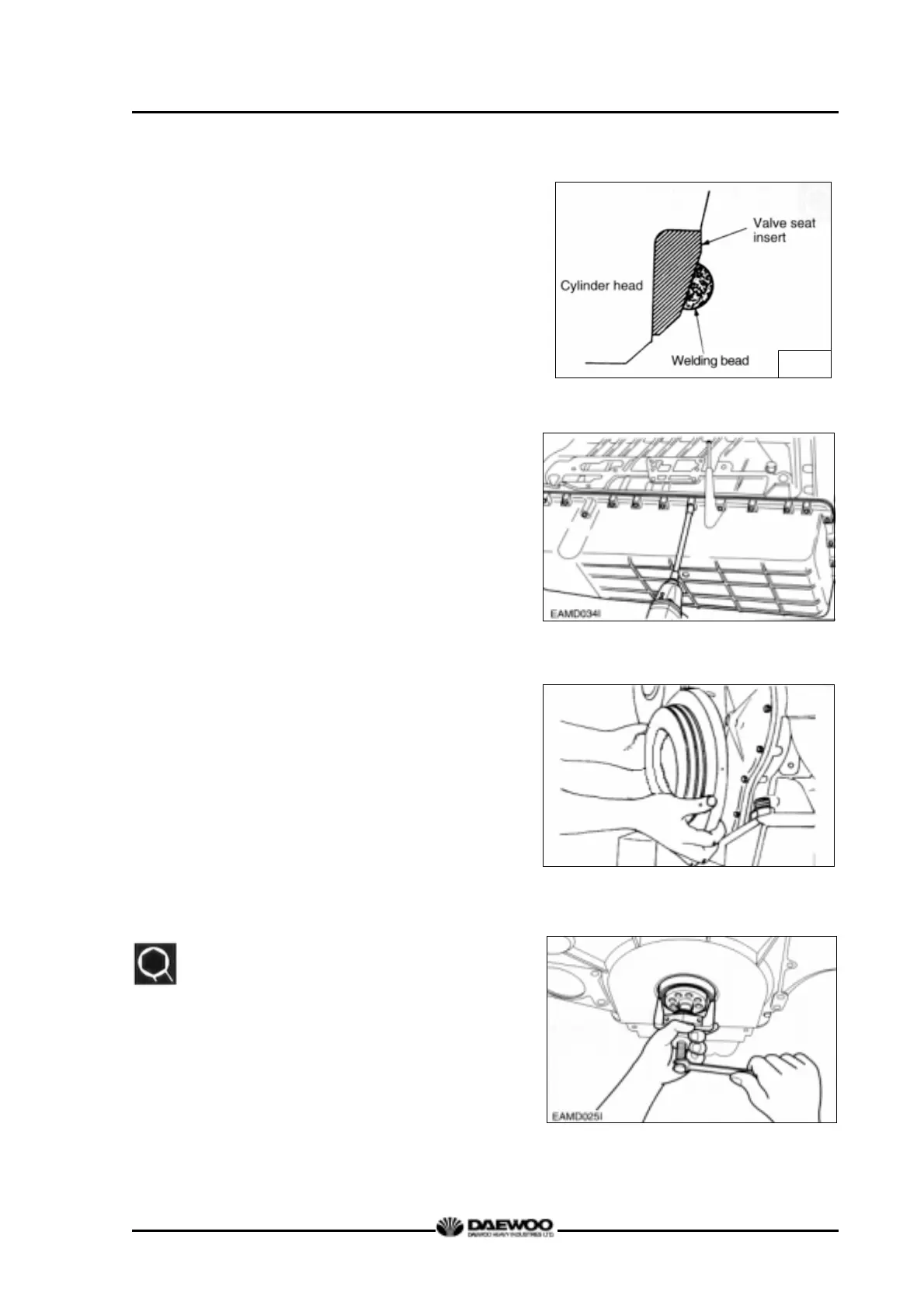

- For removal of the valve seat, apply arc
welding work to two points of valve seat
insert, and pull out the valve seat insert
with inner extractor.
3.1.27. Oil pan
z Unscrew the oil pan fixing bolts and
remove the oil pan.
z Remove the oil pan gasket and discard it.
3.1.28. Vibration damper
z Unscrew the vibration damper fixing
bolts in reverse sequence of installing
sequence and remove the vibration
damper assembly.
3.1.29. Timing gear case cover
z Disassemble the oil seal using an oil seal
removing jig.
z Remove the cover fixing bolts and
disassemble the cover from the timing
gear case.
